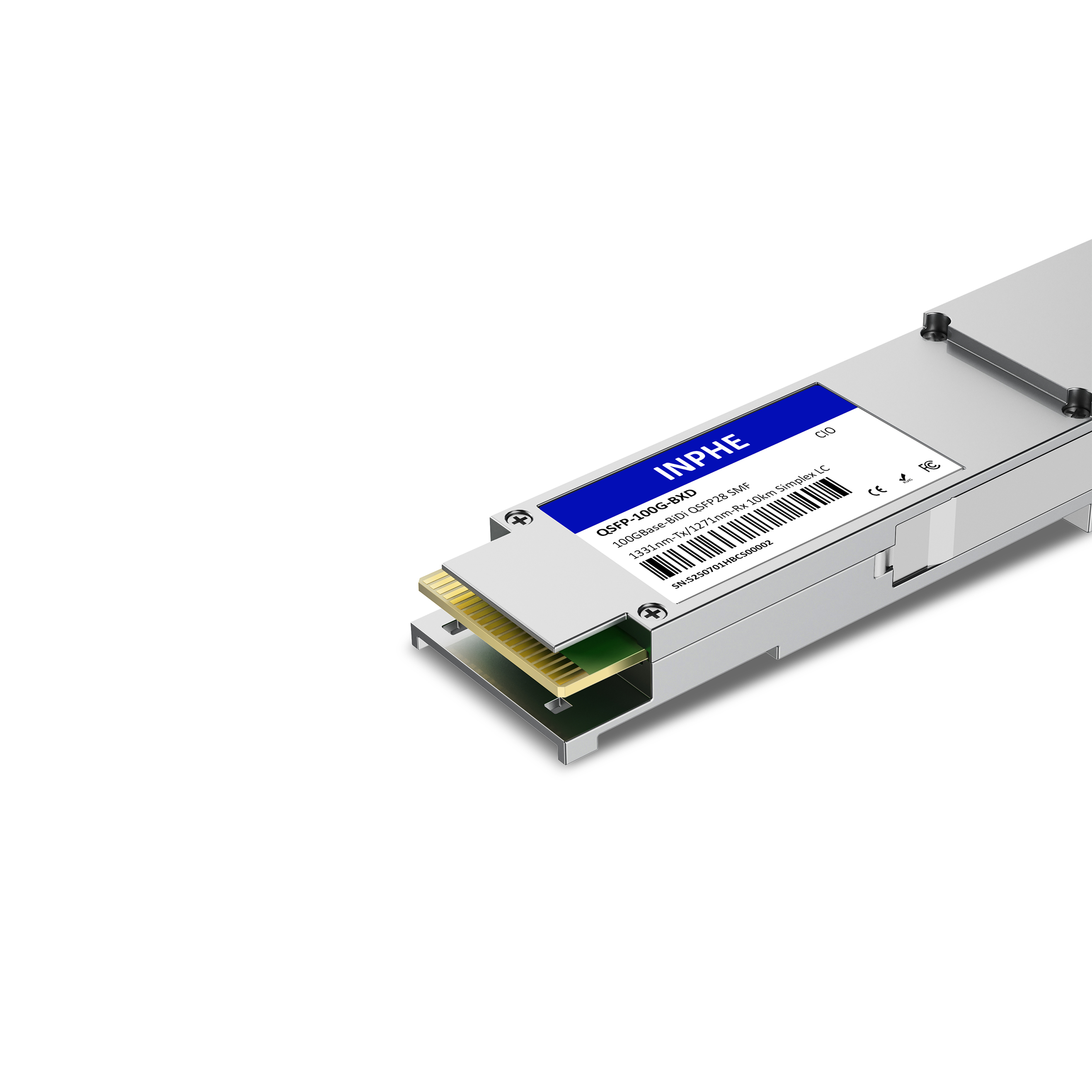

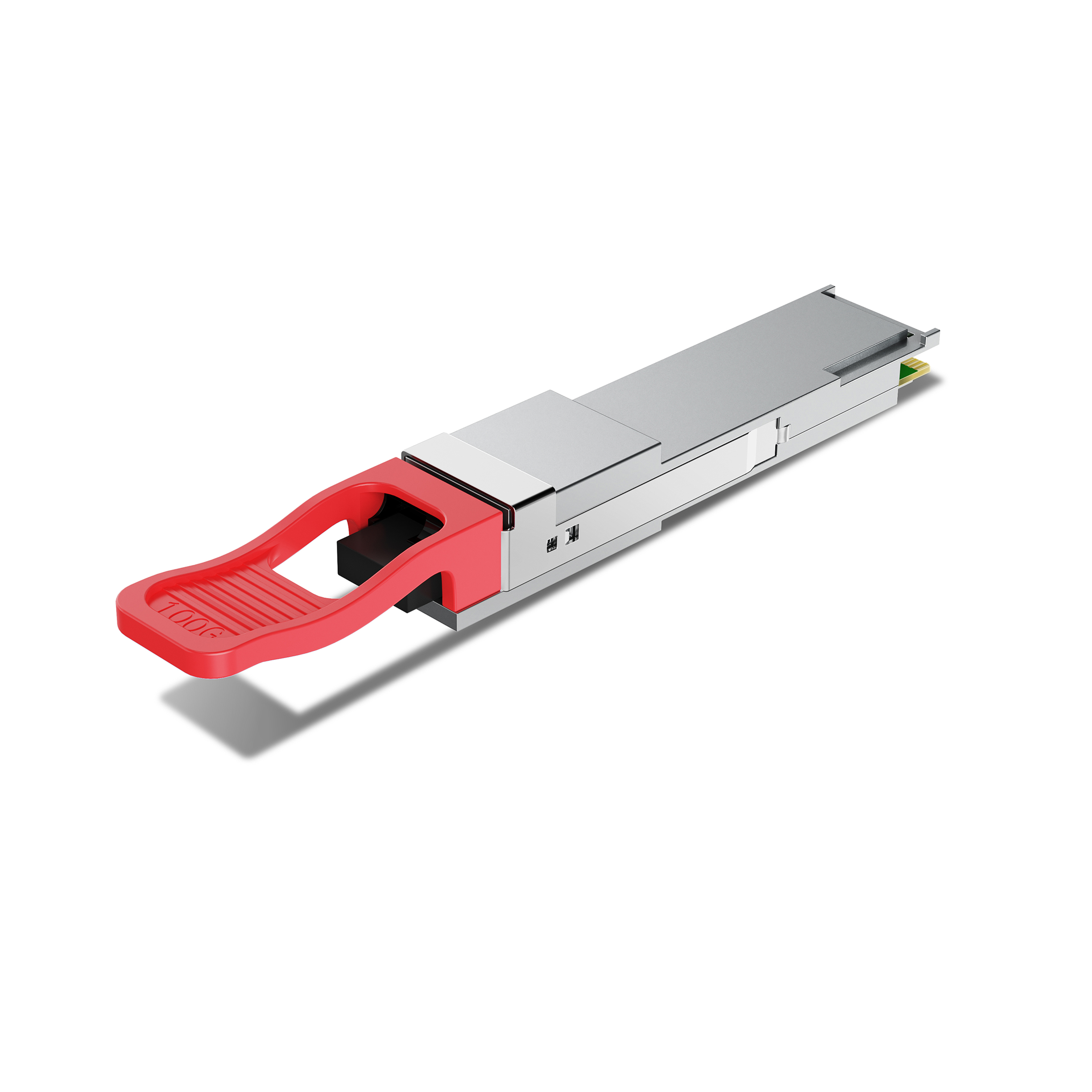

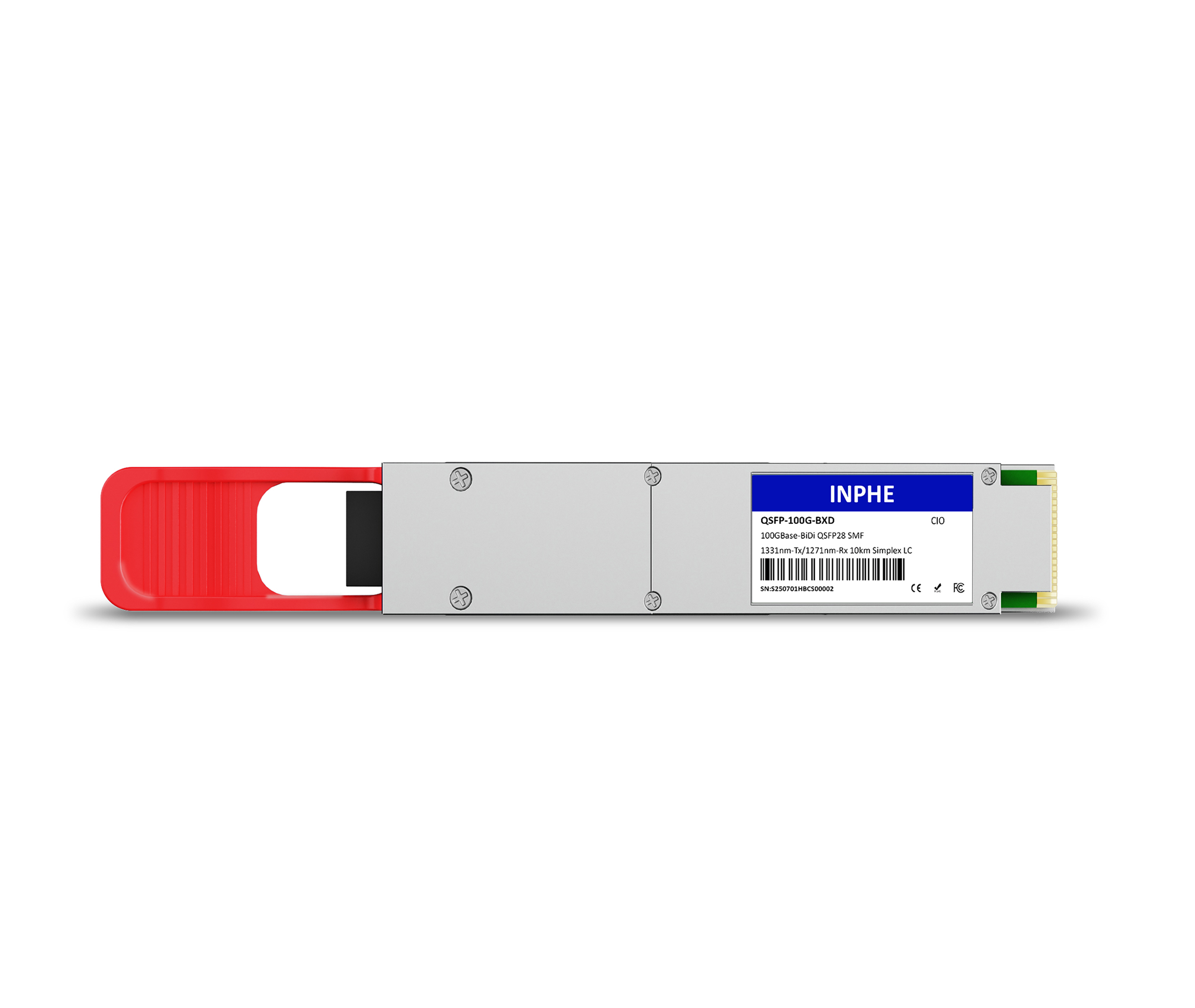

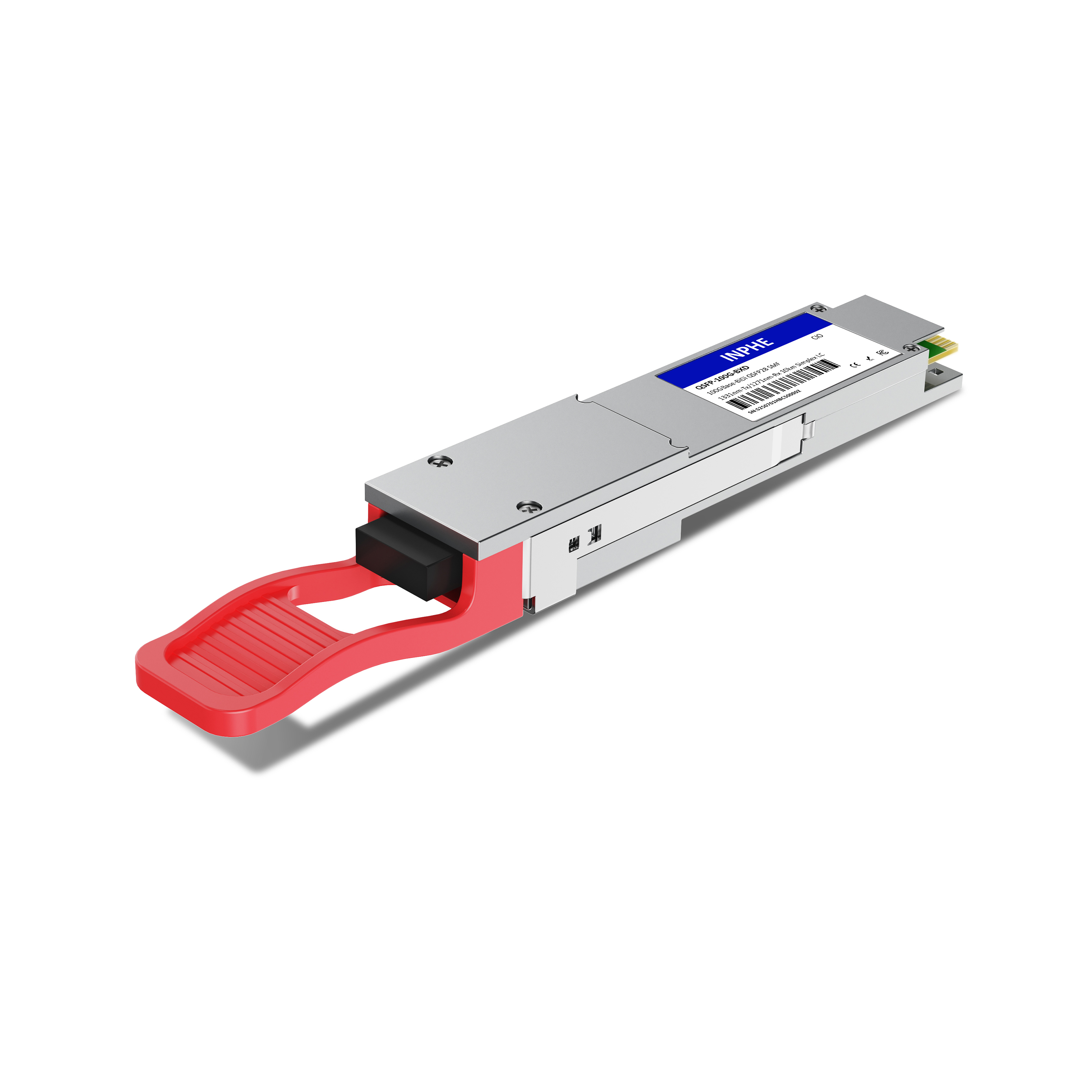

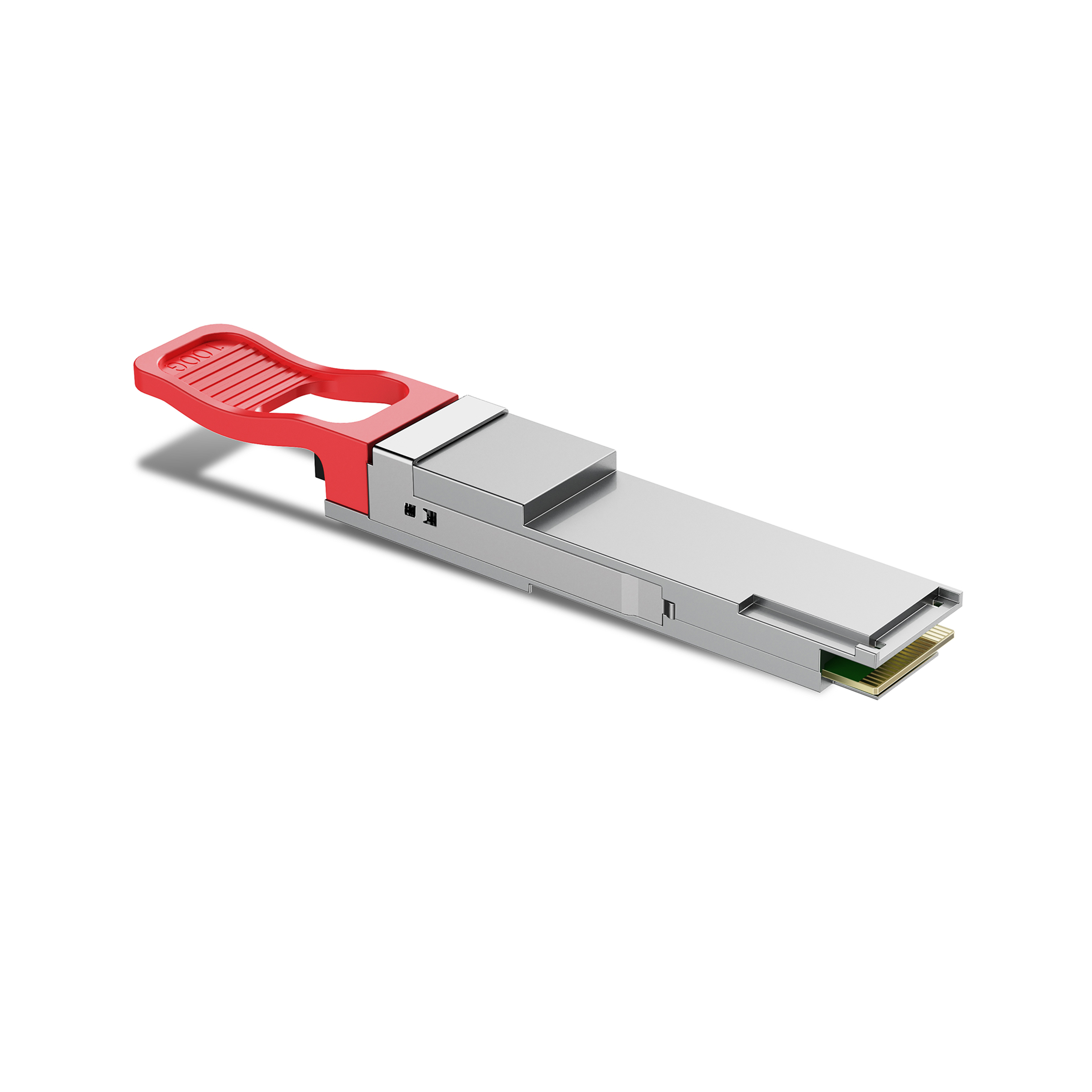

UfiSpace Compatible QSFP28 100G BiDi 1331nm-Tx/1271nm-Rx 10km SMF Simplex LC DDM/DOM Optics Transceiver

Name: UfiSpace Compatible QSFP28 100G BiDi 1331nm-Tx/1271nm-Rx 10km SMF Simplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 707003301215
Price: 399 USD
Availability: InStock

#707003301215

US$399.00

INPHE: QSFP-100G-BXD

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista Nokia Huawei Dell FS.COM Flexoptix Precision Coherent (Finisar) Fortinet More +

Compatible Models:

QSFP-100G-BXD Customized

QTY:

Specifications

The UfiSpace compatible QSFP28 100G-BXD Optics is specifically designed for long-distance (10km) single-mode singe-fiber links.

The Tx of INPHE's 100G-BXD uses EML (External Modulation Laser); the Rx uses PIN. While ensuring excellent performance, it also guarantees high stability.

Operating at a wavelength of Tx 1331nm/Rx 1271nm and employing a Singe LC/UPC single-mode connector, it provides point-to-point connectivity over link distances of up to 10km (OS2 SMF fiber).

100G LR1 BiDi 10km optics utilize a single strand of single-mode fiber, enabling users to achieve double the bandwidth while utilizing the same quantity of dark fiber. This helps telecommunications operators(ISP) and data center users realize significant savings on dark fiber costs and simplifies cabling infrastructure.

It supports DDM/DOM (Digital Optical Monitoring).

Vendor Name	INPHE	Part Number	QSFP-100G-BXD
Form Factor	QSFP28	Max Data Rate	106.25Gb/s
Wavelength	1331nm-Tx/1271nm-Rx	Max Distance	10km
Connector	Simplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-1.4 ~ +4.5dBm	Receiver Sensitivity	< -6.1dBm
Protocols	QSFP28 MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
