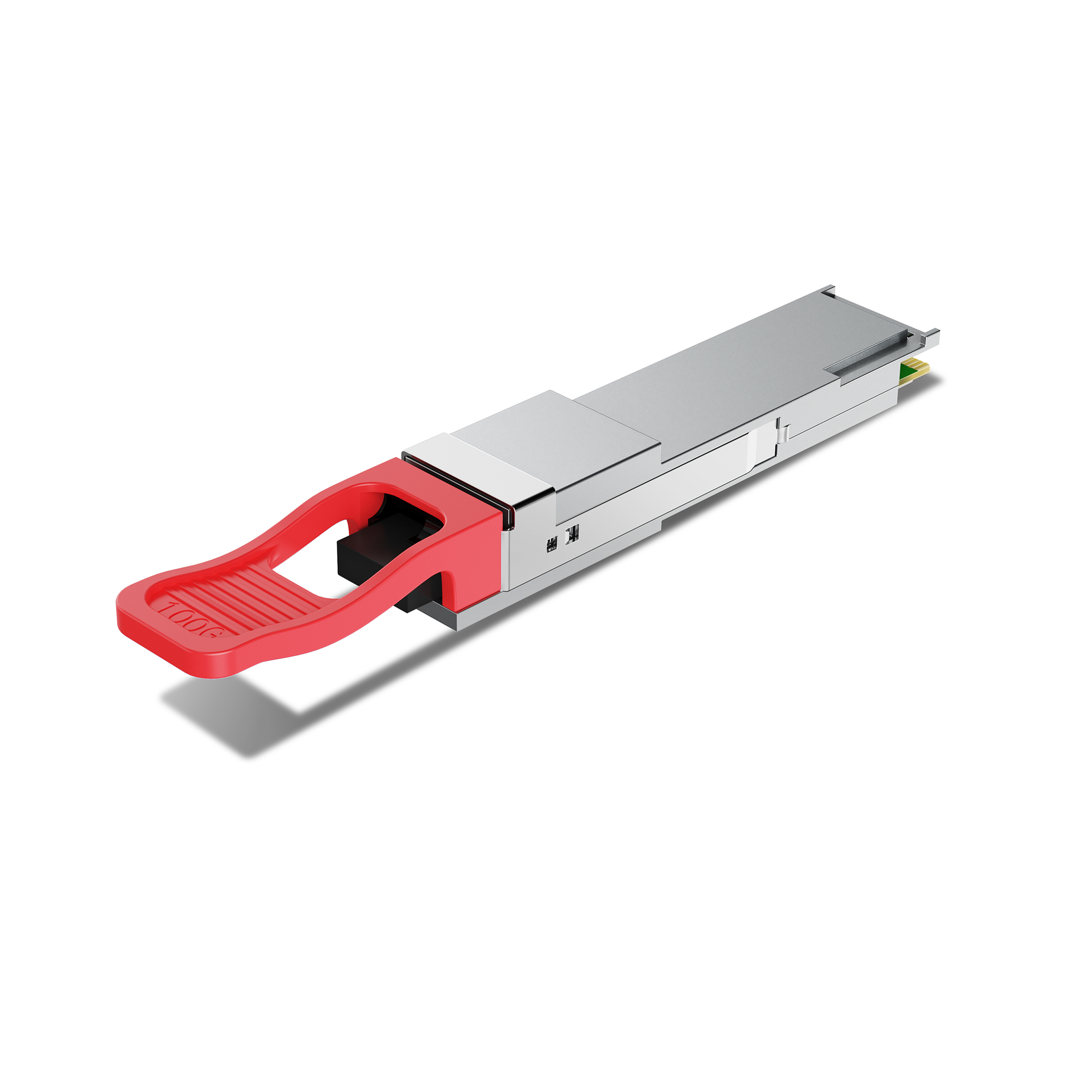

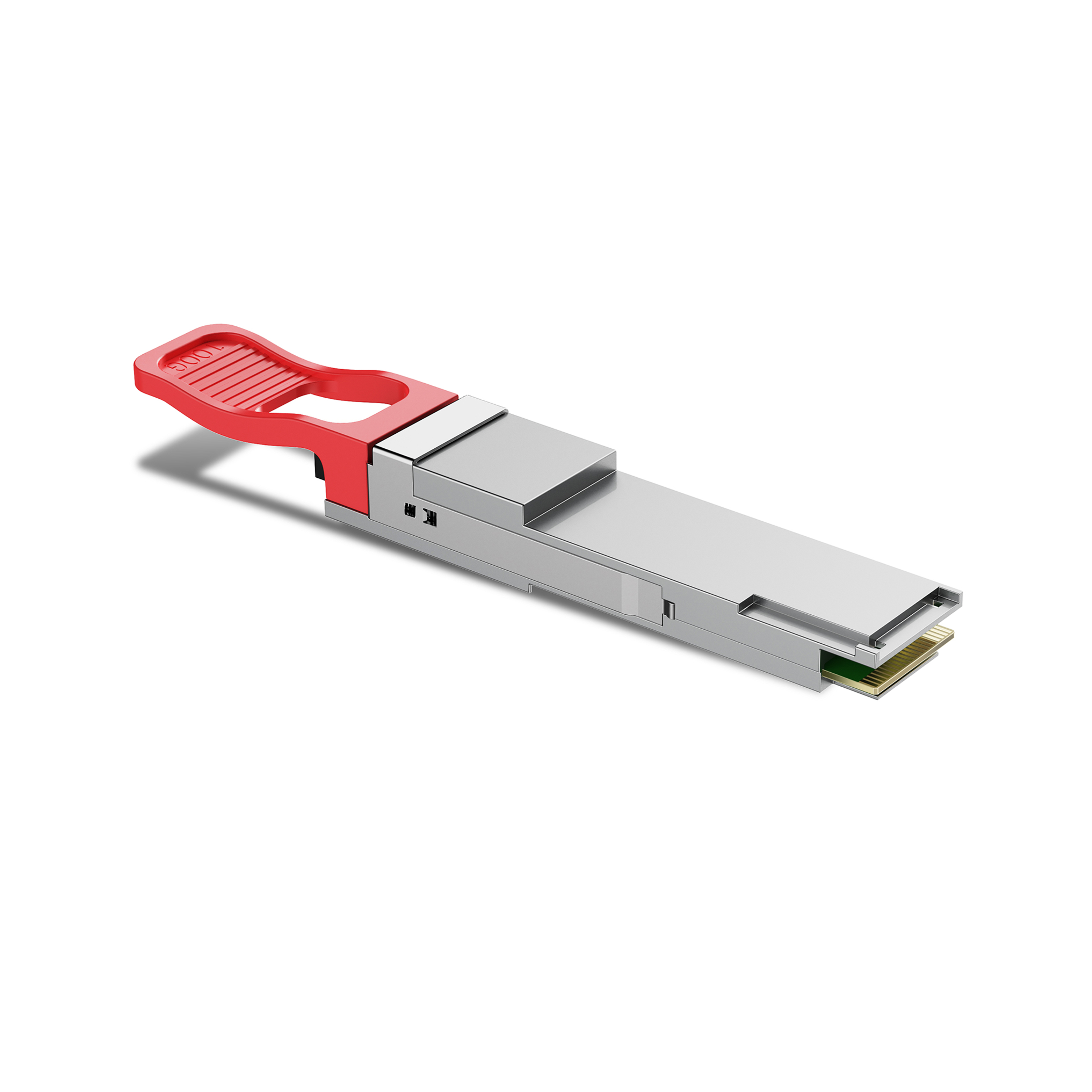

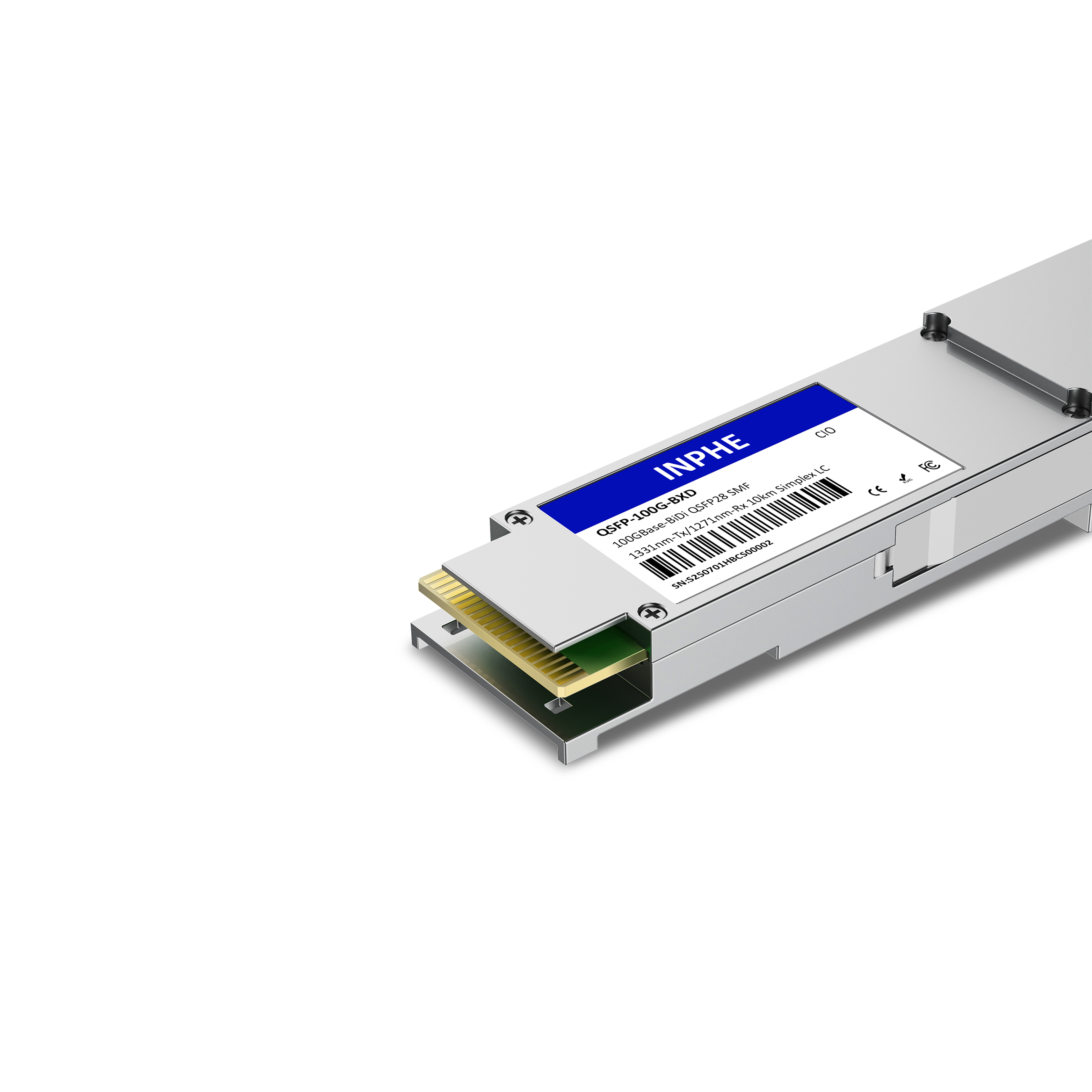

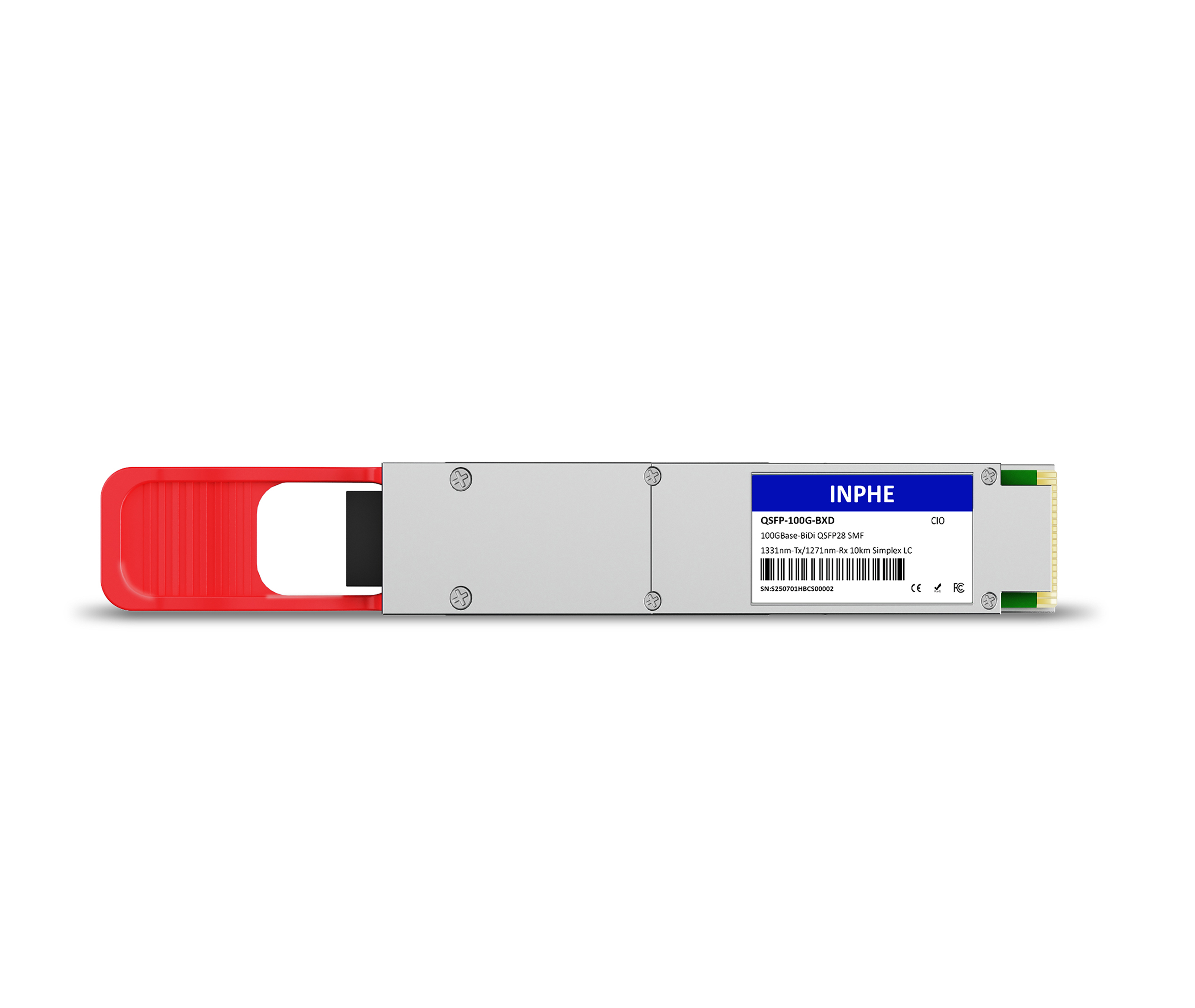

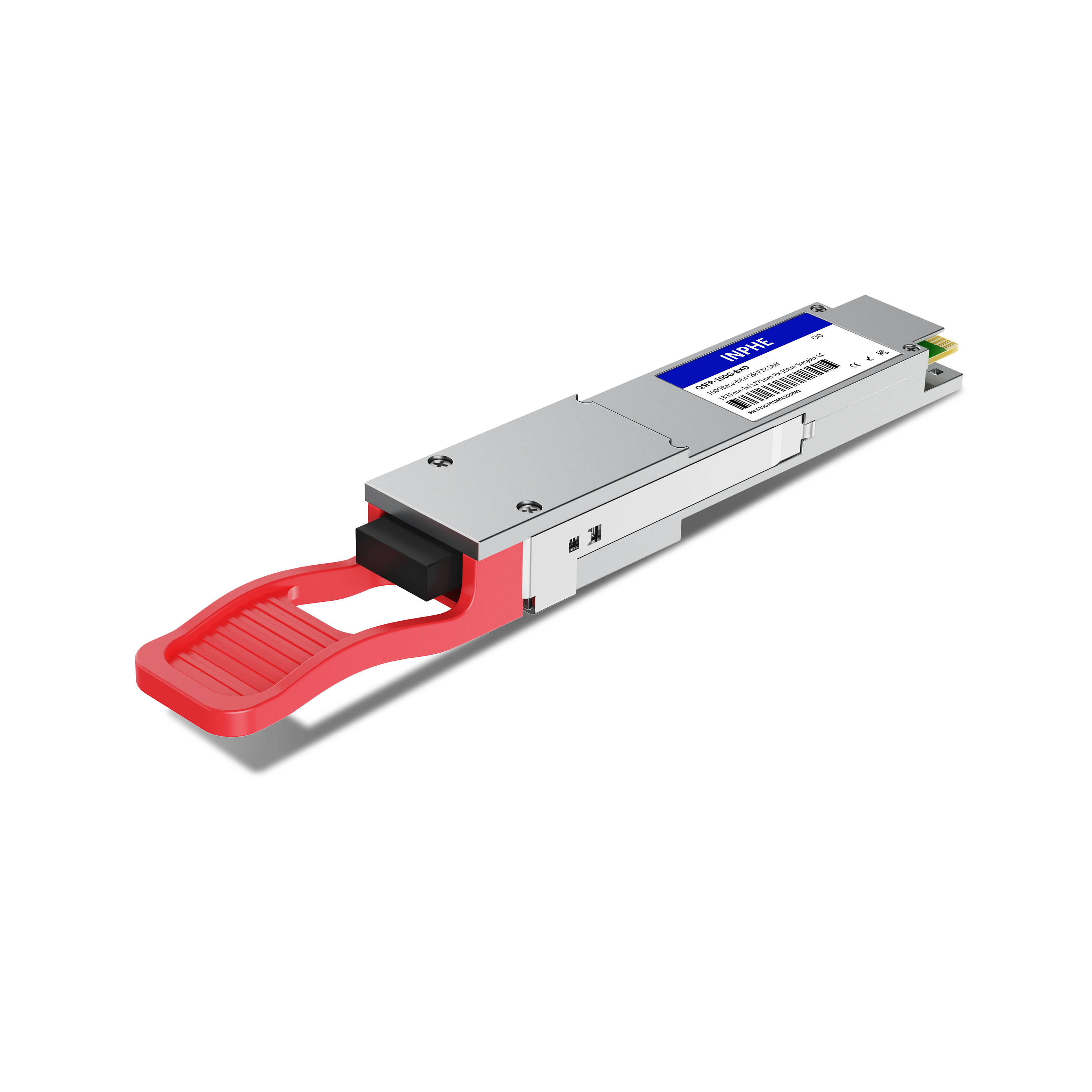

Huawei 02314REF OSN010B01 Compatible QSFP28 100G BiDi 1331nm-Tx/1271nm-Rx 10km SMF Simplex LC With Dual CDR DDM/DOM Optics Transceiver

Name: Huawei 02314REF OSN010B01 Compatible QSFP28 100G BiDi 1331nm-Tx/1271nm-Rx 10km SMF Simplex LC With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 707003302056
Price: 299 USD
Availability: InStock

#707003302056

US$299.00

INPHE: 02314REF

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista FS.COM Precision Palo Alto Networks Nokia Huawei Fortinet Dell ADVA More +

Compatible Models:

02314REF

10km_BiDi_LR4 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-100G-BXD
Form Factor	QSFP28	Max Data Rate	106.25Gb/s
Wavelength	1331nm-Tx/1271nm-Rx	Max Distance	10km
Connector	Simplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-1.4 ~ +4.5dBm	Receiver Sensitivity	< -6.1dBm
Protocols	QSFP28 MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
