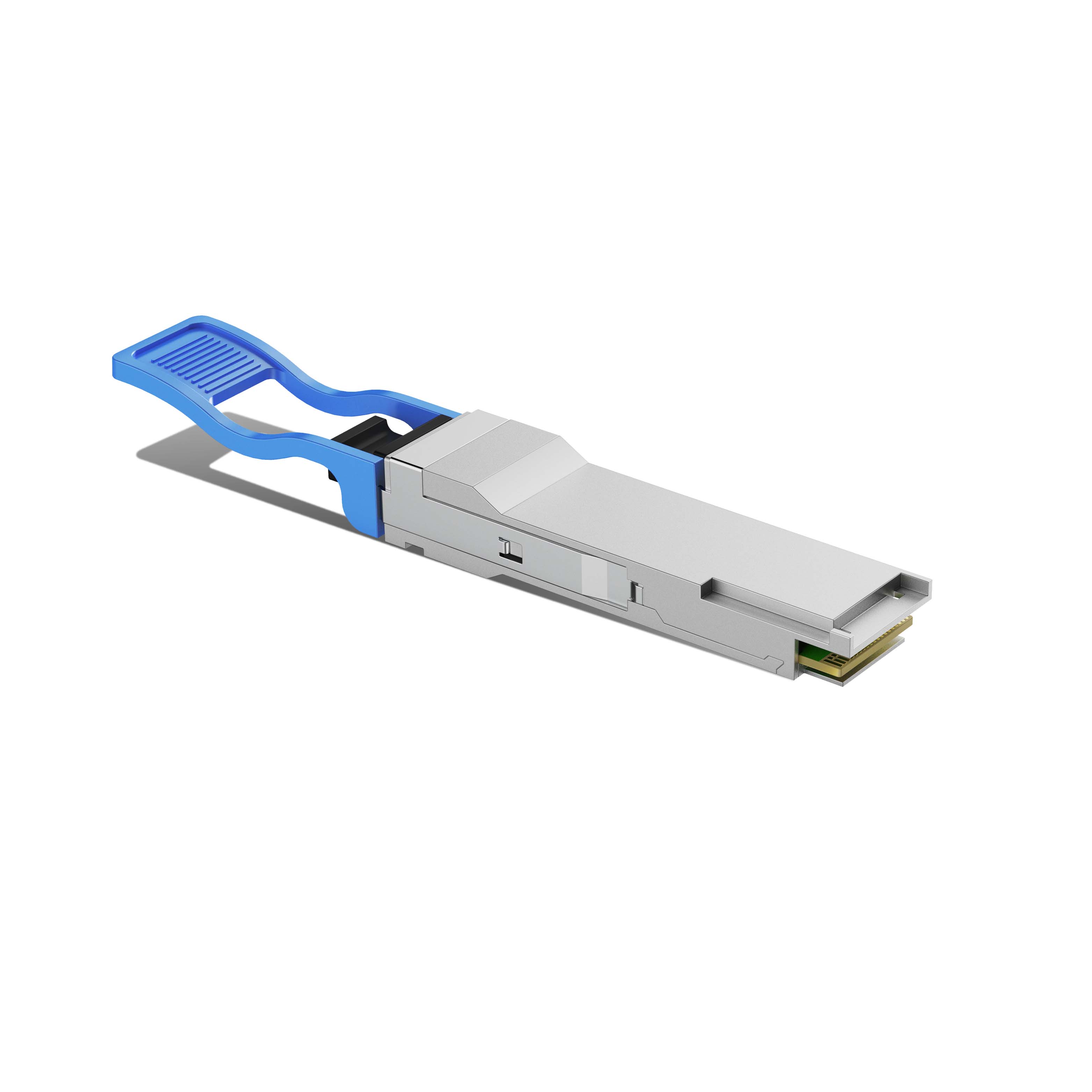

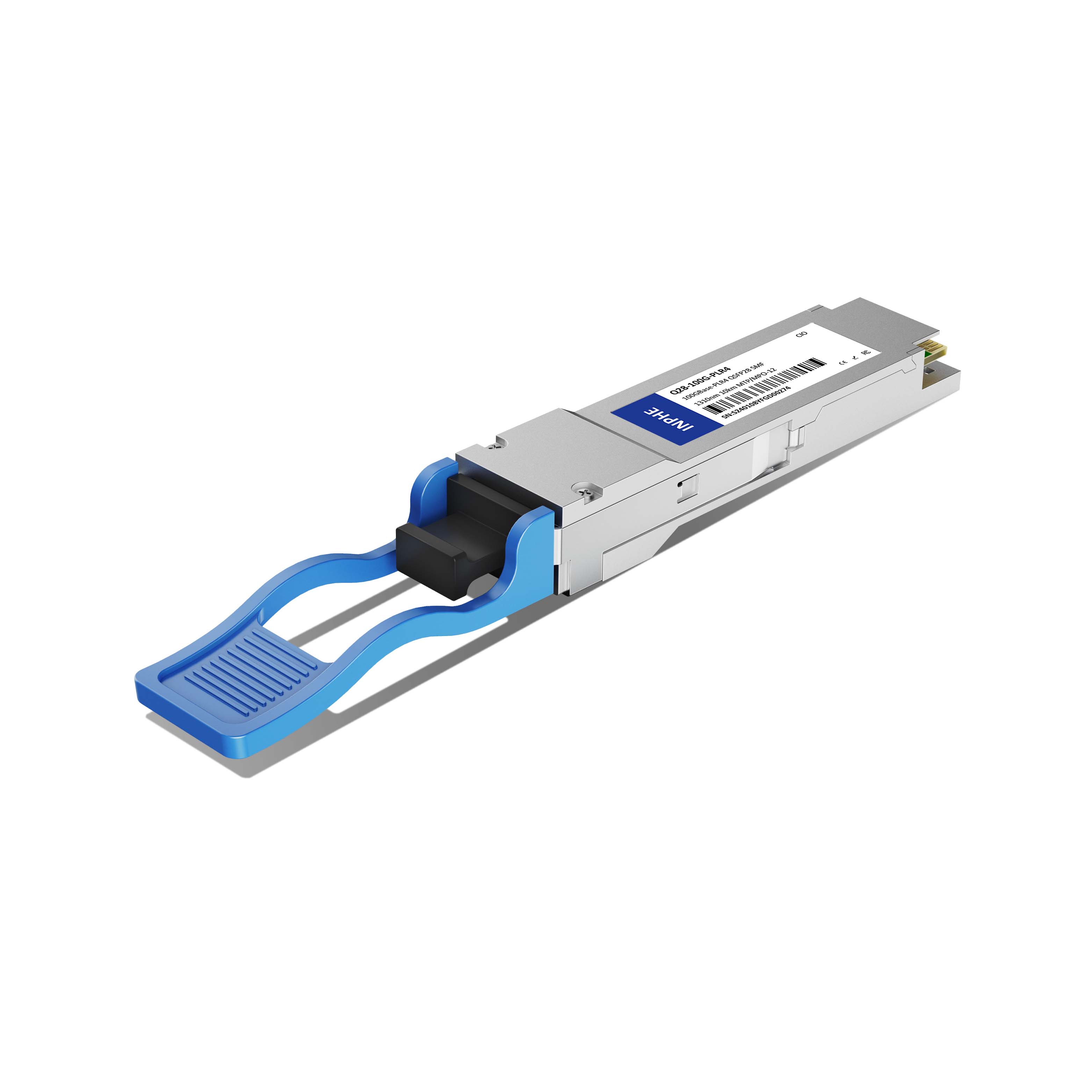

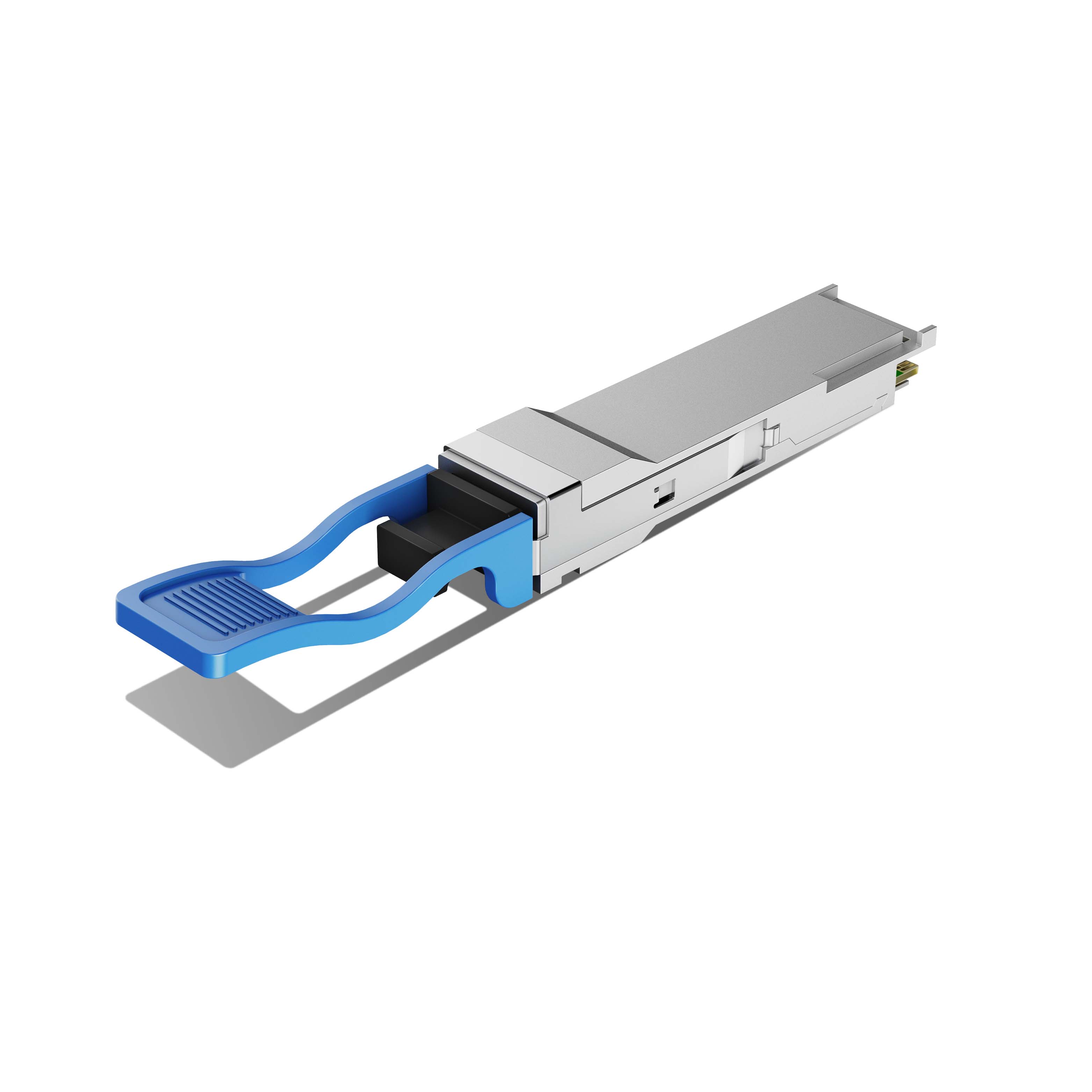

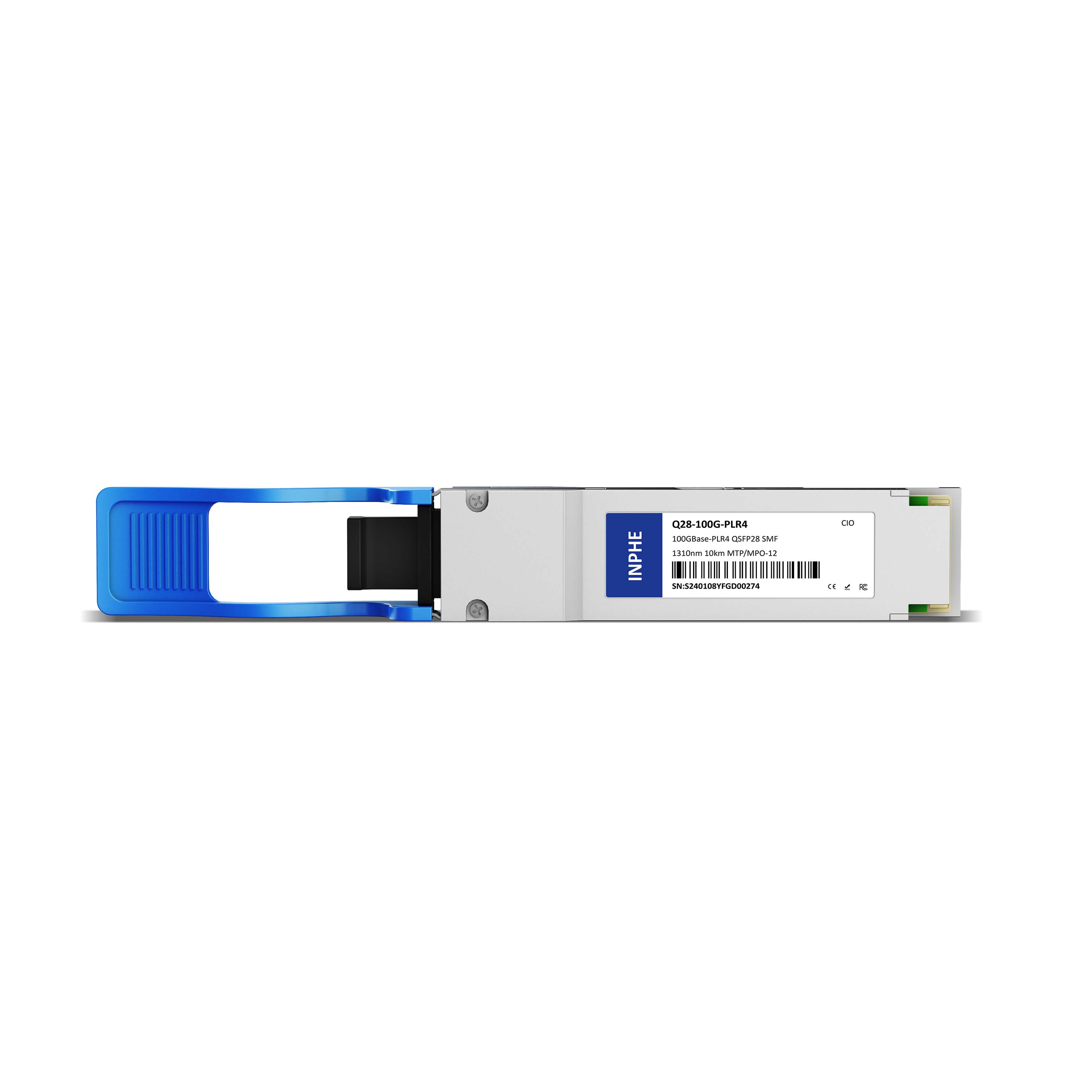

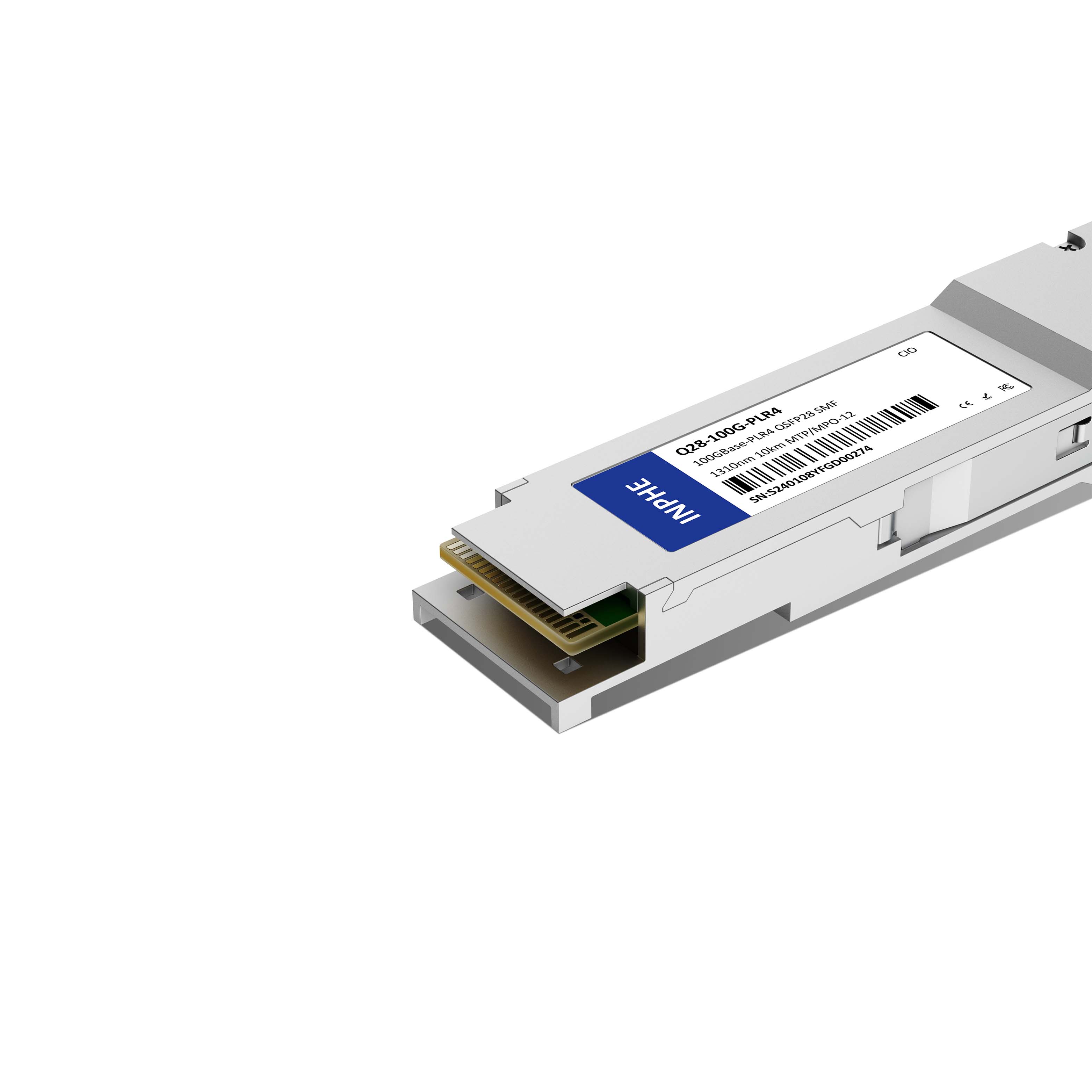

Edge-corE Compatible QSFP28 100GBASE PLR4 1310nm 10km SMF MPO/MTP-12 With Dual CDR DDM/DOM Optics Transceiver, Support 4x25G LR

Name: Edge-corE Compatible QSFP28 100GBASE PLR4 1310nm 10km SMF MPO/MTP-12 With Dual CDR DDM/DOM Optics Transceiver, Support 4x25G LR
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 707001301038
Price: 129 USD
Availability: InStock

#707001301038

US$129.00

INPHE: QSFP-100G-PLR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Juniper FS.COM Flexoptix Coherent (Finisar) Edge CorE UfiSpace IPinfusion Celestica Drivenets

Compatible Models:

QSFP-100G-PLR4 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-100G-PLR4
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1310nm	Max Distance	10km
Connector	MTP/MPO 12	Transmitter Type	DFB
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-6.0 ~ +2.0dBm	Receiver Sensitivity	< -12.0dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
