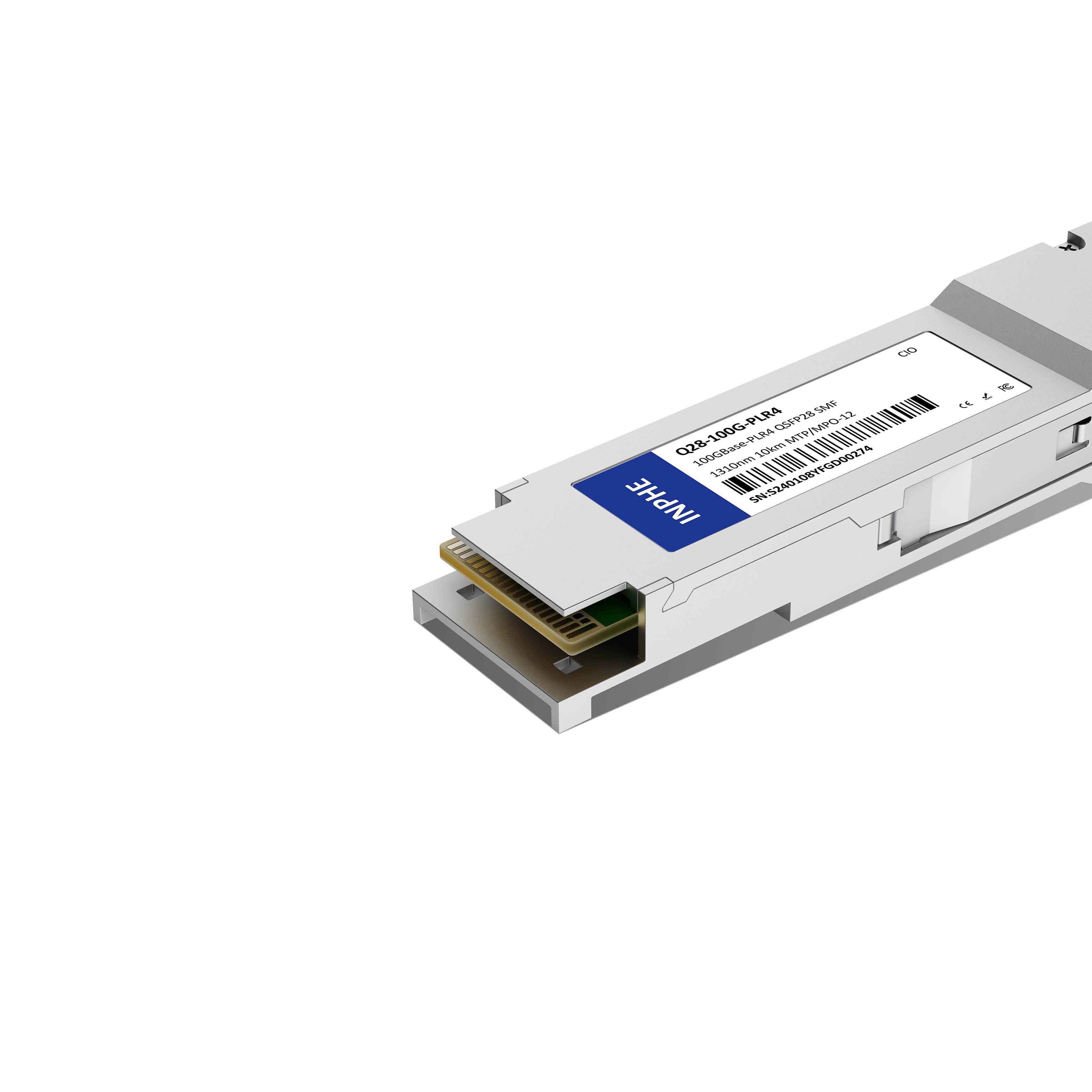

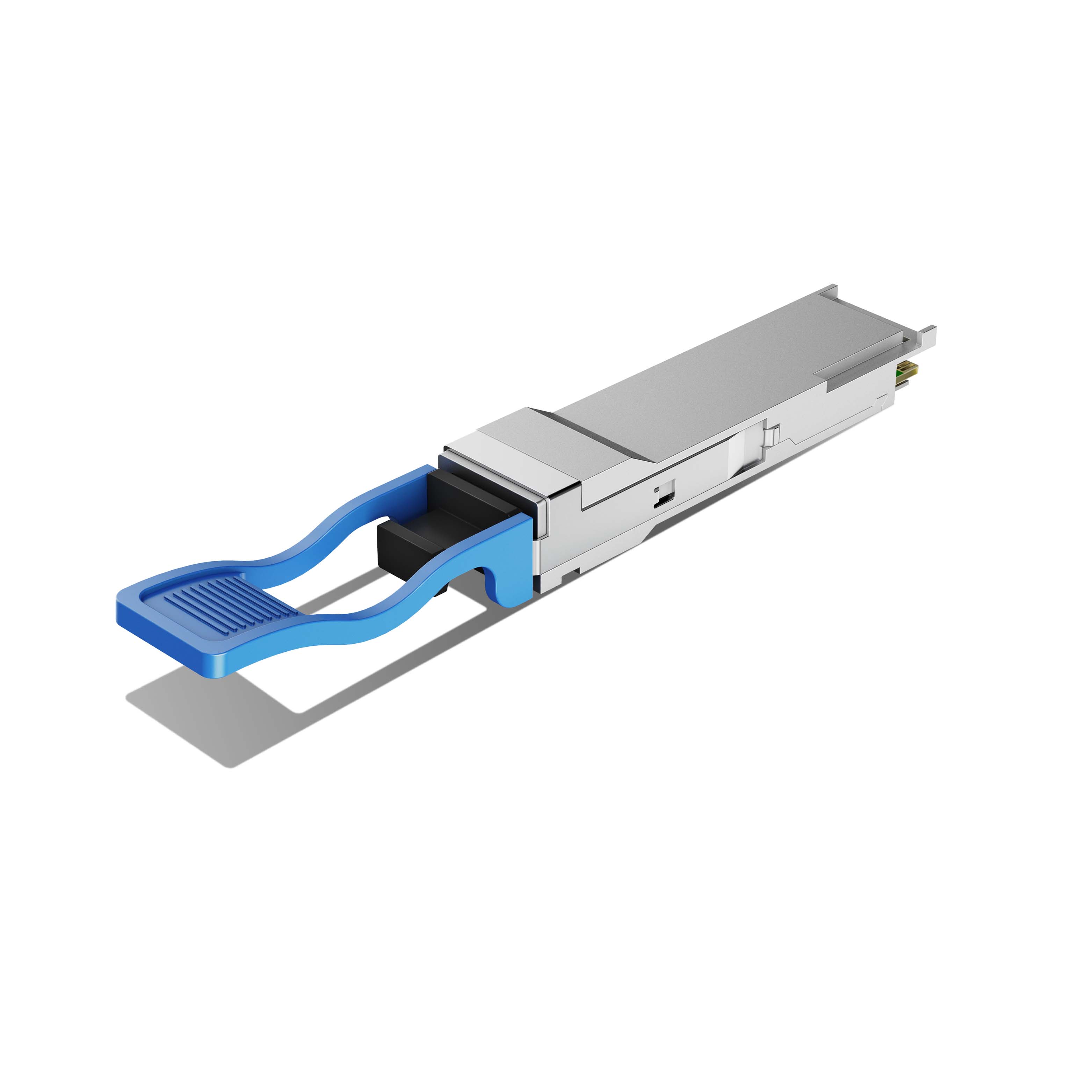

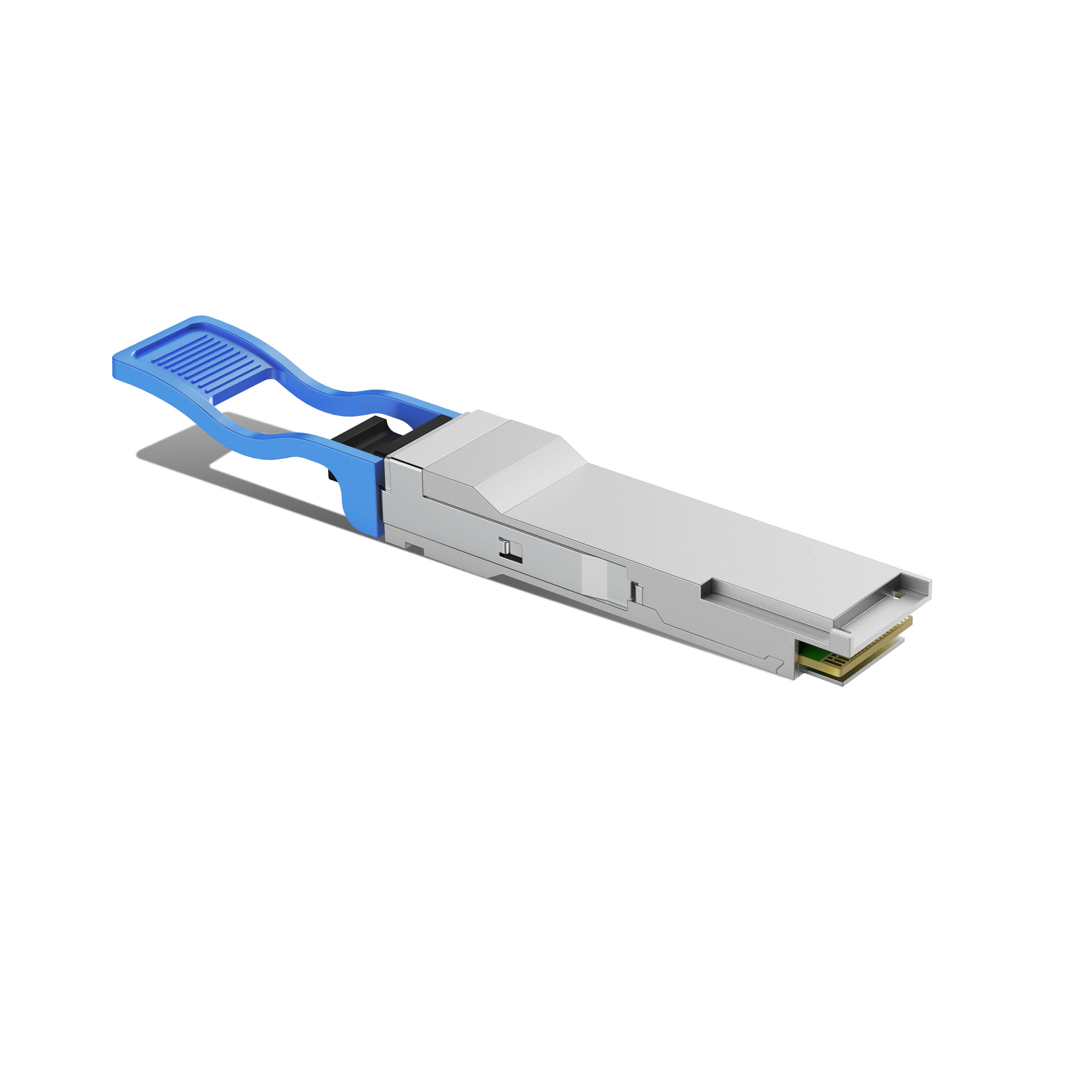

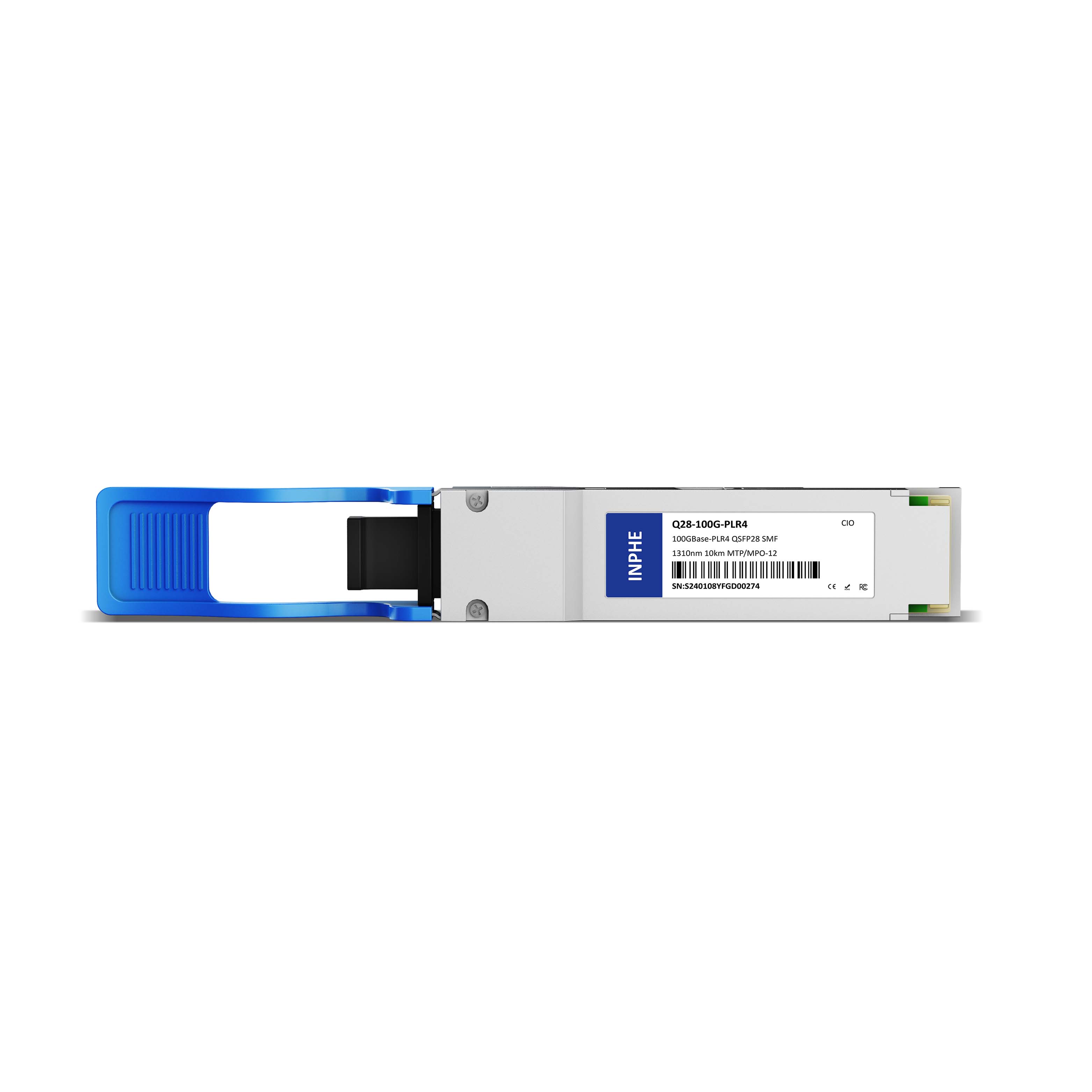

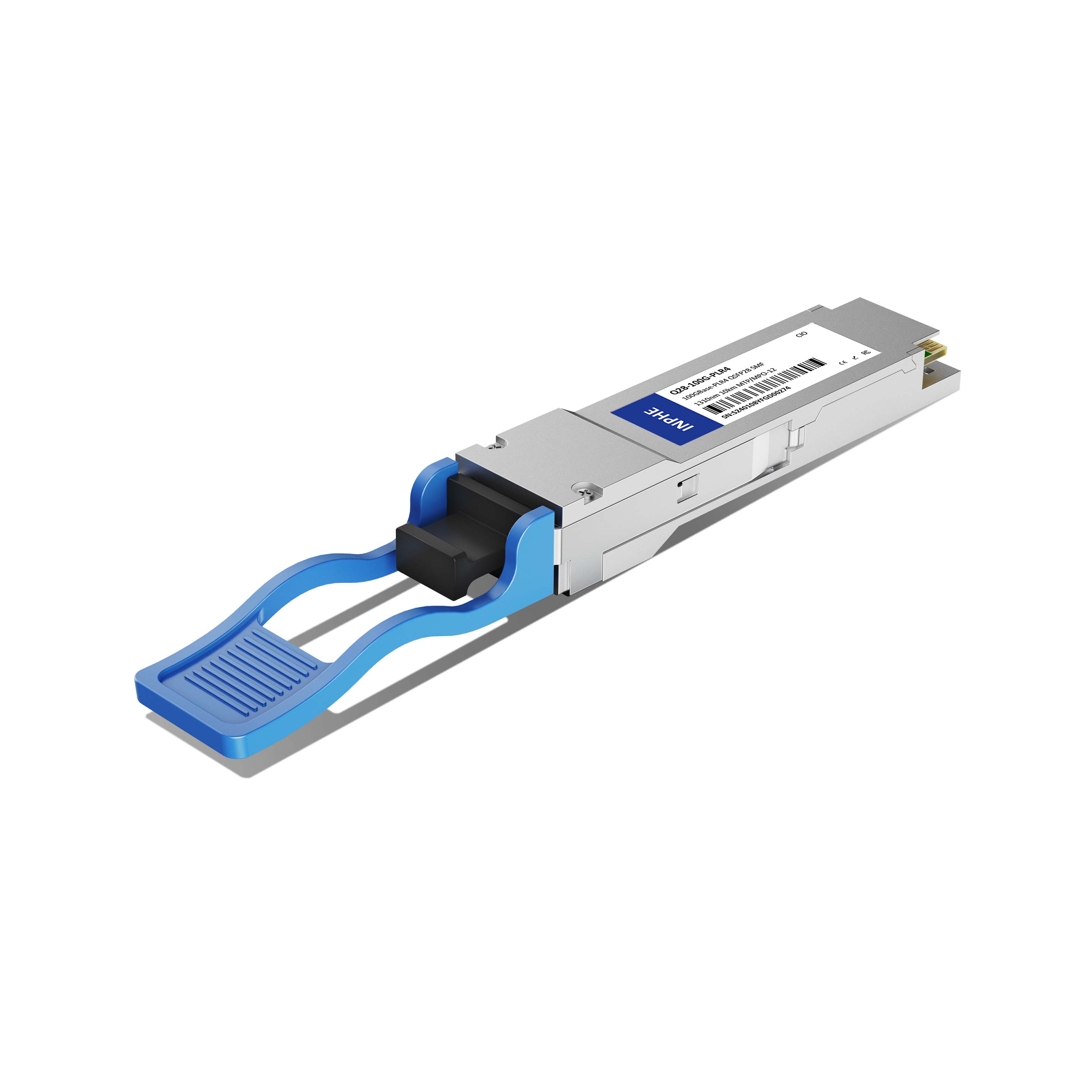

Cisco Compatible QSFP28 100GBASE PLR4 1310nm 10km SMF MPO/MTP-12 DDM/DOM Optics Transceiver, Support 4x25G LR

Name: Cisco Compatible QSFP28 100GBASE PLR4 1310nm 10km SMF MPO/MTP-12 DDM/DOM Optics Transceiver, Support 4x25G LR
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 707001301028
Price: 259 USD
Availability: InStock

#707001301028

US$259.00

INPHE: QSFP-100G-PLR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista Coherent (Finisar) Flexoptix Edge CorE FS.COM UfiSpace IPinfusion Celestica Drivenets More +

Compatible Models:

QSFP-100G-PLR4 Customized

QTY:

Specifications

The Cisco compatible QSFP28 100G-PLR4 Optics is specifically designed for 4x25G Breakout Ethernet singlemode links.

Featuring a DML transmitter and a PIN receiver, and operating at a wavelength of 4x1310nm, this Optics utilizes an MTP/MPO-12 singlemode connector to deliver high-speed 4x25G transmission and exceptional reliability over link distances of up to 10kmm (OS2 SMF).

It supports both DDM/DOM (Digital Optical Monitoring).

Primary Application:
4x25G LR Breakout Connections

Vendor Name	INPHE	Part Number	QSFP-100G-PLR4
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1310nm	Max Distance	10km
Connector	MTP/MPO 12	Transmitter Type	DFB
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-6.0 ~ +2.0dBm	Receiver Sensitivity	< -12.0dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
