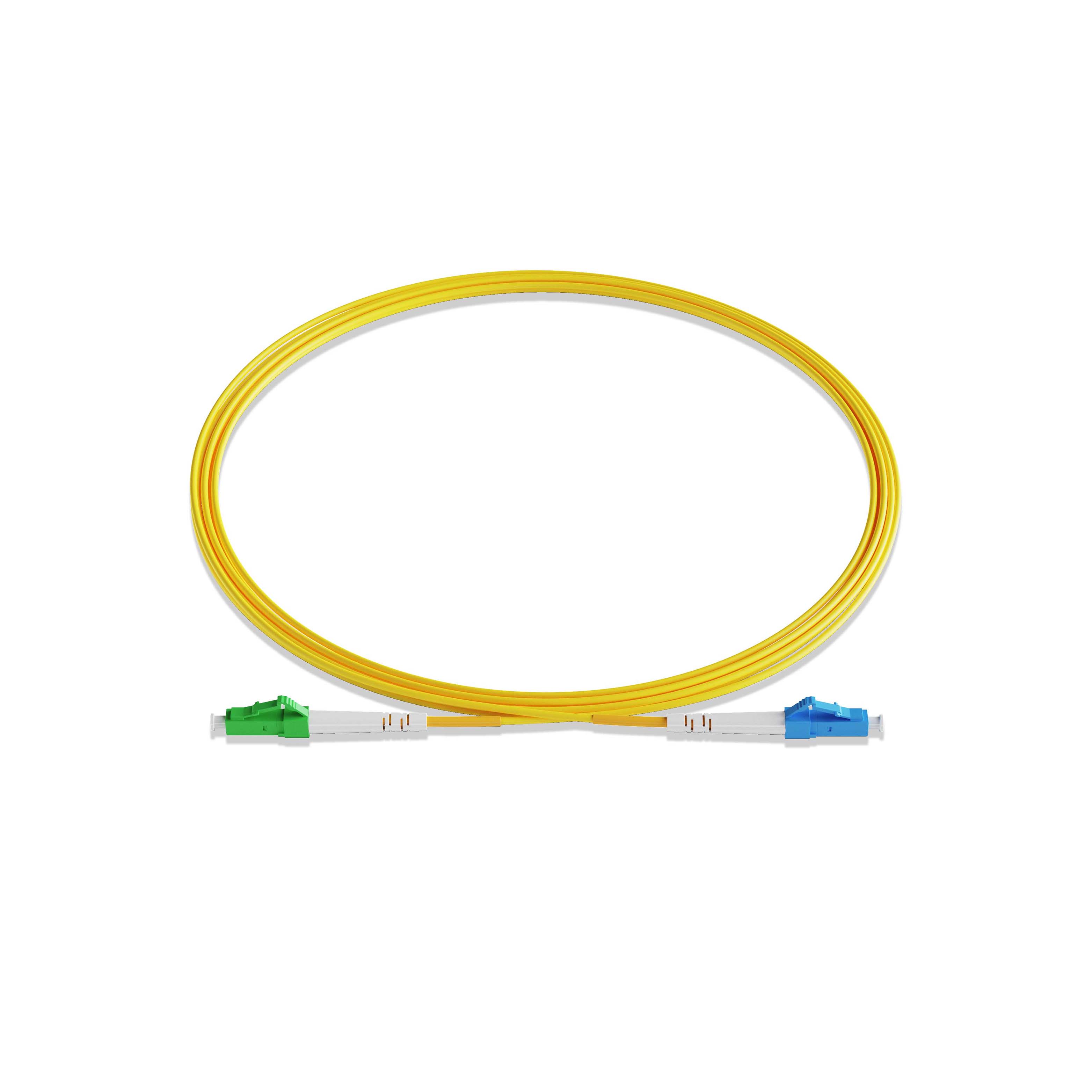

50m 164ft Fiber Patch Cable 1 Fiber LC UPC Simplex to LC APC Simplex Singlemode OS2 Riser OFNR 2.0mm Yellow

Name: 50m 164ft Fiber Patch Cable 1 Fiber LC UPC Simplex to LC APC Simplex Singlemode OS2 Riser OFNR 2.0mm Yellow
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 9057050XXX
Price: 3.99 USD
Availability: InStock

#9057050XXX

US$3.99

INPHE: LCU1LCASM050XXX

Received successfully

Coupon Code

CONTINUE SHOPPING

Length:

0.3m (0.98ft) 0.5m (1.6ft) 1m (3ft) 2m (7ft) 3m (10ft) 4m (13ft) 5m (16ft) 7m (23ft) 10m (33ft) 12m (39ft) 15m (49ft) 20m (66ft) 25m (82ft) 30m (98ft) 50m (164ft) Customized

QTY:

Specifications

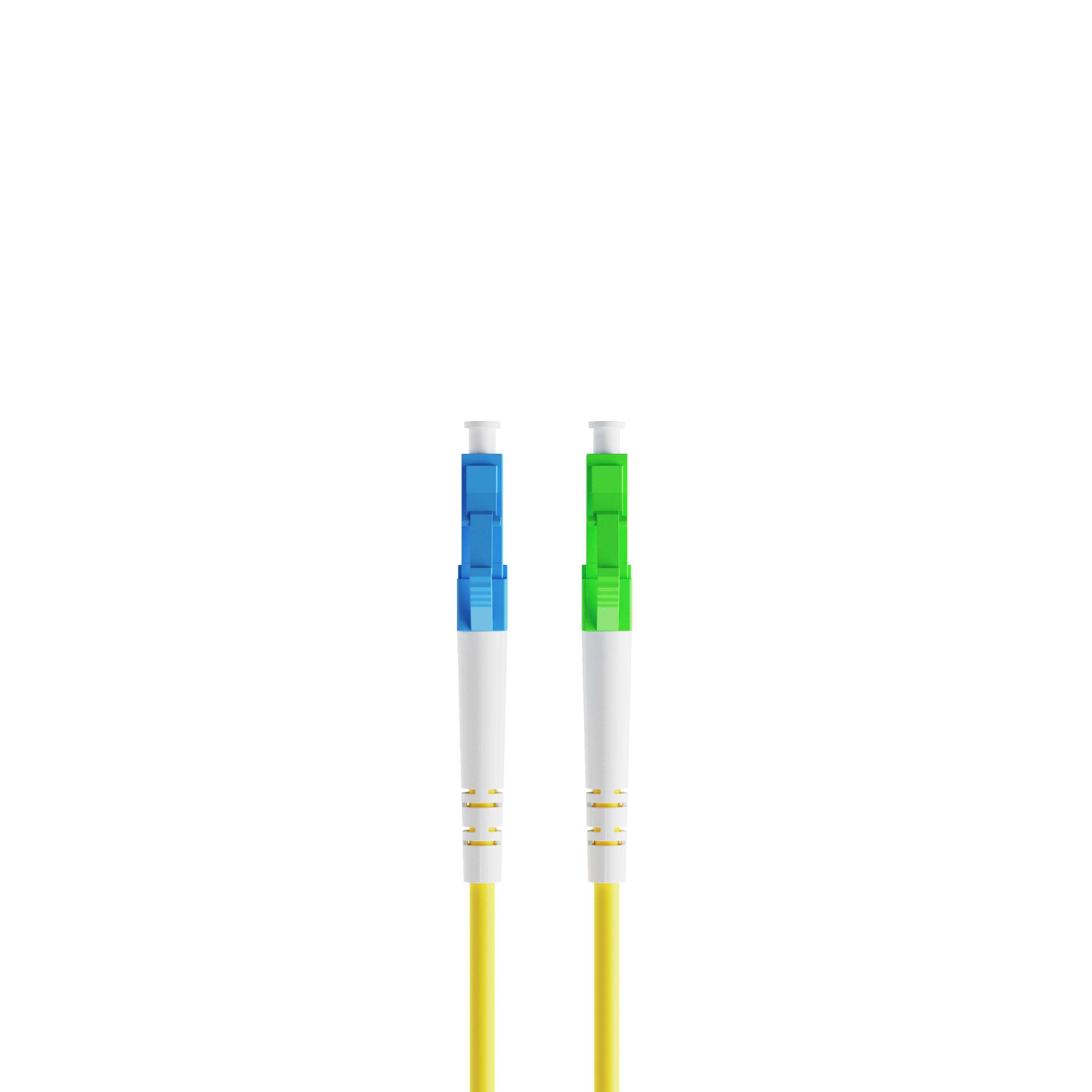

Connector A	LC UPC Simplex	Connector B	LC APC Simplex
Fiber Count	1 Fibers	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Flame Rating	Riser (OFNR)	Cable Outside Diameter (OD)	2.0mm
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength (Long/Short Term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	UPC≥50dB, APC≥60dB
Attenuation at 1310nm	0.4dB/km	Attenuation at 1550nm	0.3dB/km
Operating Temperature	-10 to 70°C (14 to 158°F)	Storage Temperature	-20 to 70°C (-4 to 158°F)
