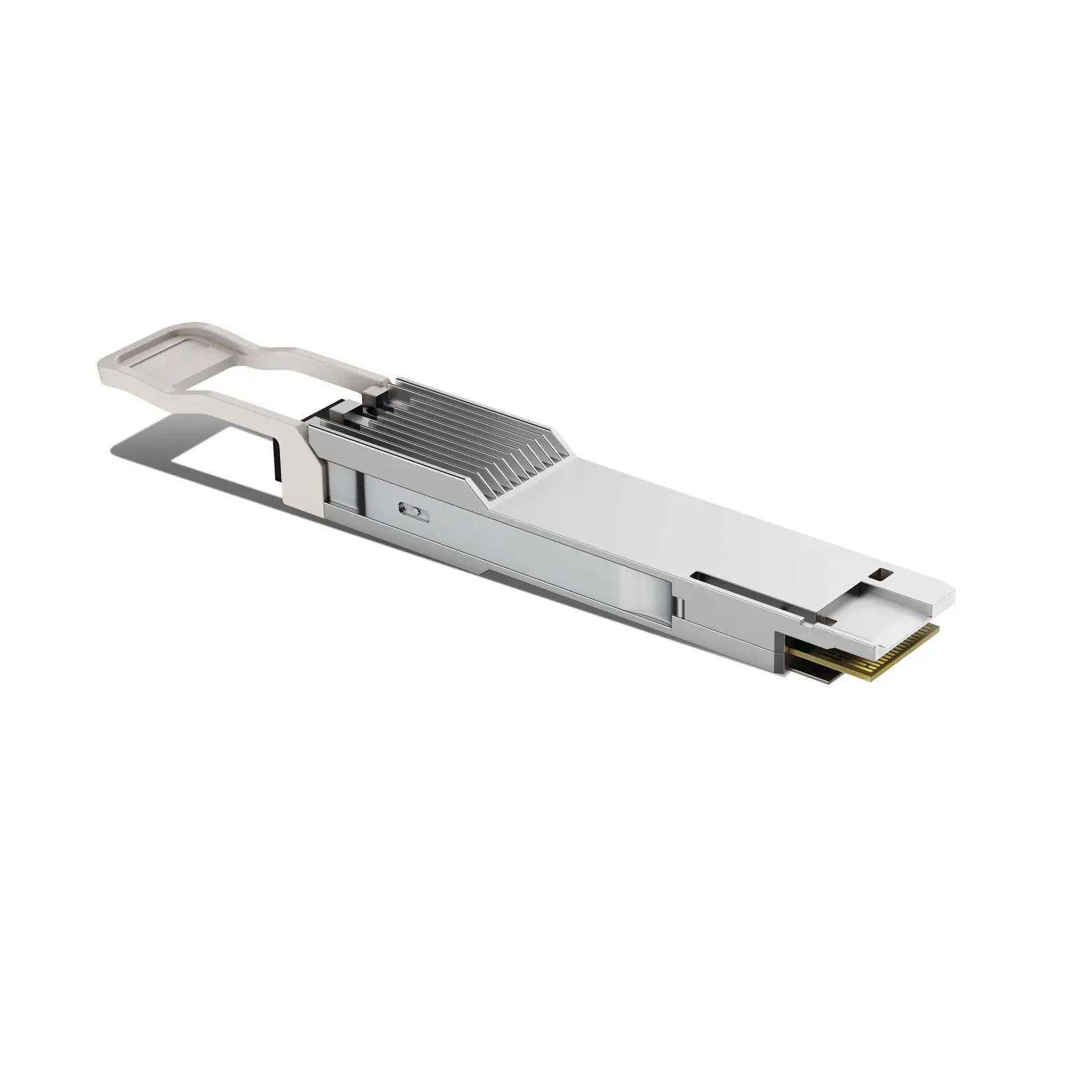

Cisco Compatible QSFP-DD800 800GBASE ZR High Power 0-4dBm Coherent (DCO) DWDM Tunable CH13-CH61 120km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver

Name: Cisco Compatible QSFP-DD800 800GBASE ZR High Power 0-4dBm Coherent (DCO) DWDM Tunable CH13-CH61 120km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 710009801028
Price: 13900 USD
Availability: InStock

#710009801028

US$13,900.00

INPHE: QDD-800G-ZRHP

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco

Compatible Models:

QDD-800G-ZRHP Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QDD-800G-ZRHP
Form Factor	QSFP-DD800	Max Data Rate	800Gbps
Wavelength	1528.77 ~ 1567.13nm (Tunable)	Max Distance	120km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	Coherent
Transmitter Power	-10.0 ~ +1.0dBm	Receiver Sensitivity	< -9.0dBm DWDM Amplified, < -19.0dBm Single wavelength unamplified
Protocols	OIF-800ZR IA, OIF-CMIS-05.3 IA, OIF-C-CMIS-01.3 IA, QSFPDD-MSA-Rev 5.0, IEEE Std 802.3, OIF-CEI-05.0	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
