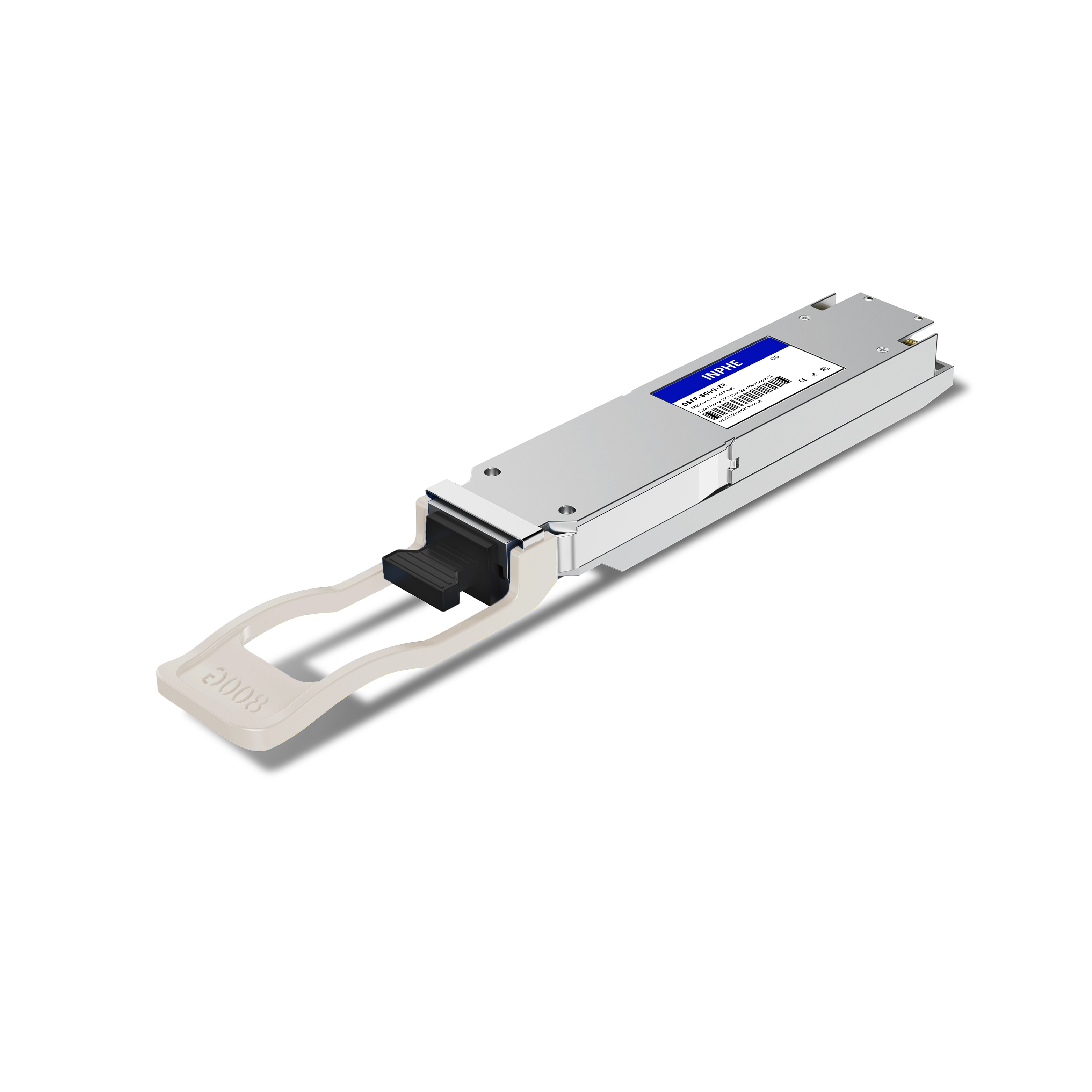

Cisco Compatible OSFP 800GBASE ZR Coherent (DCO) DWDM Tunable CH13-CH61 120km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver, Closed Finned Top

Name: Cisco Compatible OSFP 800GBASE ZR Coherent (DCO) DWDM Tunable CH13-CH61 120km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver, Closed Finned Top
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 710009301028
Price: 11900 USD
Availability: InStock

#710009301028

US$11,900.00

INPHE: OSFP-800G-ZR

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco

Compatible Models:

OSFP-800G-ZR Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	OSFP-800G-ZR
Form Factor	OSFP Closed Finned Top	Max Data Rate	800Gbps
Wavelength	1528.77 ~ 1567.13nm (Tunable)	Max Distance	120km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	Coherent
Transmitter Power	-10.0 ~ -6.0dBm	Receiver Sensitivity	< -9.0dBm DWDM Amplified, < -19.0dBm Single wavelength unamplified
Protocols	OIF-800ZR IA, OIF-CMIS-05.3 IA, OIF-C-CMIS-01.3 IA, QSFPDD-MSA-Rev 5.0, IEEE Std 802.3, OIF-CEI-05.0	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
