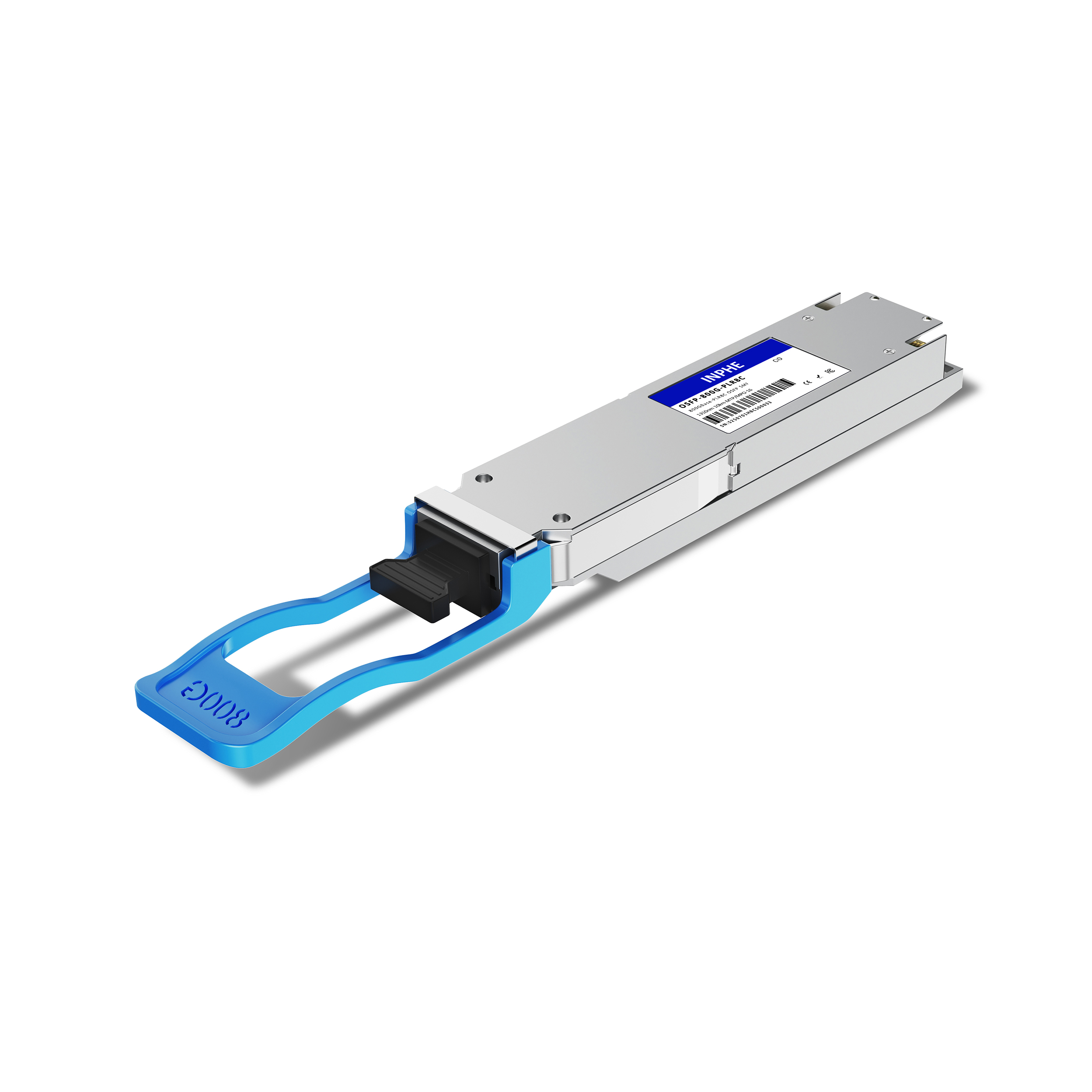

Juniper OSFP-8X100G-LR1 740-174939 Compatible OSFP 800GBASE PLR8 1310nm 10km SMF MPO/MTP-16 DDM/DOM Optics Transceiver, Support 8x100G LR1, Closed Finned Top

Name: Juniper OSFP-8X100G-LR1 740-174939 Compatible OSFP 800GBASE PLR8 1310nm 10km SMF MPO/MTP-16 DDM/DOM Optics Transceiver, Support 8x100G LR1, Closed Finned Top
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 710007001013
Price: 1999 USD
Availability: InStock

#710007001013

US$1,999.00

INPHE: OSFP-8X100G-LR1

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper

Compatible Models:

OSFP-8X100G-LR1 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	OSFP-800G-PLR8C
Form Factor	OSFP Closed Finned Top	Max Data Rate	850Gbps
Wavelength	1310nm	Max Distance	10km
Connector	MTP/MPO 16 APC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-1.9 ~ +4.8dBm	Receiver Sensitivity	< -6.1dBm
Protocols	OSFP MSA HW Rev 4.1, CMIS Rev 5.0, IEEE 802.3cu-2021, IEEE P802.3ck D2.2	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
