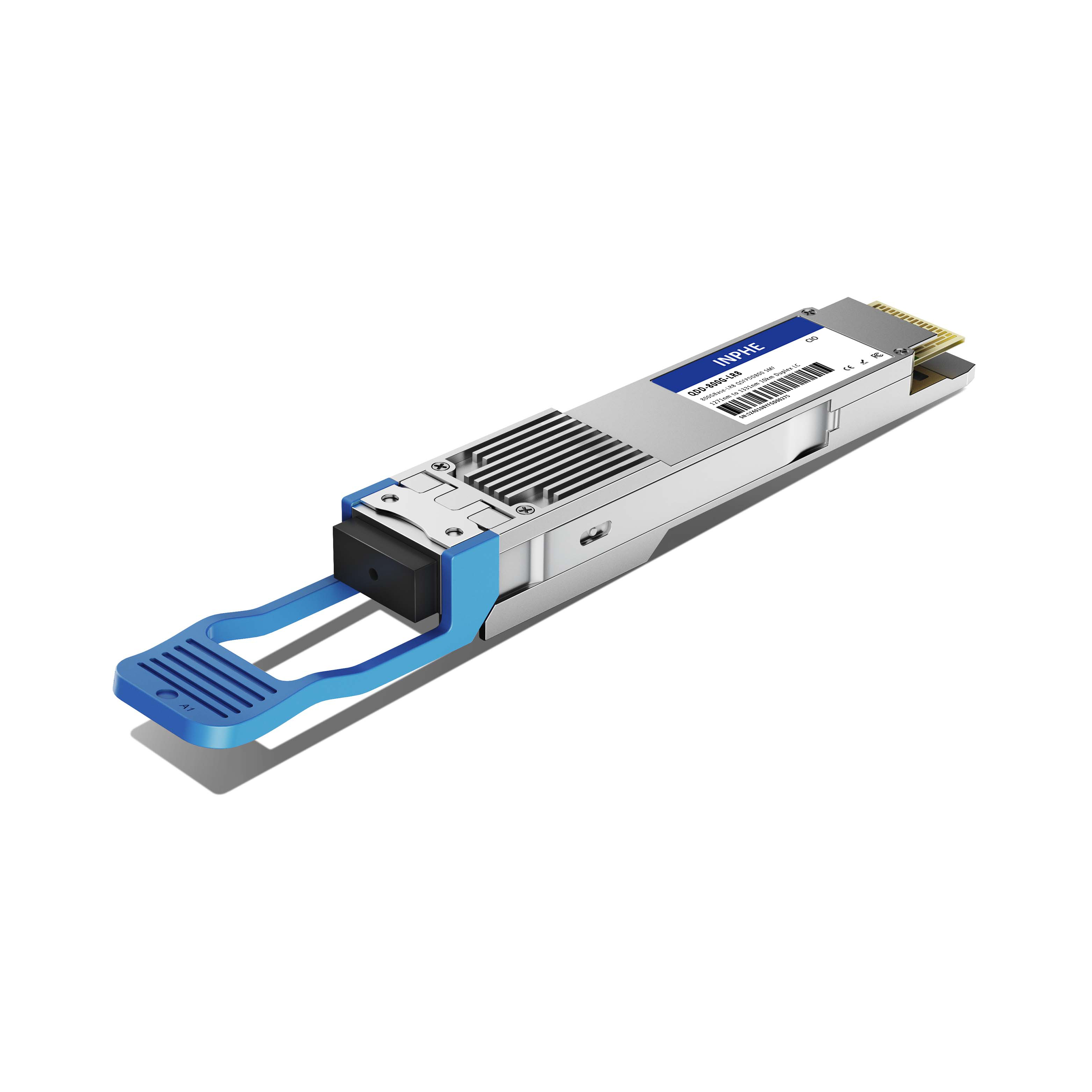

Arista QDD-800G-2LR4 Compatible QSFP-DD800 800GBASE LR8 1271/1291/1311/1331nm 10km SMF Duplex LC DDM/DOM Optics Transceiver

Name: Arista QDD-800G-2LR4 Compatible QSFP-DD800 800GBASE LR8 1271/1291/1311/1331nm 10km SMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 710003001013
Price: 2999 USD
Availability: InStock

#710003001013

US$2,999.00

INPHE: QDD-800G-2LR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista

Compatible Models:

QDD-800G-2LR4 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QDD-800G-LR8
Form Factor	QSFP-DD800	Max Data Rate	850Gbps
Wavelength	1271/1291/1311/1331/1351/1371/1391/1411nm	Max Distance	10km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-2.7 ~ +5.1dBm	Receiver Sensitivity	< -6.8dBm
Protocols	QSFP-DD MSA HW Rev 7.0, CMIS Rev 5.0, IEEE802.3cu-2021, IEEE802.3ck-2022	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
