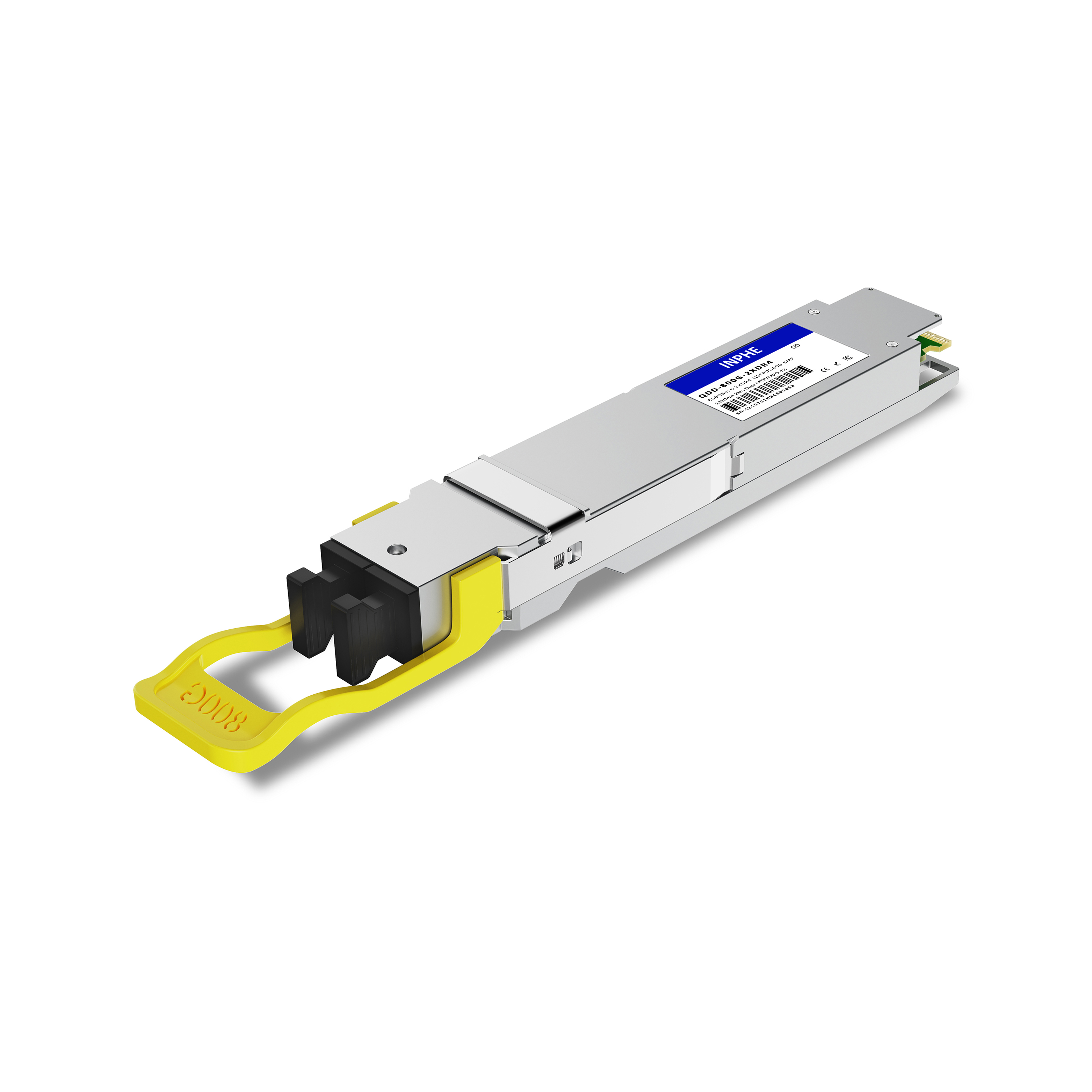

Arista QDD-800G-2XDR4 XVR-10340-50 Compatible QSFP-DD800 800GBASE 2xXDR4 1310nm 2km SMF Dual MPO/MTP-12 DDM/DOM Optics Transceiver, Support 2x400G XDR4

Name: Arista QDD-800G-2XDR4 XVR-10340-50 Compatible QSFP-DD800 800GBASE 2xXDR4 1310nm 2km SMF Dual MPO/MTP-12 DDM/DOM Optics Transceiver, Support 2x400G XDR4
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 710002001013
Price: 1399 USD
Availability: InStock

#710002001013

US$1,399.00

INPHE: QDD-800G-2XDR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Arista

Compatible Models:

QDD-800G-2XDR4 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QDD-800G-2XDR4
Form Factor	QSFP-DD800	Max Data Rate	850Gbps
Wavelength	1310nm	Max Distance	2km
Connector	Dual MTP/MPO 12 APC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-3.1 ~ +4.0dBm	Receiver Sensitivity	< -4.5dBm
Protocols	QSFP-DD MSA HW Rev 7.0, CMIS Rev 5.0, IEEE802.3cu-2021, IEEE802.3ck-2022	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
