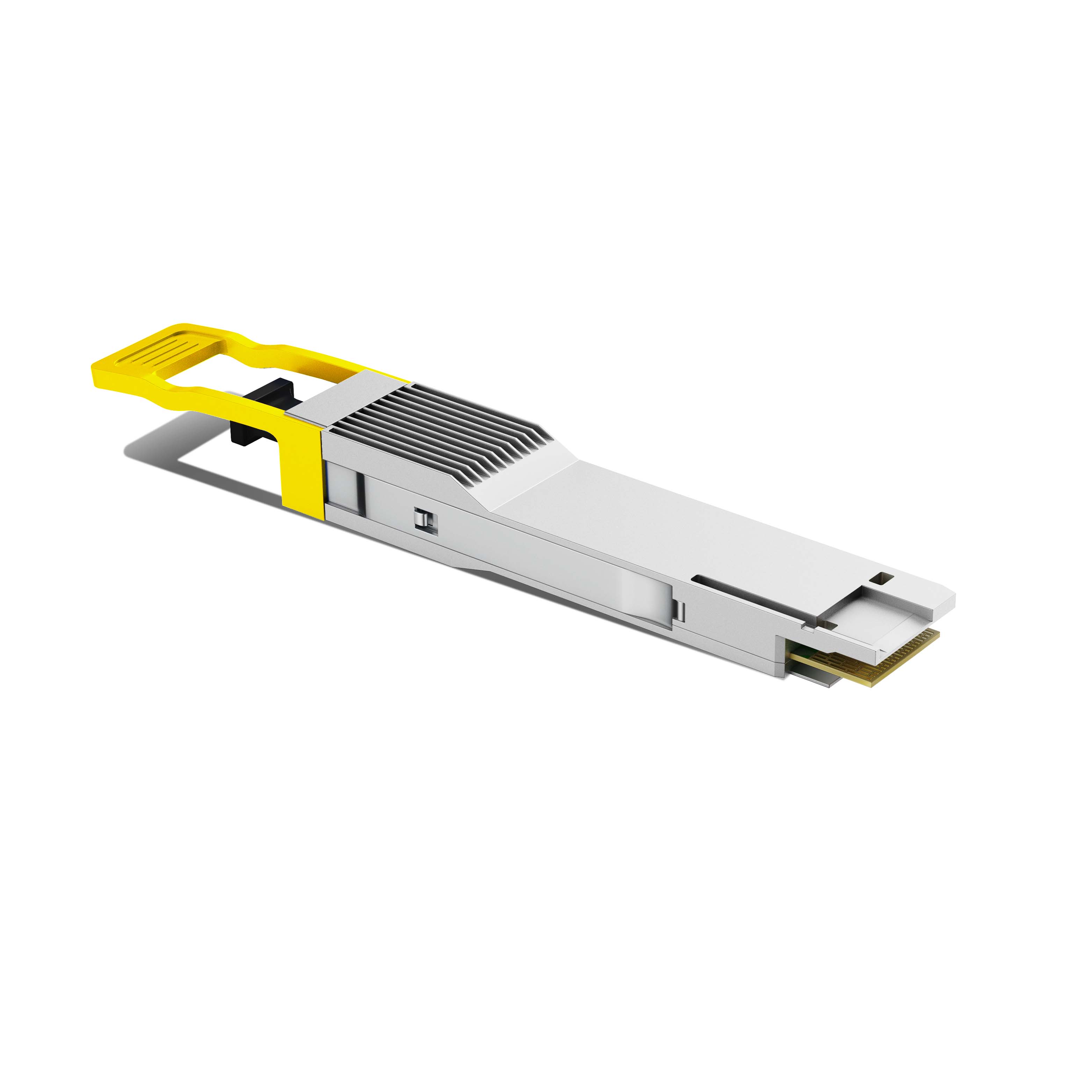

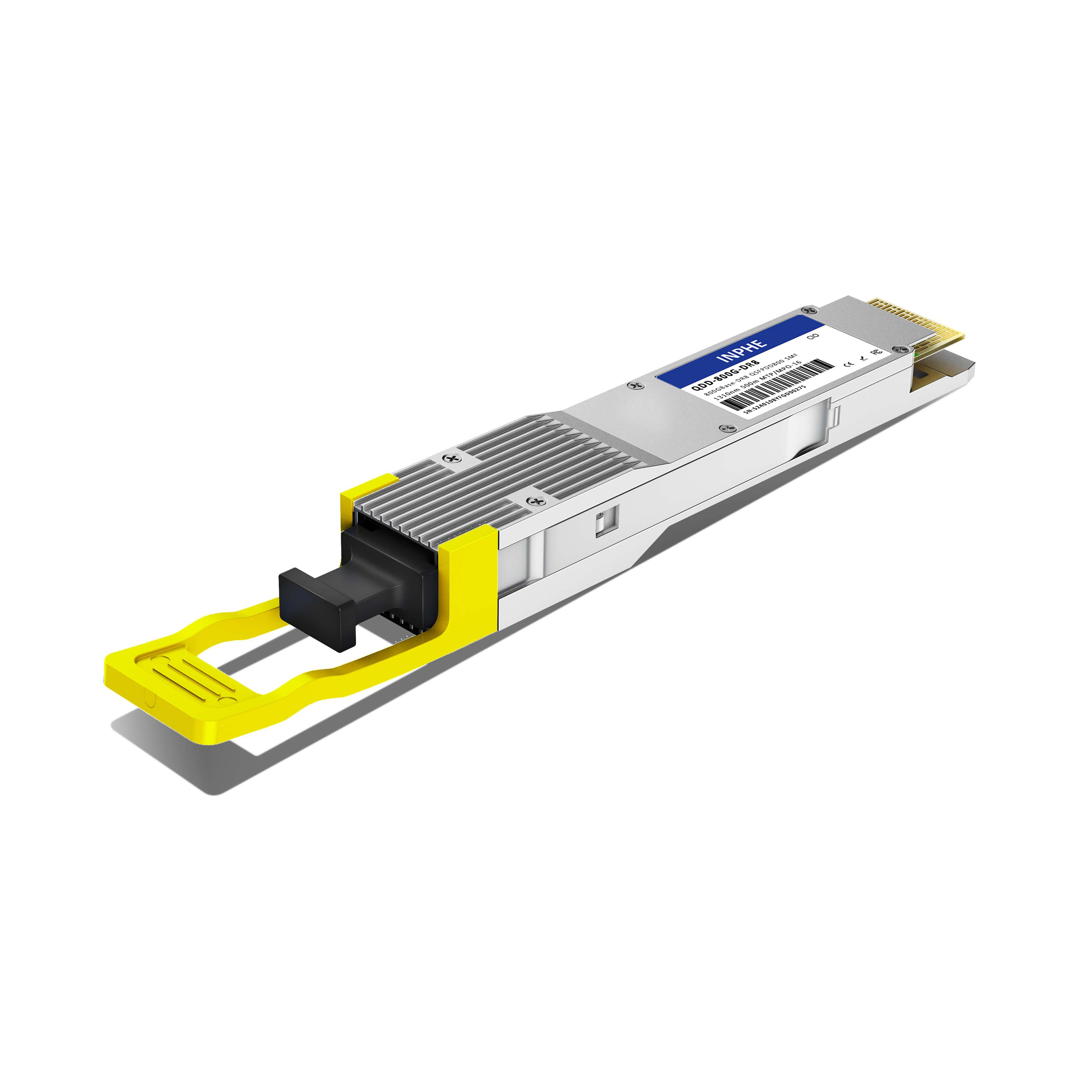

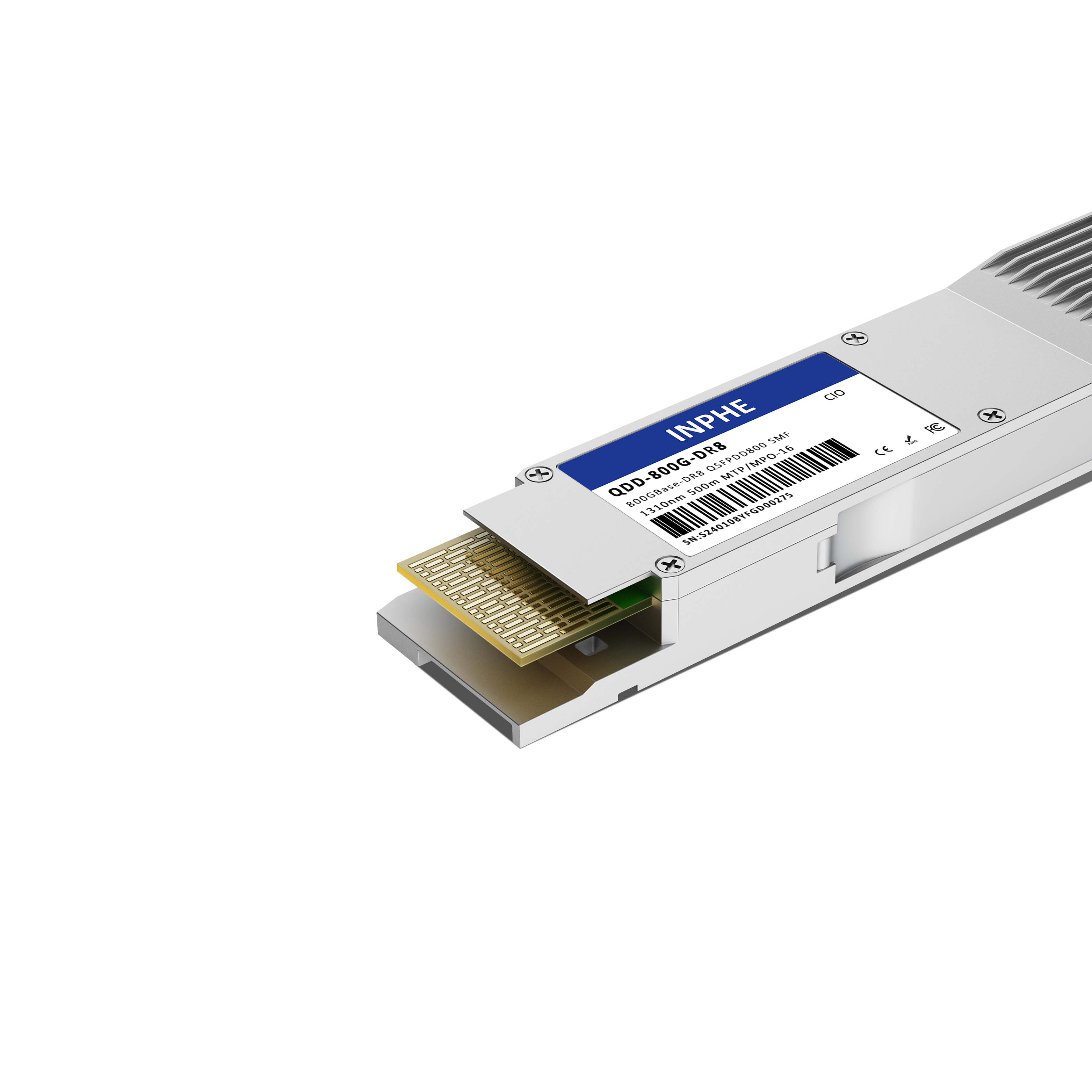

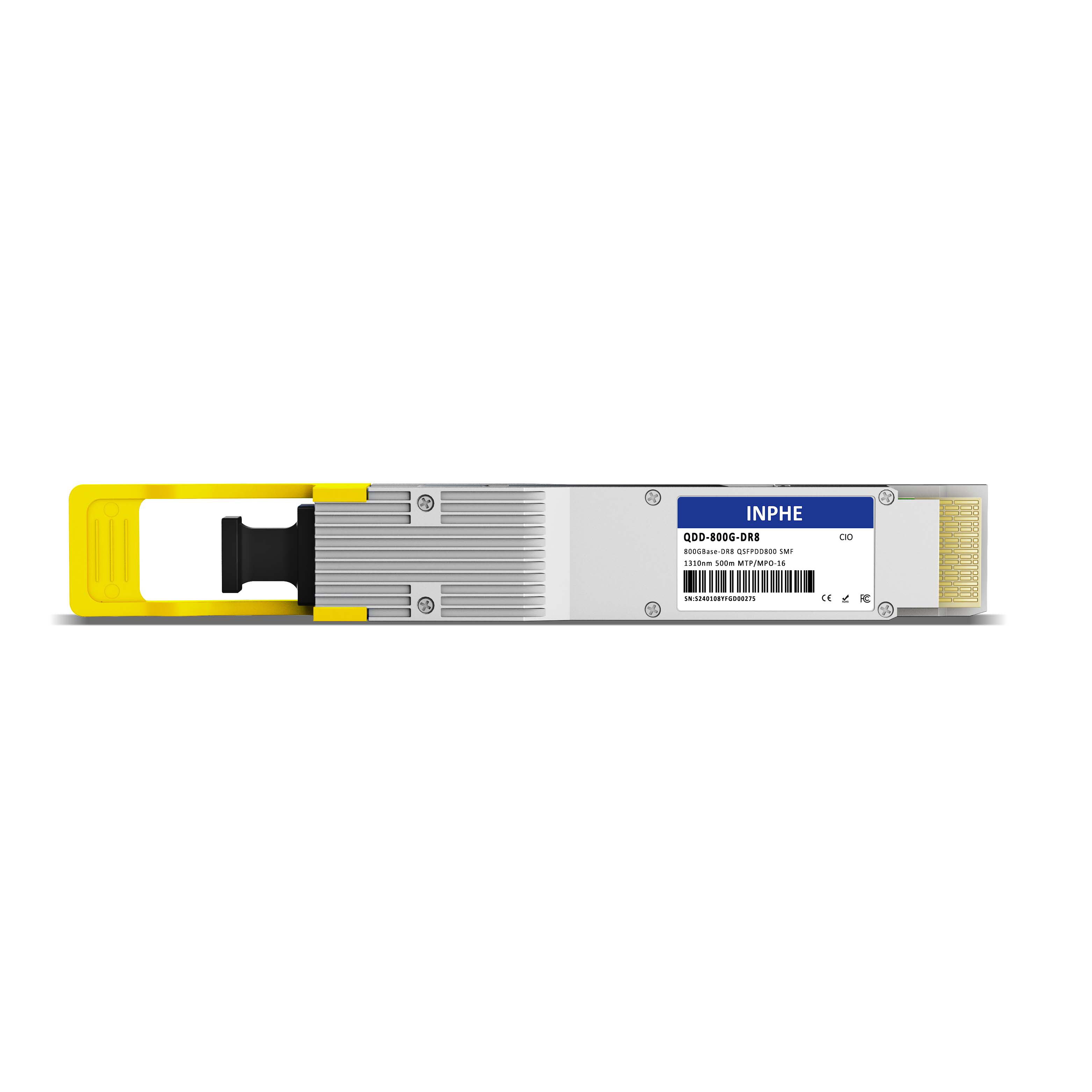

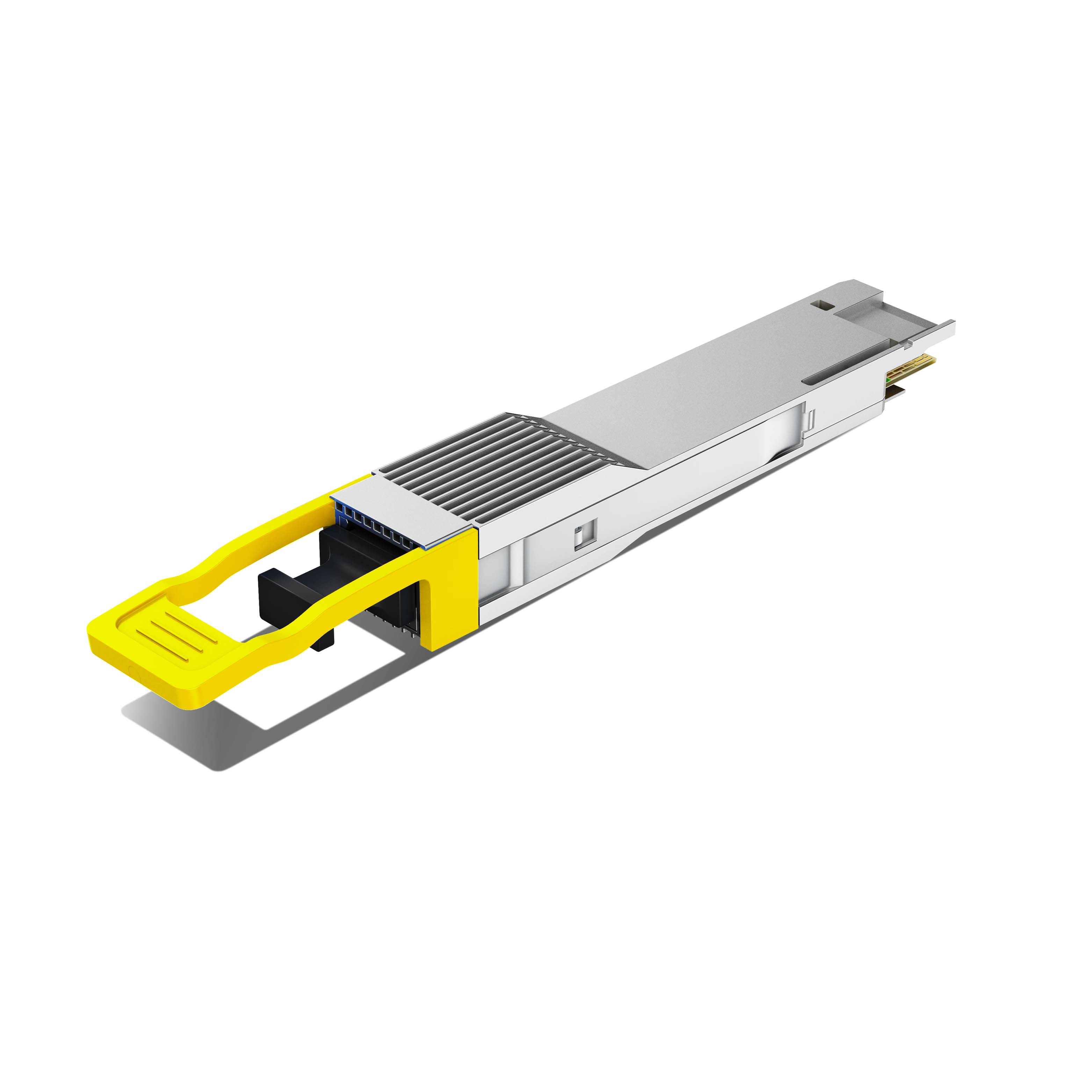

Juniper QDD-2X400G-DR4 740-145102 Compatible QSFP-DD800 800GBASE DR8 1310nm 500m SMF MPO/MTP-16 DDM/DOM Optics Transceiver, Support 8x100G DR1

Name: Juniper QDD-2X400G-DR4 740-145102 Compatible QSFP-DD800 800GBASE DR8 1310nm 500m SMF MPO/MTP-16 DDM/DOM Optics Transceiver, Support 8x100G DR1
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 710001801013
Price: 1599 USD
Availability: InStock

#710001801013

US$1,599.00

INPHE: QDD-2X400G-DR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper

Compatible Models:

QDD-2X400G-DR4 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QDD-800G-DR8
Form Factor	QSFP-DD800	Max Data Rate	850Gbps
Wavelength	1310nm	Max Distance	500m
Connector	MTP/MPO 16 APC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-2.9 ~ +4.0dBm	Receiver Sensitivity	< -3.9dBm
Protocols	QSFP-DD MSA Hardware Rev 7.0, CMIS Rev 5.0, IEEE 802.3df-2024, IEEE 802.3df-2024	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
