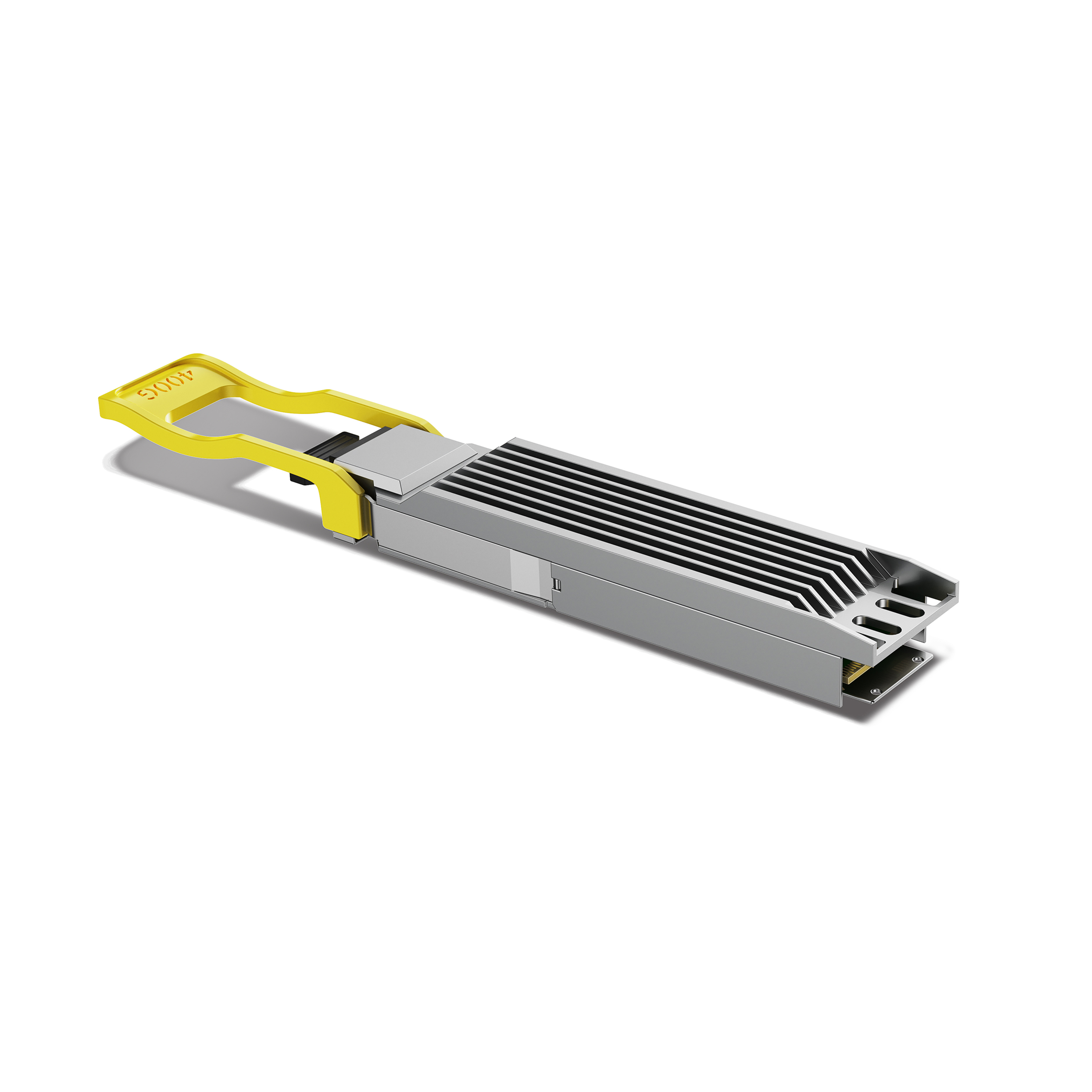

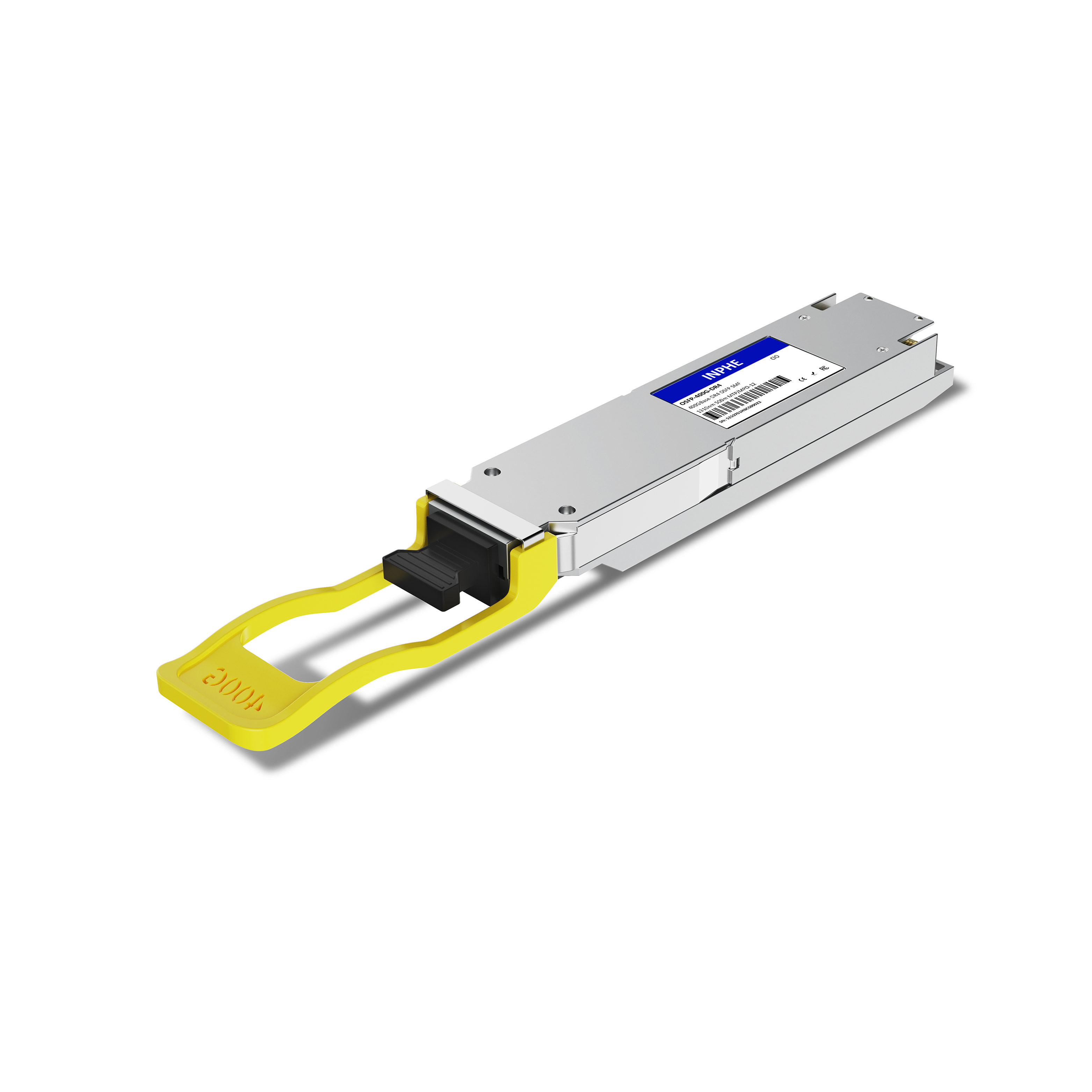

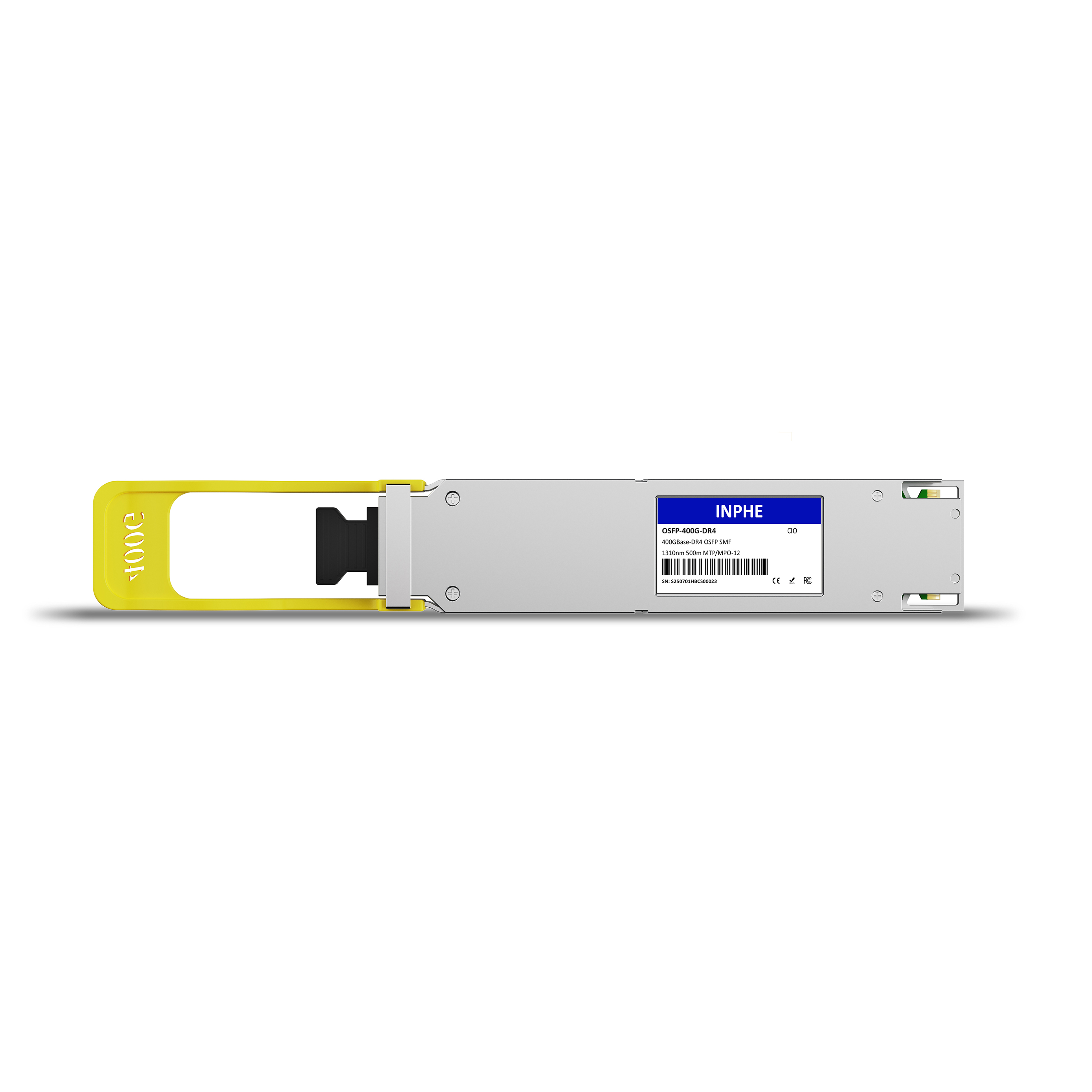

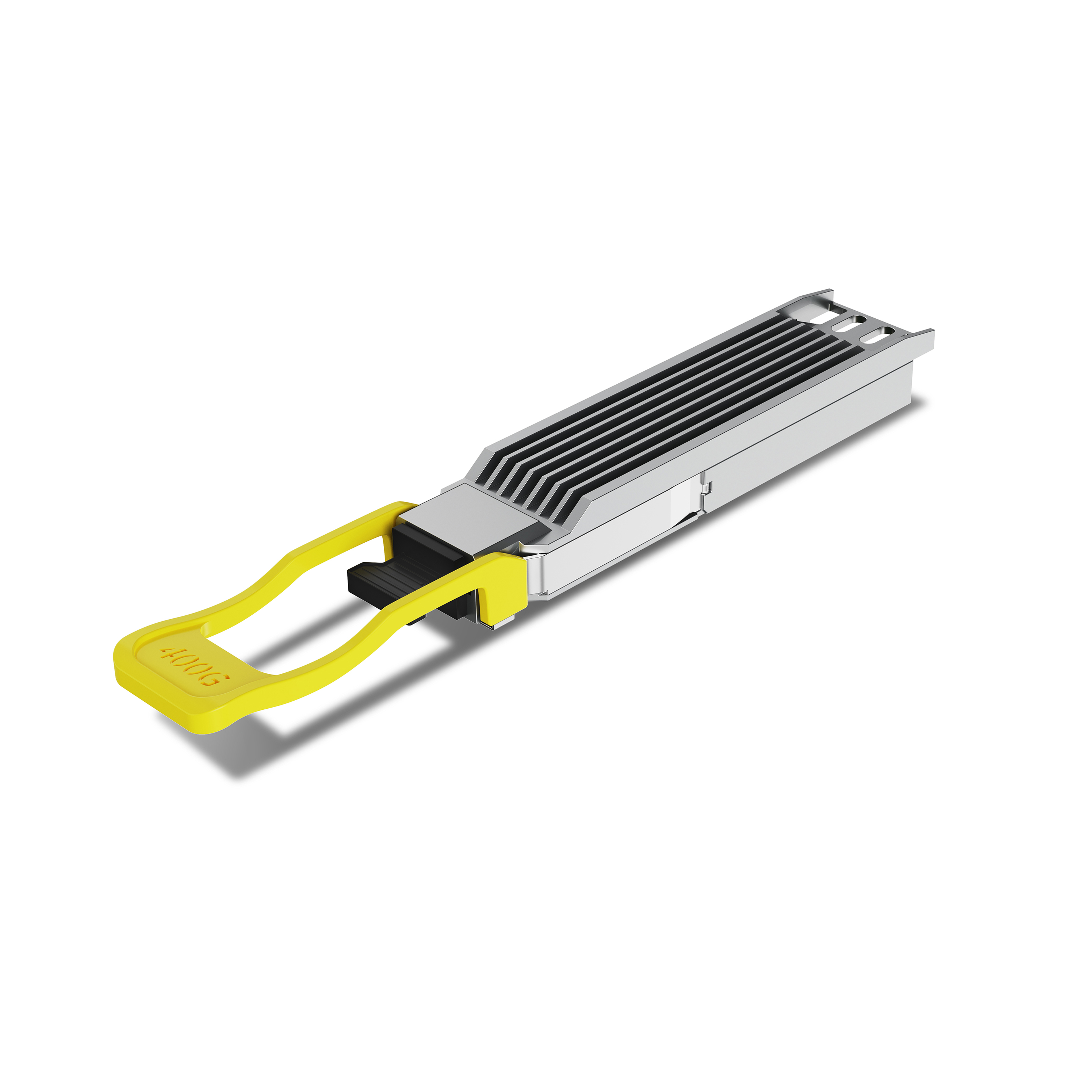

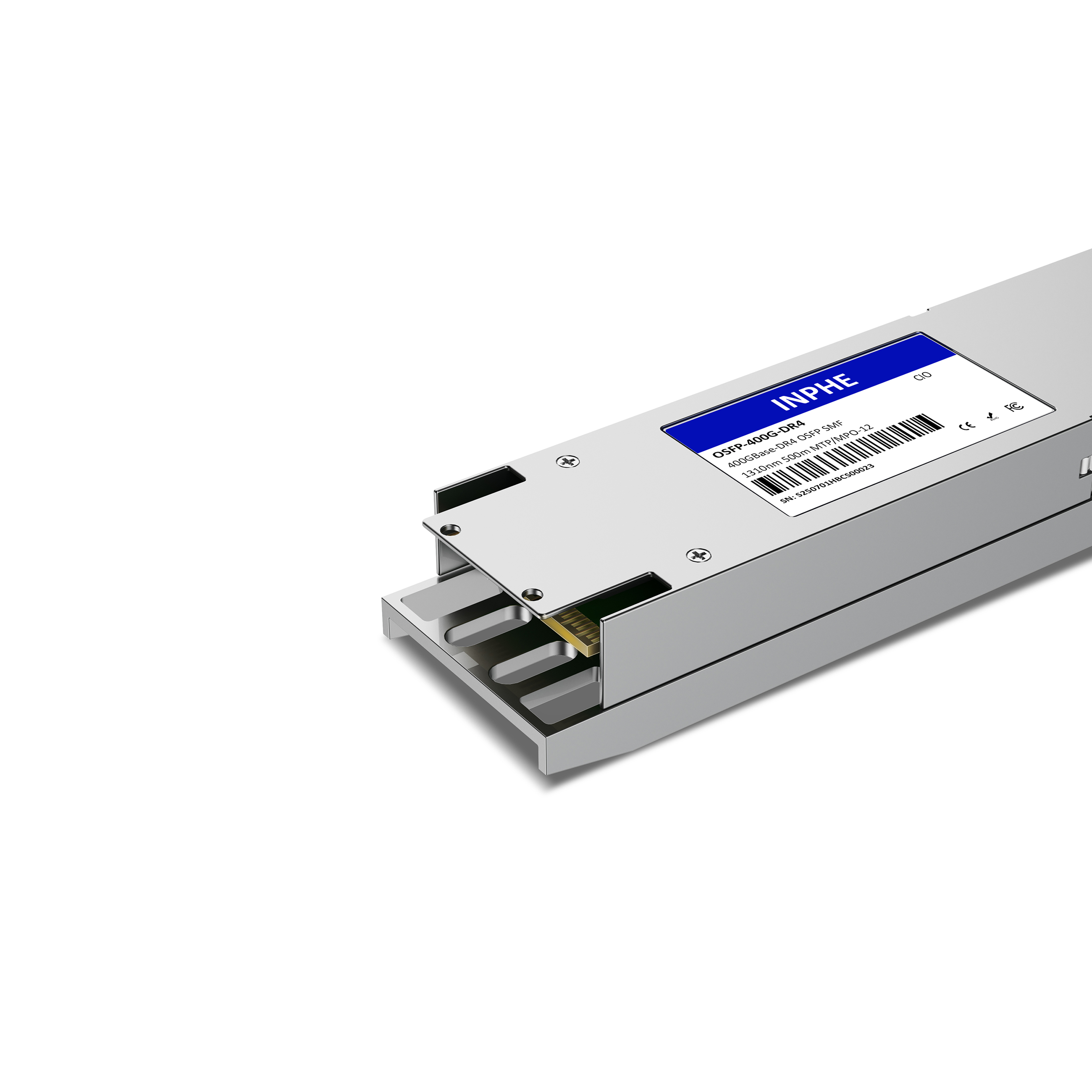

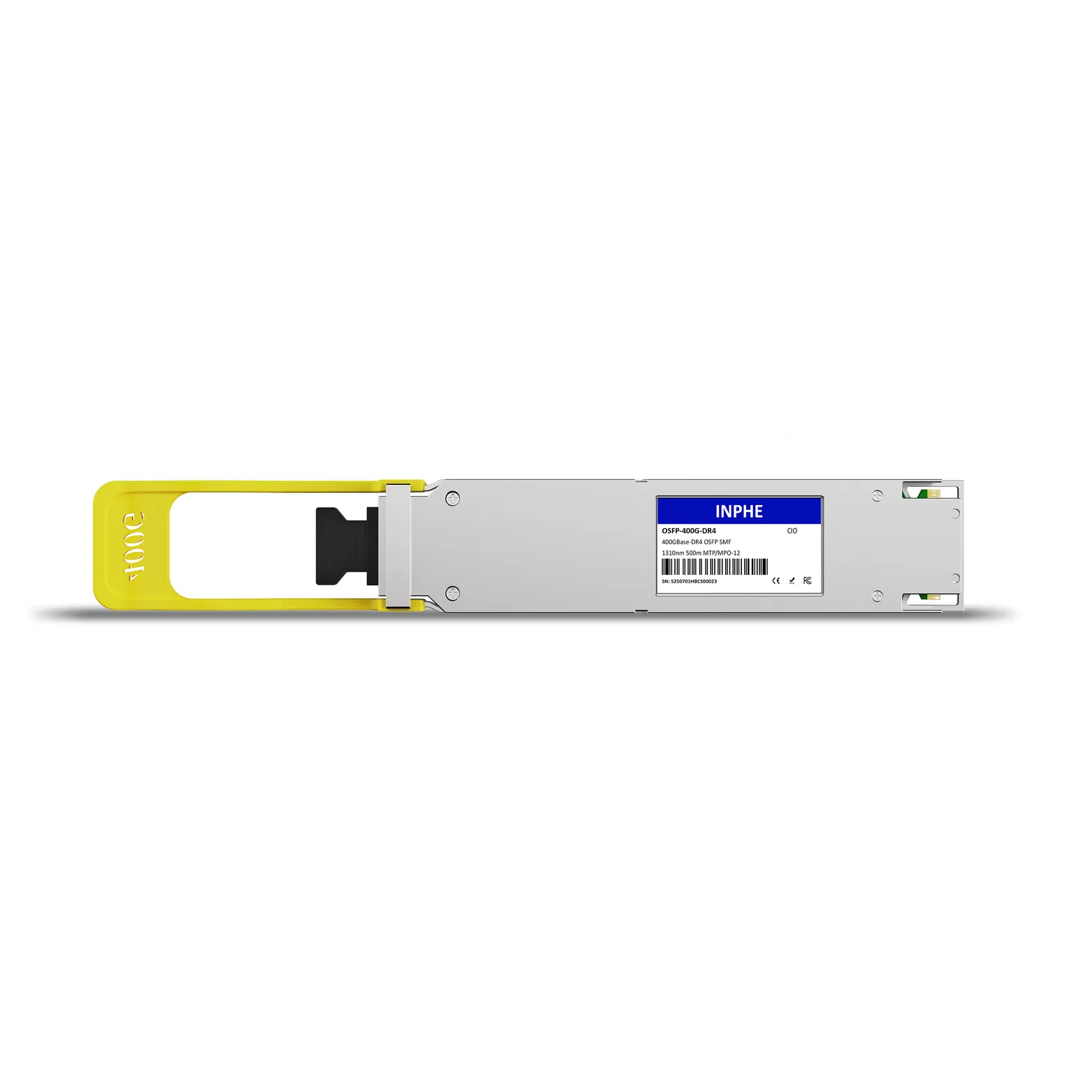

Arista OSFP-400G-DR4 XVR-10211-40 Compatible OSFP 400GBASE DR4 1310nm 500m SMF MPO/MTP-12 DDM/DOM Optics Transceiver, Support 4x 100G DR1, Finned Top

Name: Arista OSFP-400G-DR4 XVR-10211-40 Compatible OSFP 400GBASE DR4 1310nm 500m SMF MPO/MTP-12 DDM/DOM Optics Transceiver, Support 4x 100G DR1, Finned Top
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 709003001013
Price: 659 USD
Availability: InStock

#709003001013

US$659.00

INPHE: OSFP-400G-DR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Arista

Compatible Models:

OSFP-400G-DR4 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	OSFP-400G-DR4F
Form Factor	OSFP Finned Top	Max Data Rate	425Gbps
Wavelength	1310nm	Max Distance	500m
Connector	MTP/MPO 12 APC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-2.9 ~ +4.0dBm	Receiver Sensitivity	< -3.9dBm
Protocols	CMIS 5.2, IEEE 802.3bs-400GAUI-8, OSFP MSA, IEEE 802.3 bs-400GBASE-DR4	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
