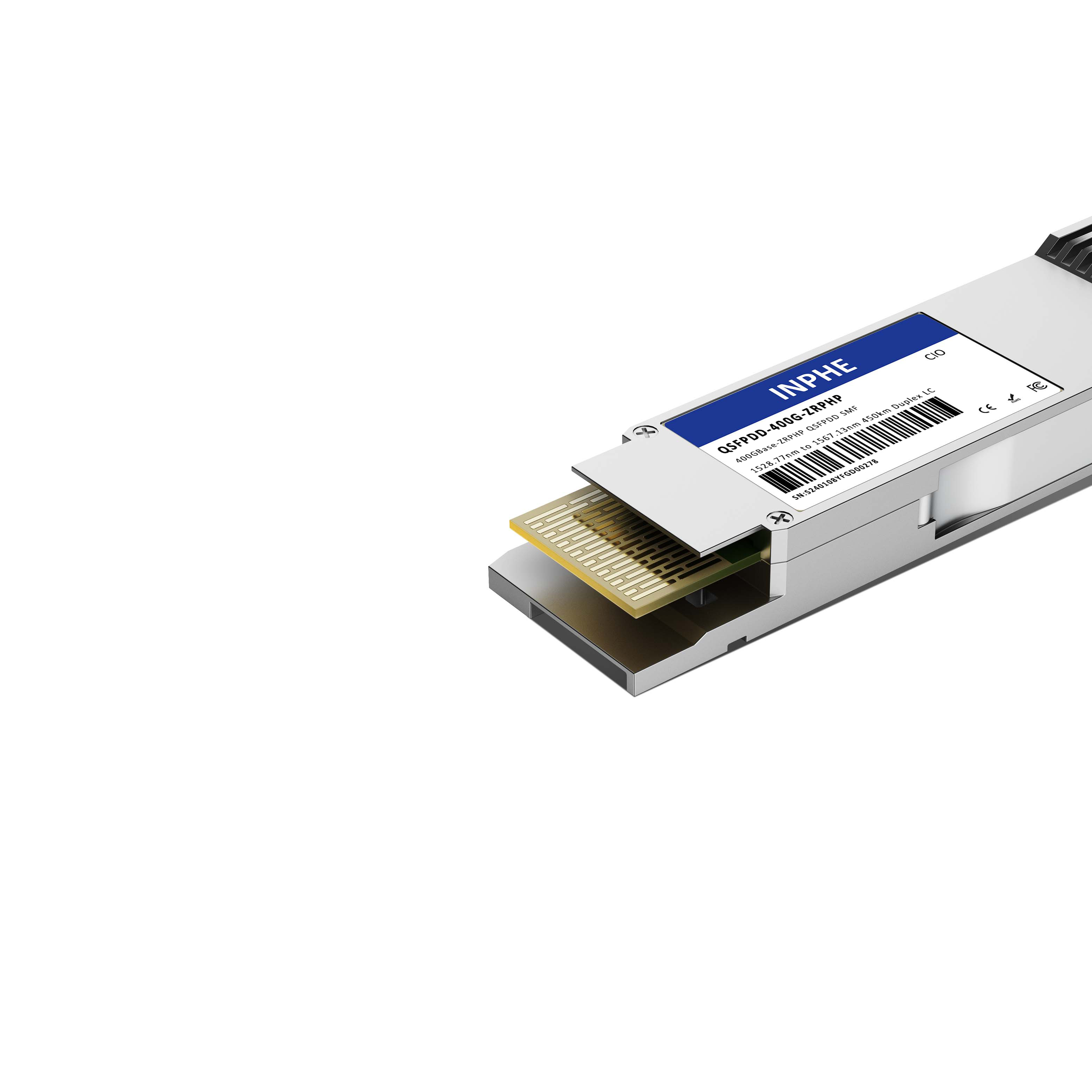

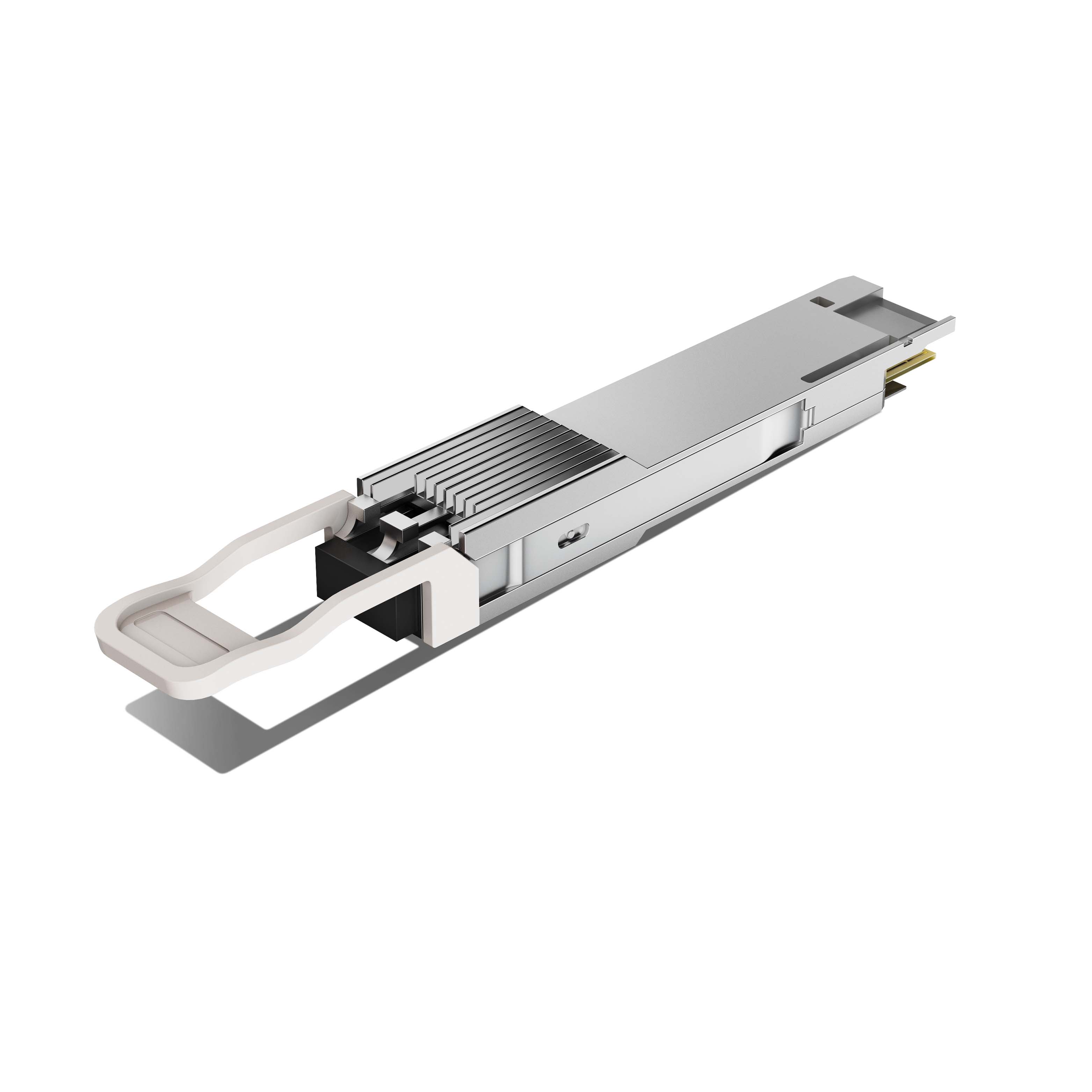

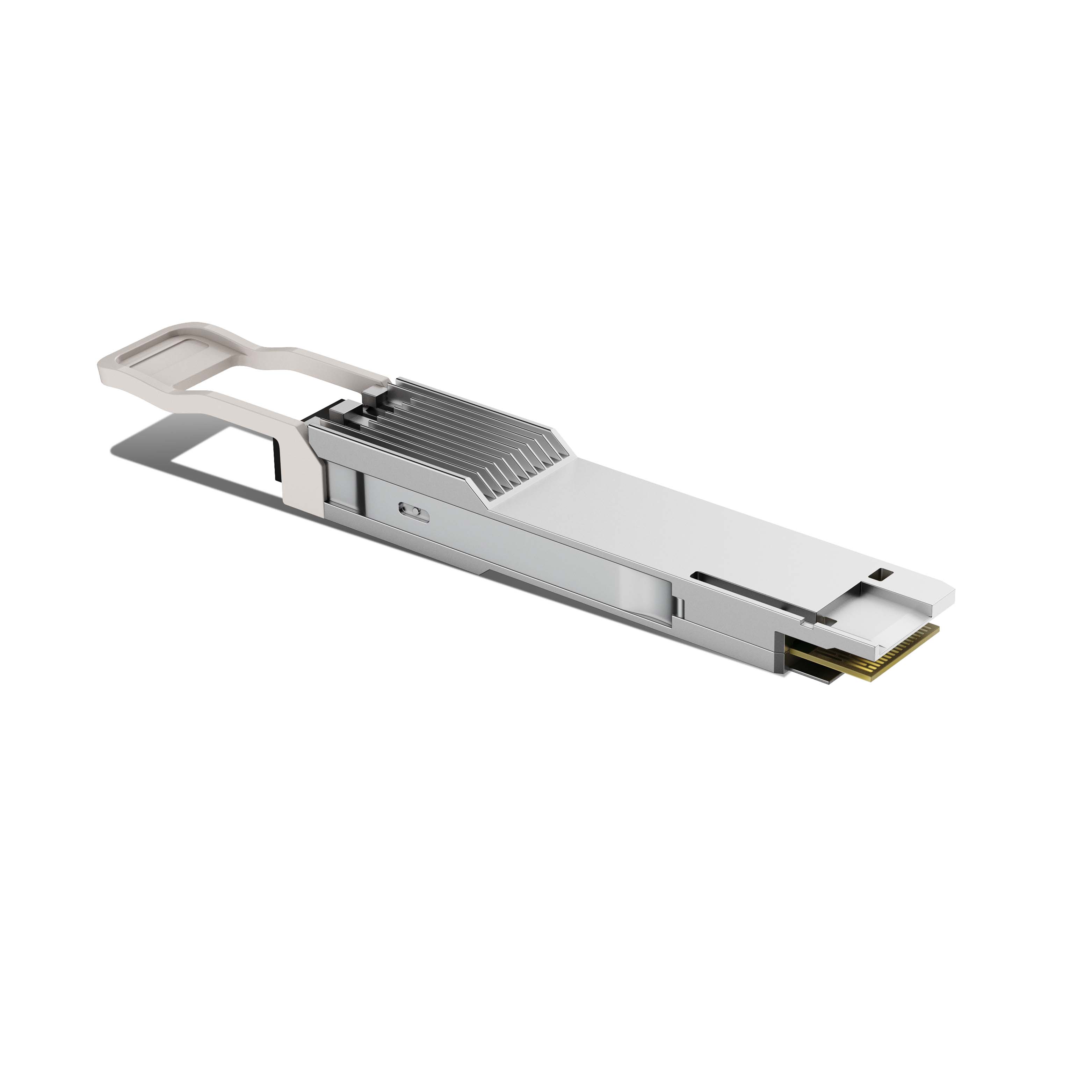

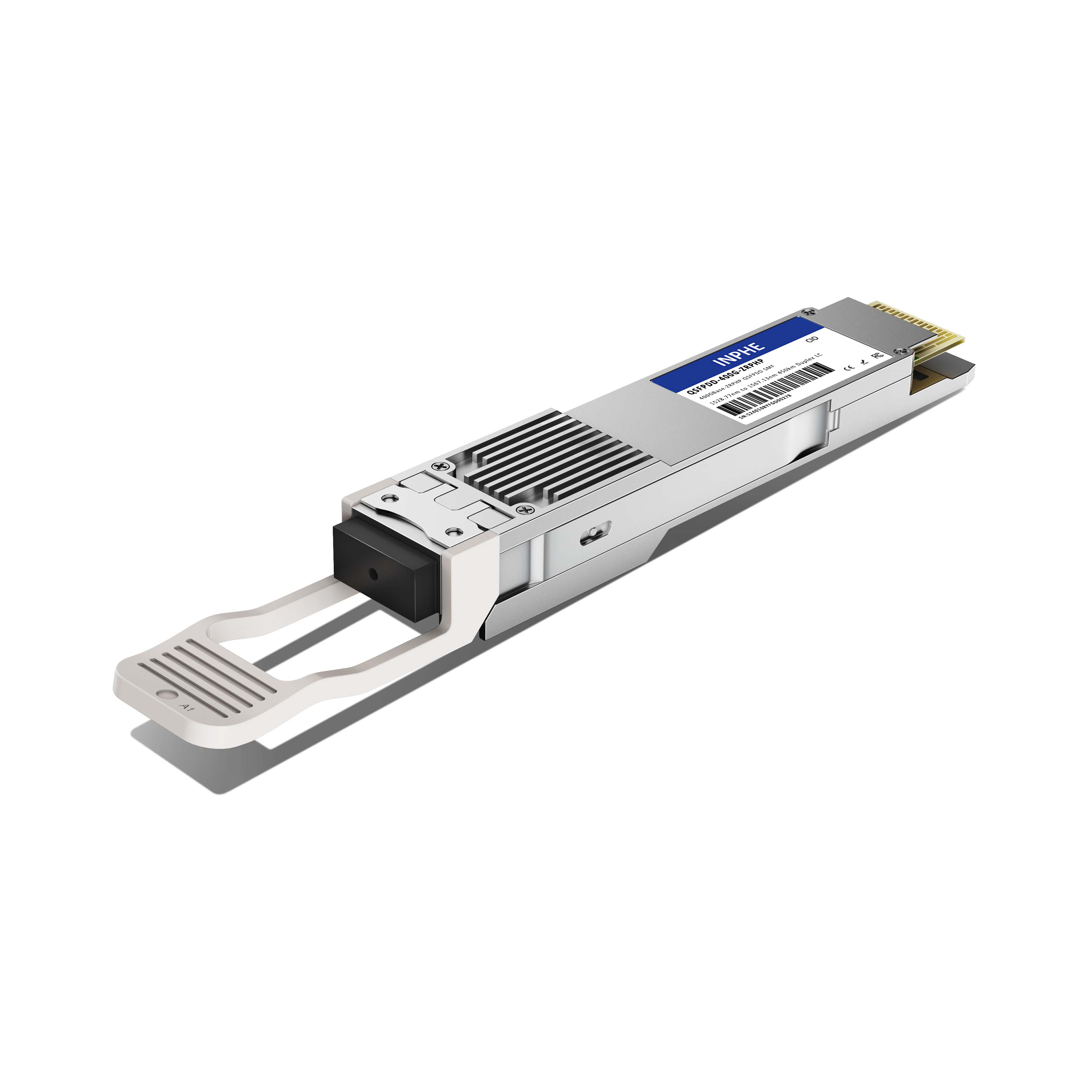

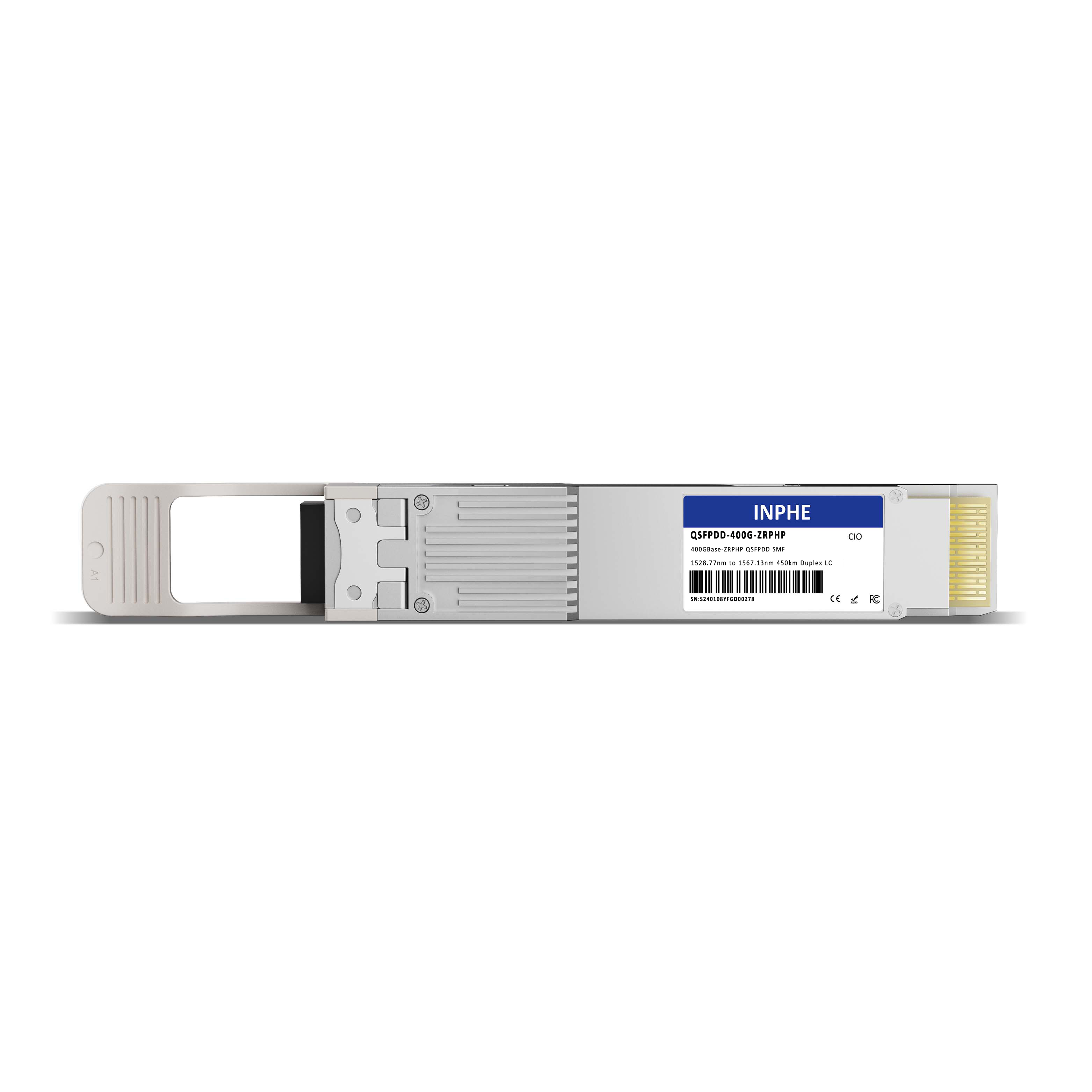

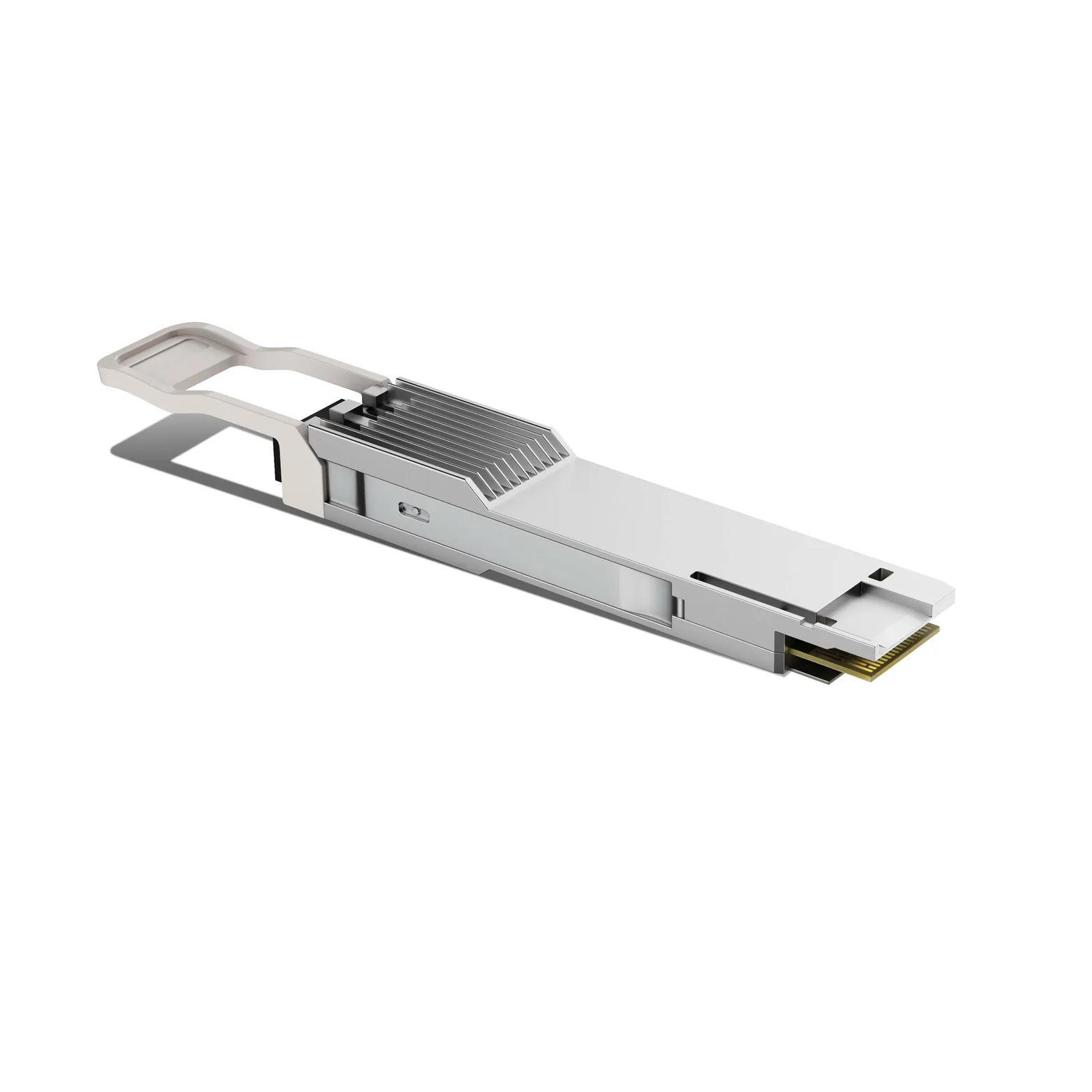

Cisco DP04QSDD-HE0 Compatible QSFP-DD 400GBASE ZR+ High Power 0-4dBm Coherent (DCO) DWDM Tunable CH13-CH61 480km SMF Duplex LC DDM/DOM Optics Transceiver

Name: Cisco DP04QSDD-HE0 Compatible QSFP-DD 400GBASE ZR+ High Power 0-4dBm Coherent (DCO) DWDM Tunable CH13-CH61 480km SMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 709001901028
Price: 5999 USD
Availability: InStock

#709001901028

US$5,999.00

INPHE: QDD-400G-ZRPHP

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

DP04QSDD-HE0 Customized

QTY:

Specifications

The Cisco DP04QSDD-HE0 compatible QSFP-DD 400G-ZR+HP is a Coherent DWDM Tunable Optics designed for high-capacity, long-distance transmission networks in data centers and telecom operators.

Featuring a EML transmitter and a Coherent receiver, and operating at a wavelength of DWDM Tunable (C13-C16; 1567.13nm to 1528.77nm), this Optics utilizes an Duplex LC connector to deliver 400G transmission.

Use O-FEC and 16QAM modulation techniques and exceptional reliability over link distances of up to 450km (OS2 SMF). With 0dBm Tx Power.

The operating mode and transmission distance of 400G-ZR+HP:

1. ≤450km (DWDM amplified, noise limited links)
2. ≤80km (Single wavelength unamplified, loss limited links)
3. ≤450km (Single wavelength amplified, noise limited links)

The INPHE 400G-ZR+HP uses Marvell 7nm DSP.

It supports both DDM/DOM (Digital Optical Monitoring)

Primary Application:
1. 400G Point-to-Point Connections
2. 400G DWDM Connections

Vendor Name	INPHE	Part Number	QDD-400G-ZR+HP
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1528.77 ~ 1567.13nm (Tunable)	Max Distance	480km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	Coherent
Transmitter Power	-10.0 ~ +1.0dBm DWDM Amplified, +3.0 ~ +4.0dBm Single wavelength unamplified	Receiver Sensitivity	< -12.0dBm DWDM Amplified, < -22.0dBm Single wavelength unamplified
Protocols	Open ZR+ MSA 2.0, OIF-400ZR-02.0, OIF-CMIS-05.2, OIF-C-CMIS-01.2, QSFP-DD-Hardware-Rev6.3, IEEE Std 802.3-2018	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 years
