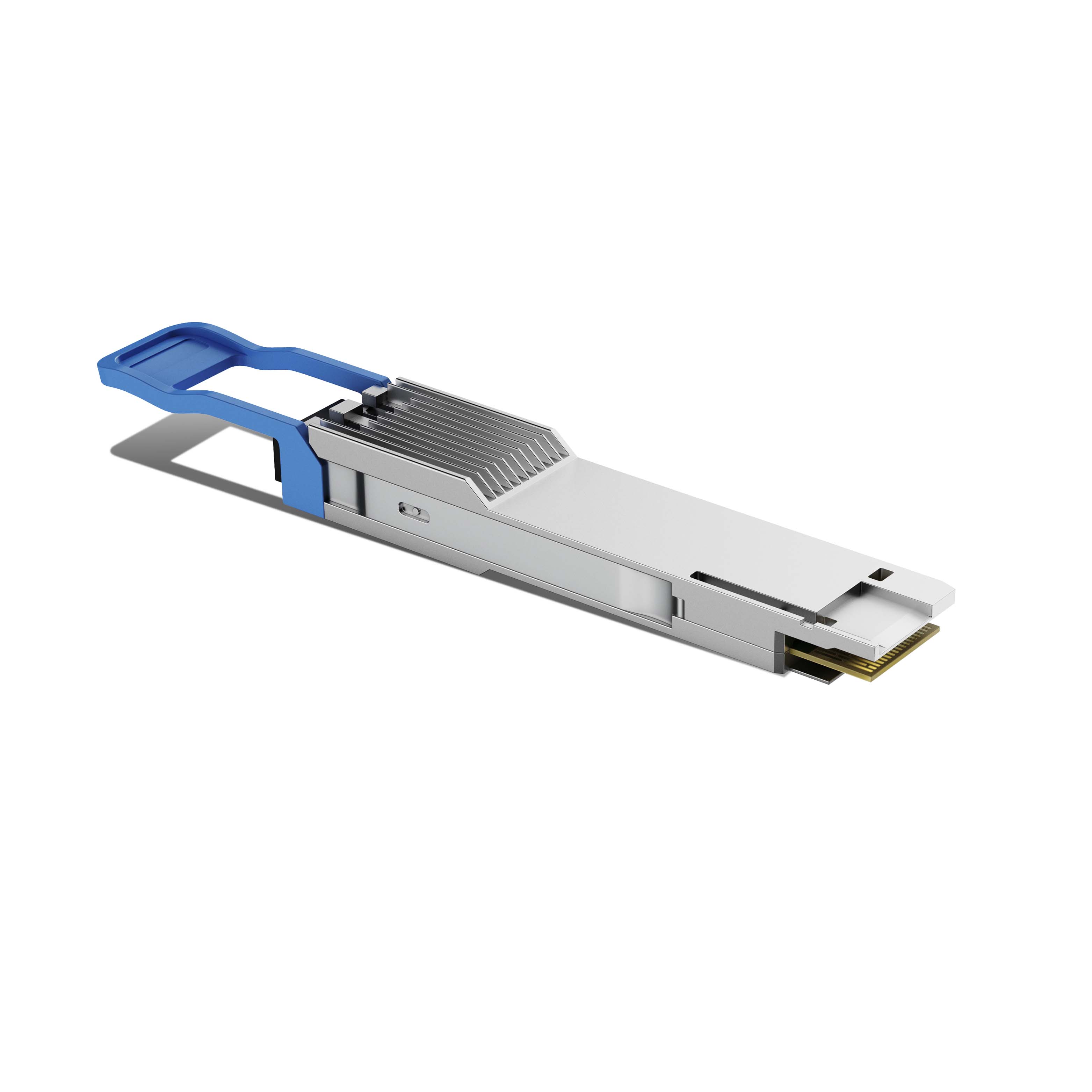

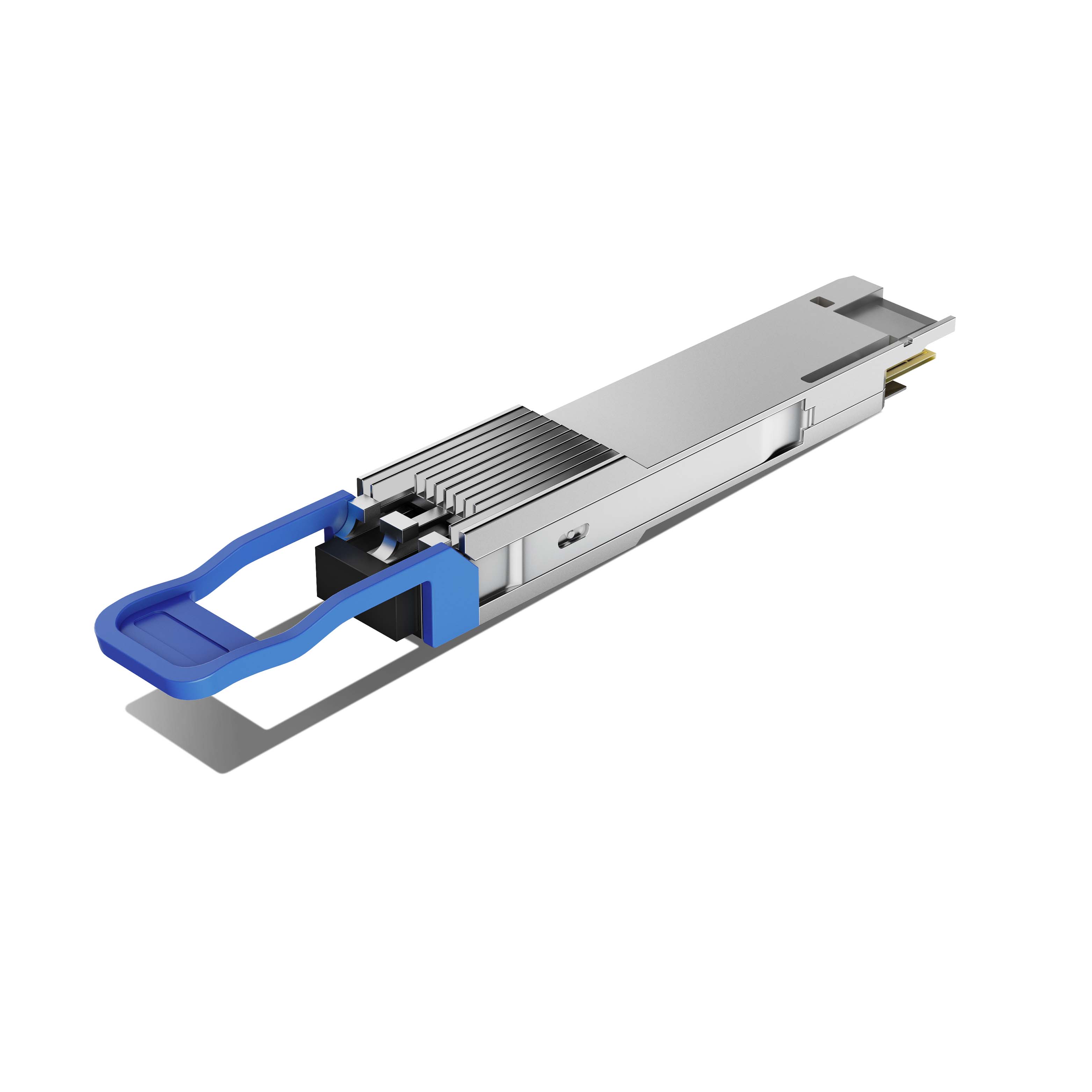

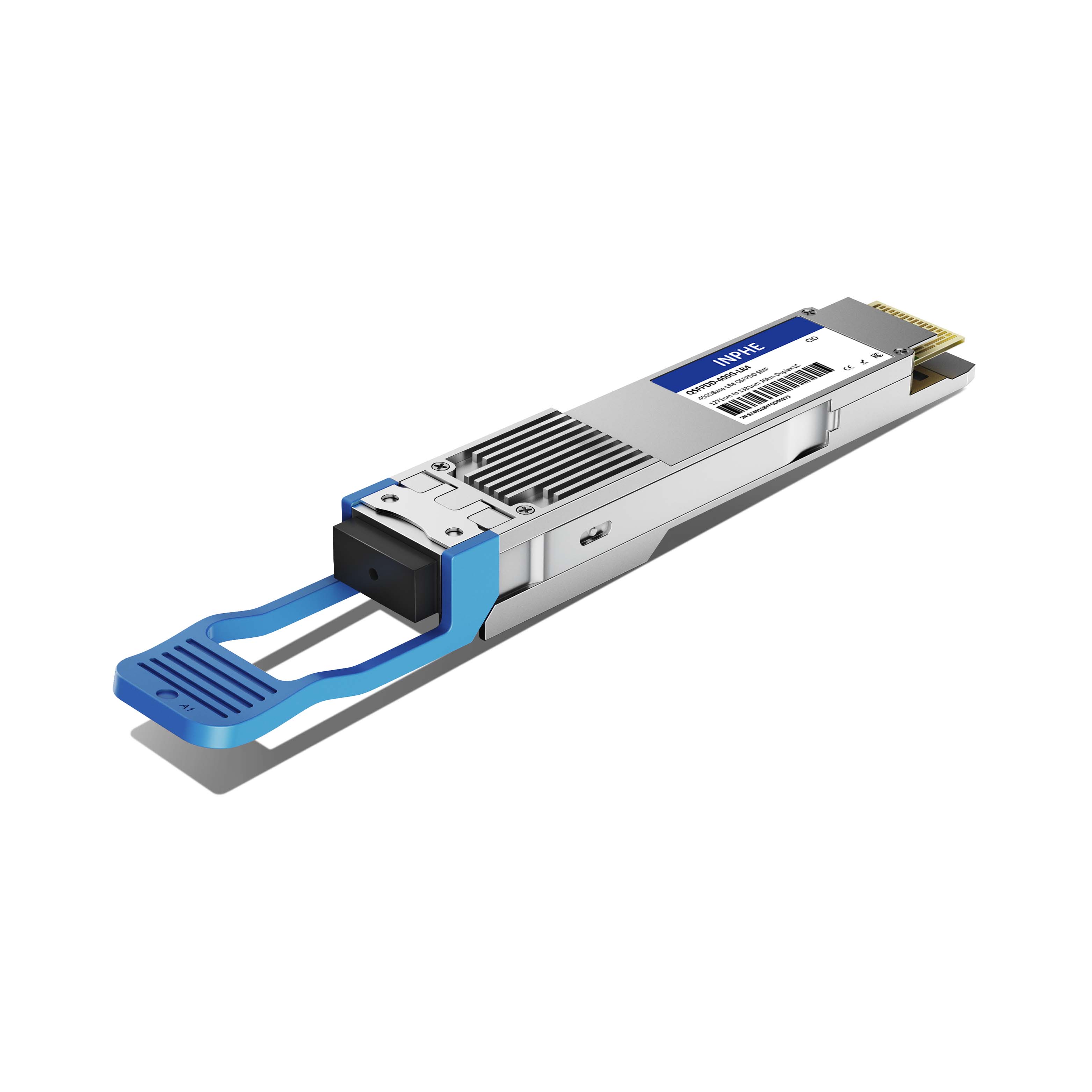

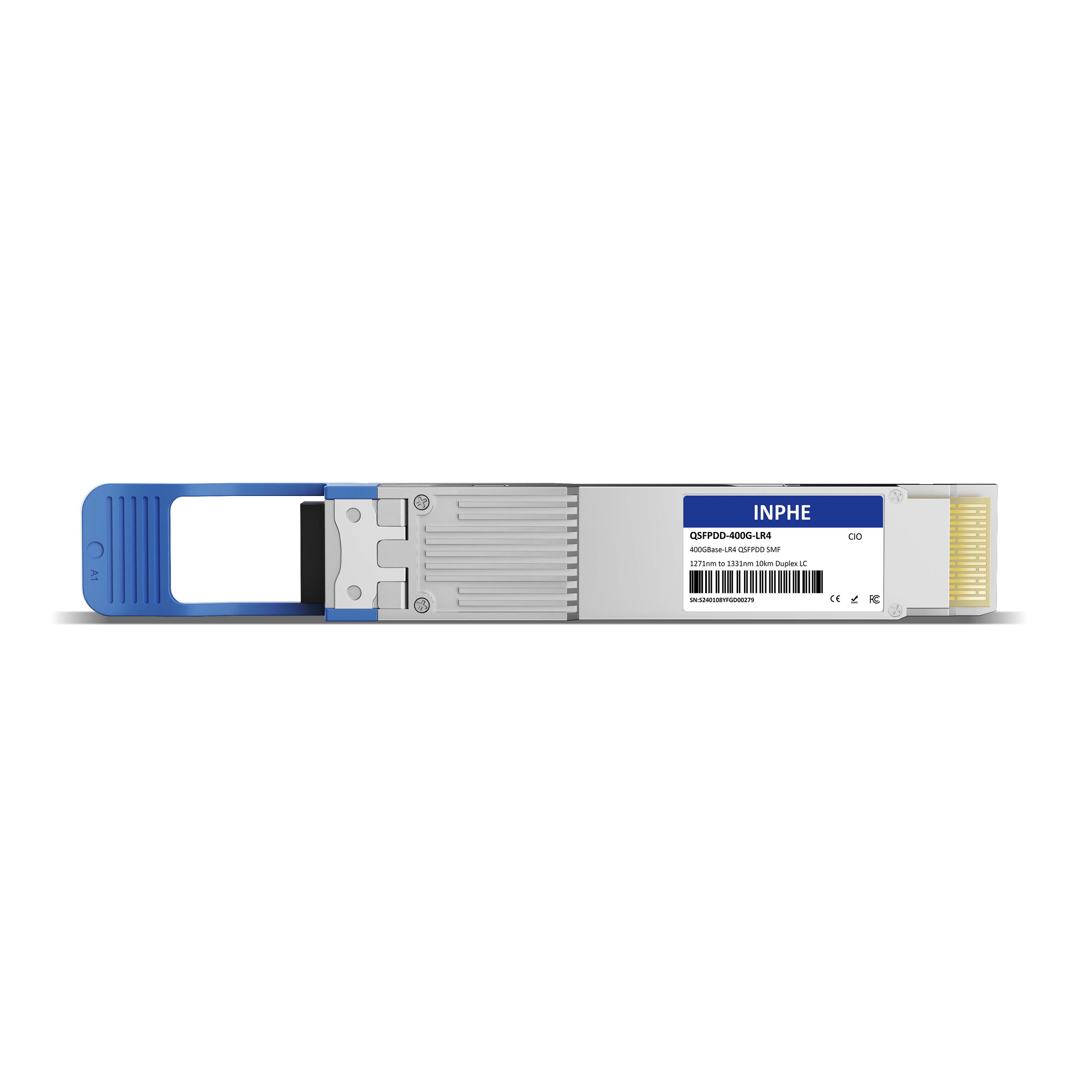

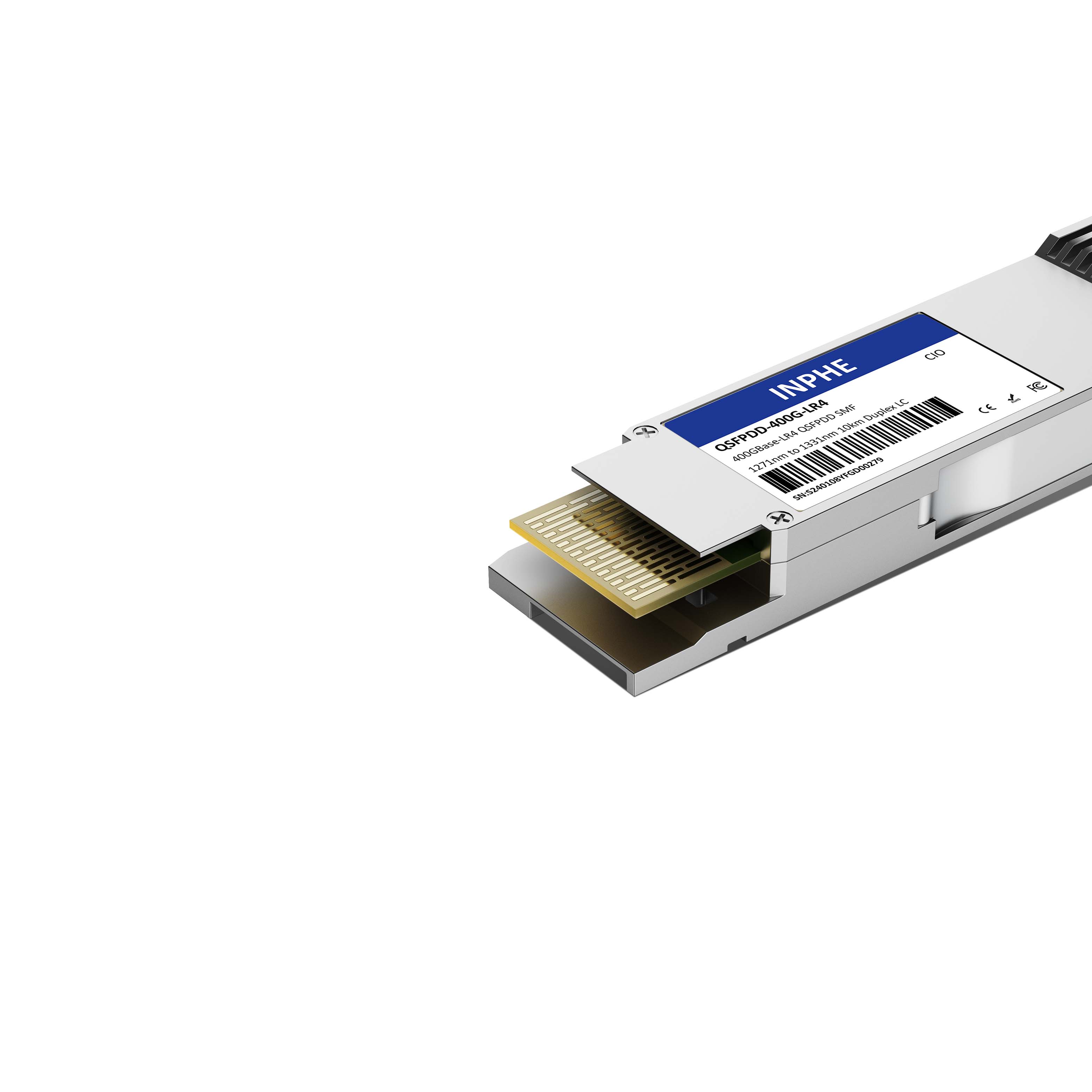

Flexoptix D.164HG.10.C Compatible QSFP-DD 400GBASE LR4 1271/1291/1311/1331nm 10km SMF Duplex LC DDM/DOM Optics Transceiver

Name: Flexoptix D.164HG.10.C Compatible QSFP-DD 400GBASE LR4 1271/1291/1311/1331nm 10km SMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 709000401145
Price: 599 USD
Availability: InStock

#709000401145

US$599.00

INPHE: D.164HG.10.C

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

D.164HG.10.C Customized

QTY:

Specifications

The Flexoptix D.164HG.10.C compatible QSFP-DD 400G-LR4 Optics is designed for long-distance single-mode connections in data centers and telecom.

Featuring a EML transmitter and a PIN receiver, and operating at a wavelength of CWDM4 (1271nm/1291nm/1311nm/1331nm), this Optics utilizes an Duplex LC connector to deliver 400G transmission and exceptional reliability over link distances of up to 10km (OS2 SMF). It is an ideal choice for long-distance, high-speed transmission applications within data centers and enterprise networks.

The INPHE 400G-LR4 uses Marvell 7nm DSP.

It supports both DDM/DOM (Digital Optical Monitoring)

Primary Application:
1. 400G Point-to-Point Connections

Vendor Name	INPHE	Part Number	QDD-400G-LR4
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1310nm	Max Distance	10km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-2.8 ~ +4.0dBm	Receiver Sensitivity	< -6.6dBm
Protocols	IEEE 802.3bs, QSFP-DD MSA	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
