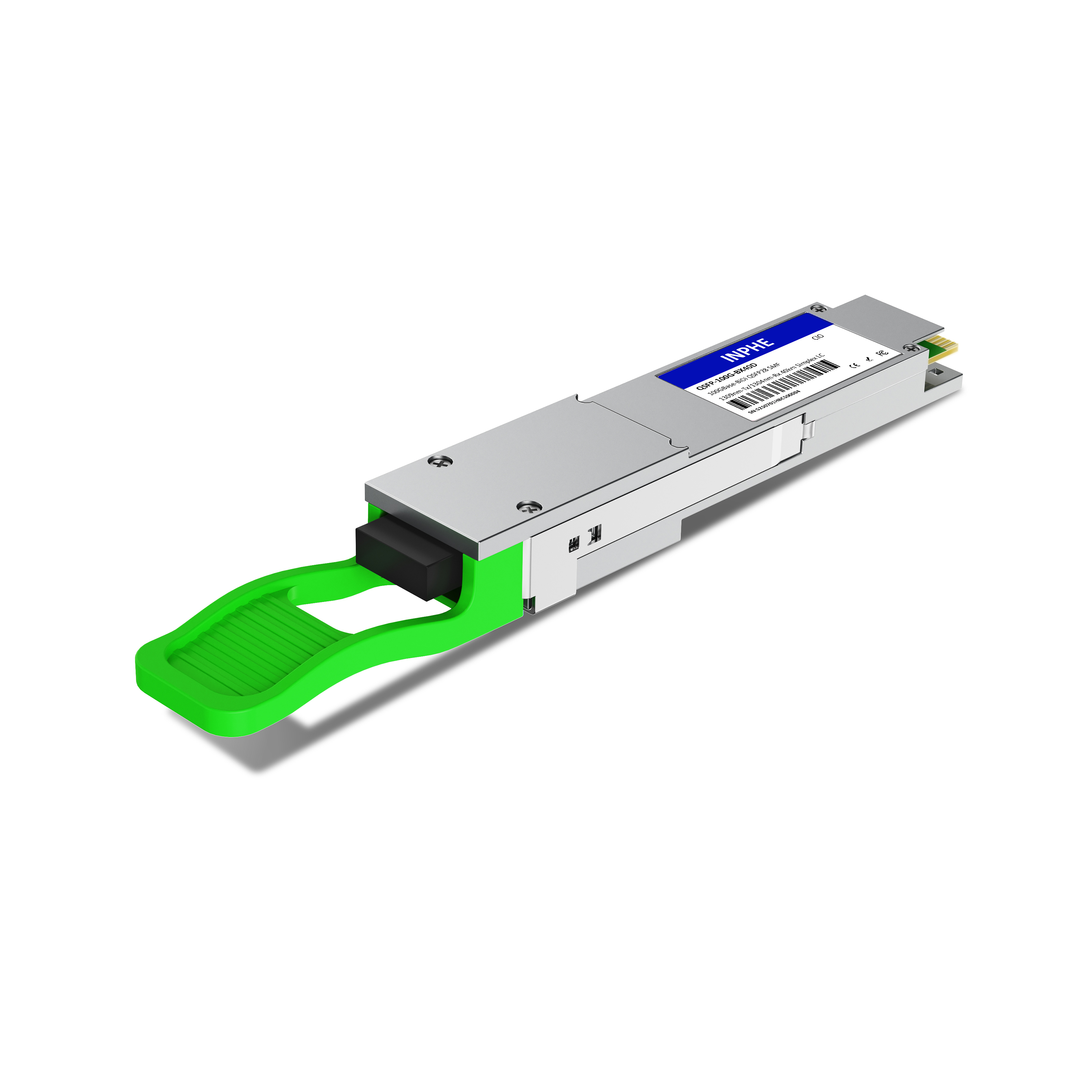

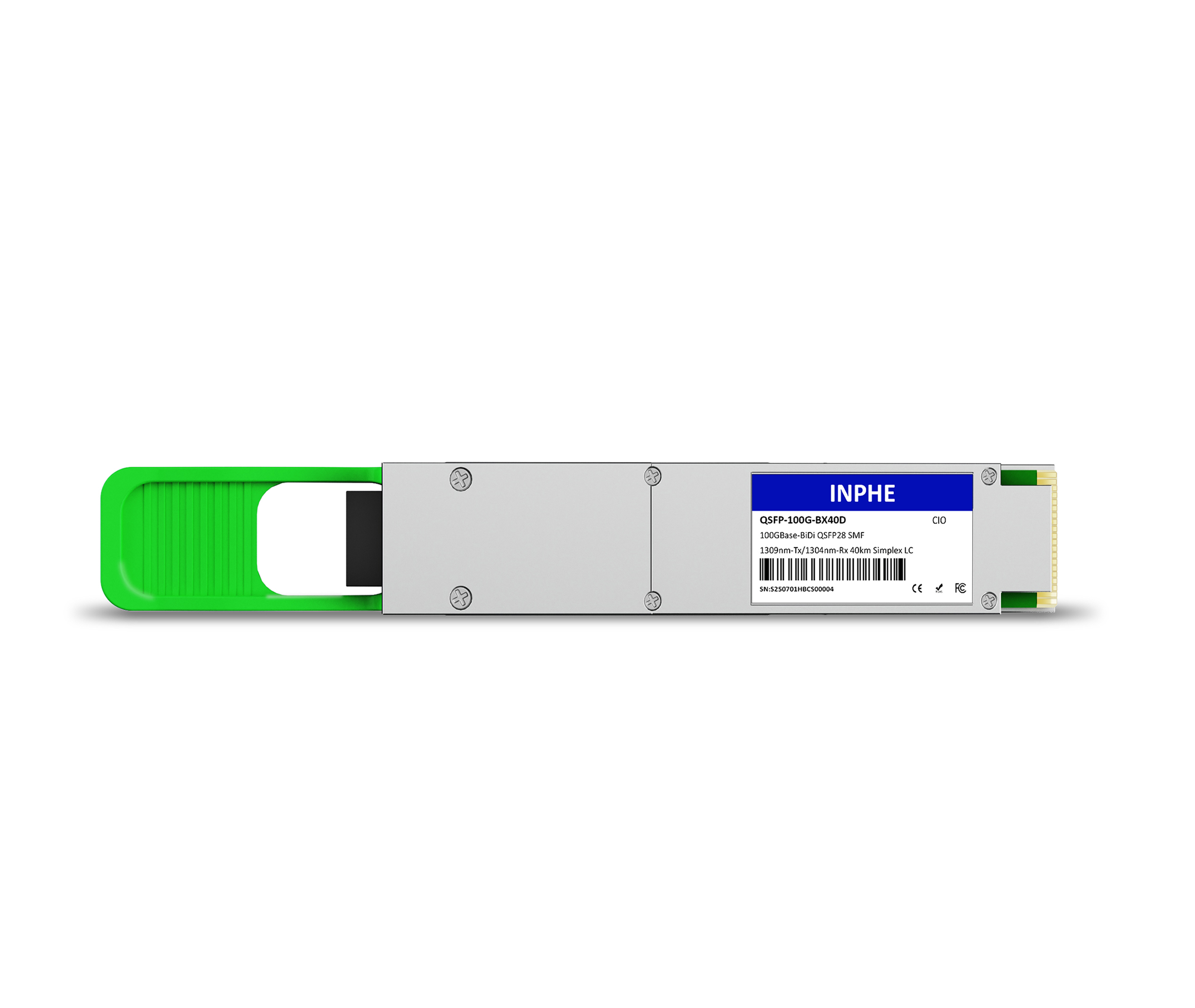

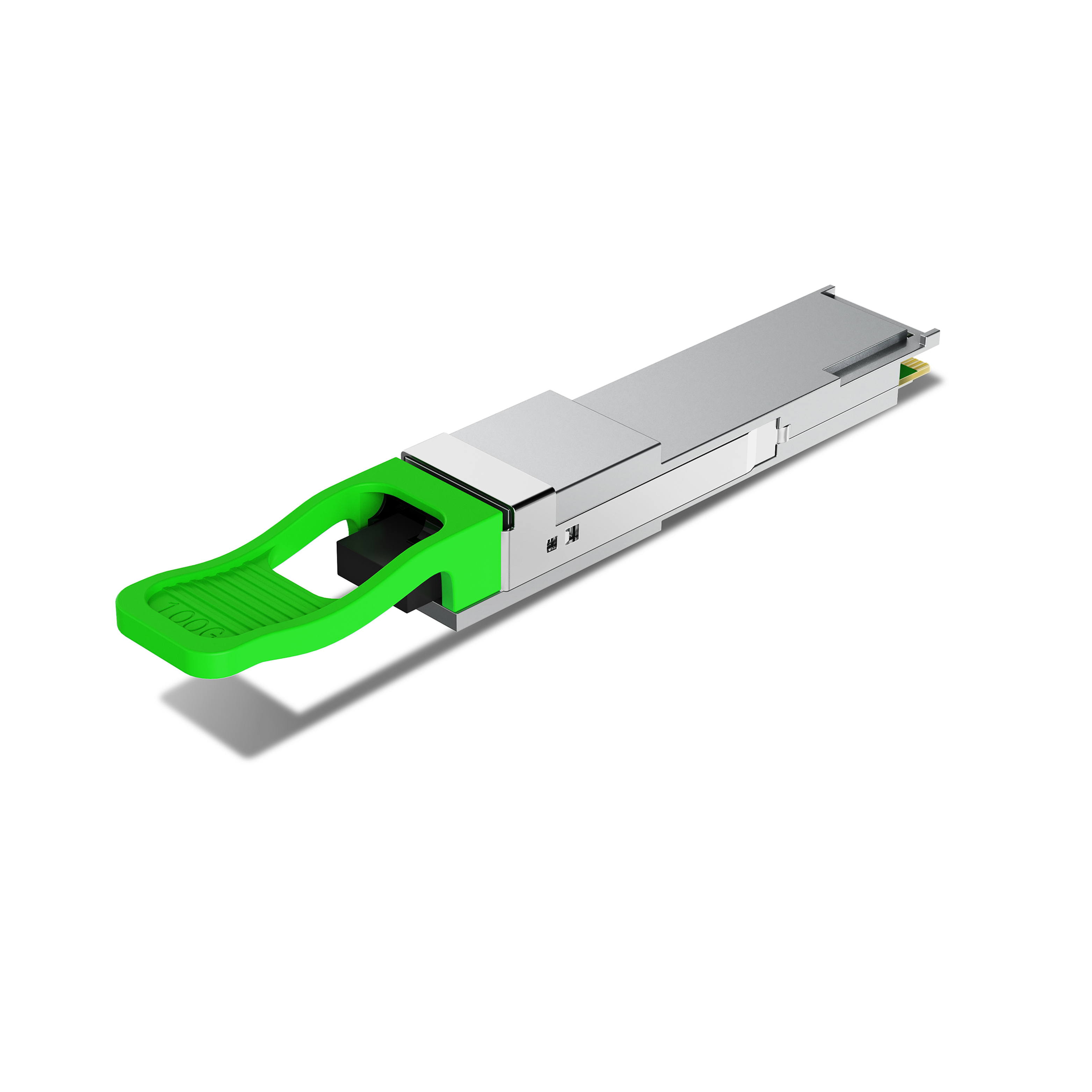

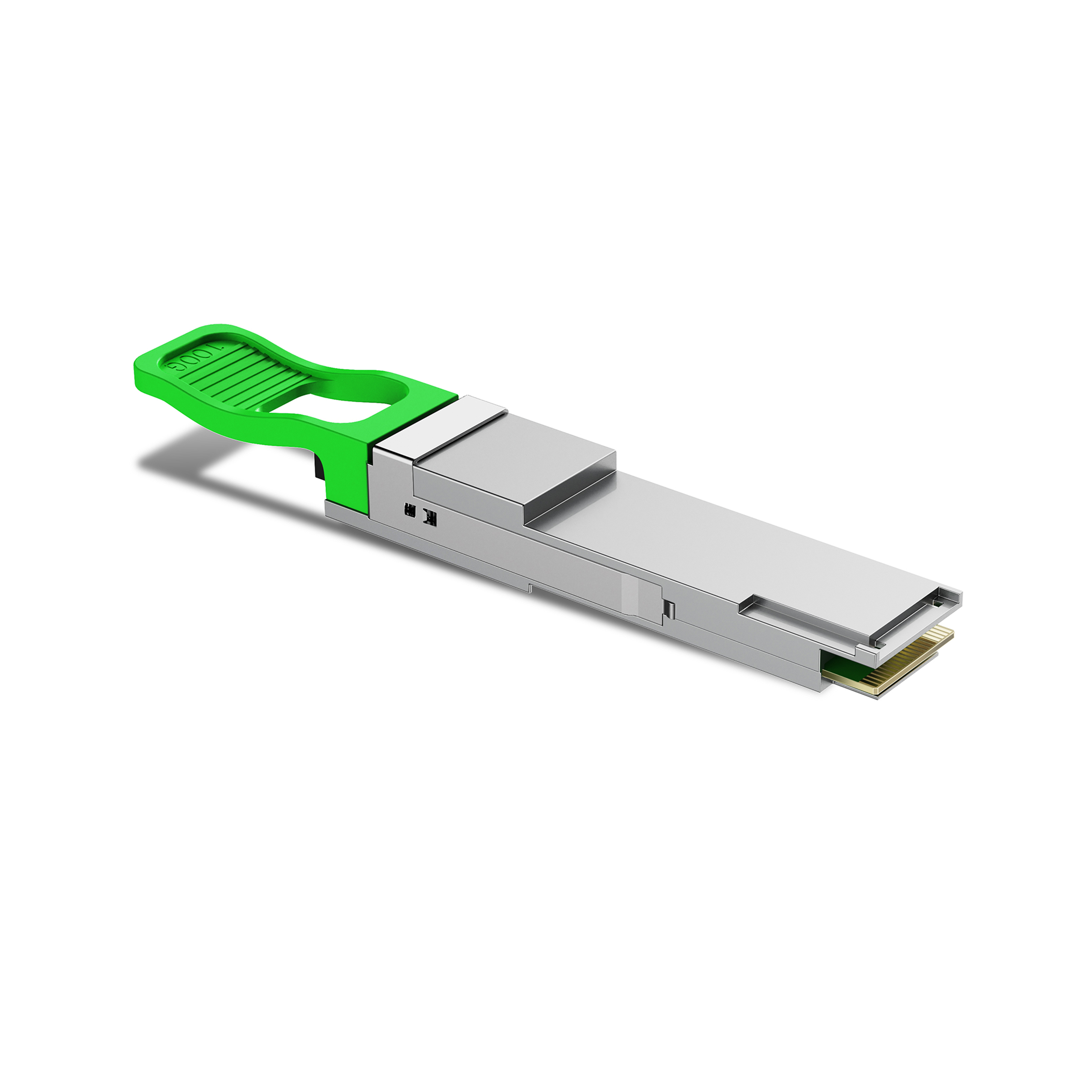

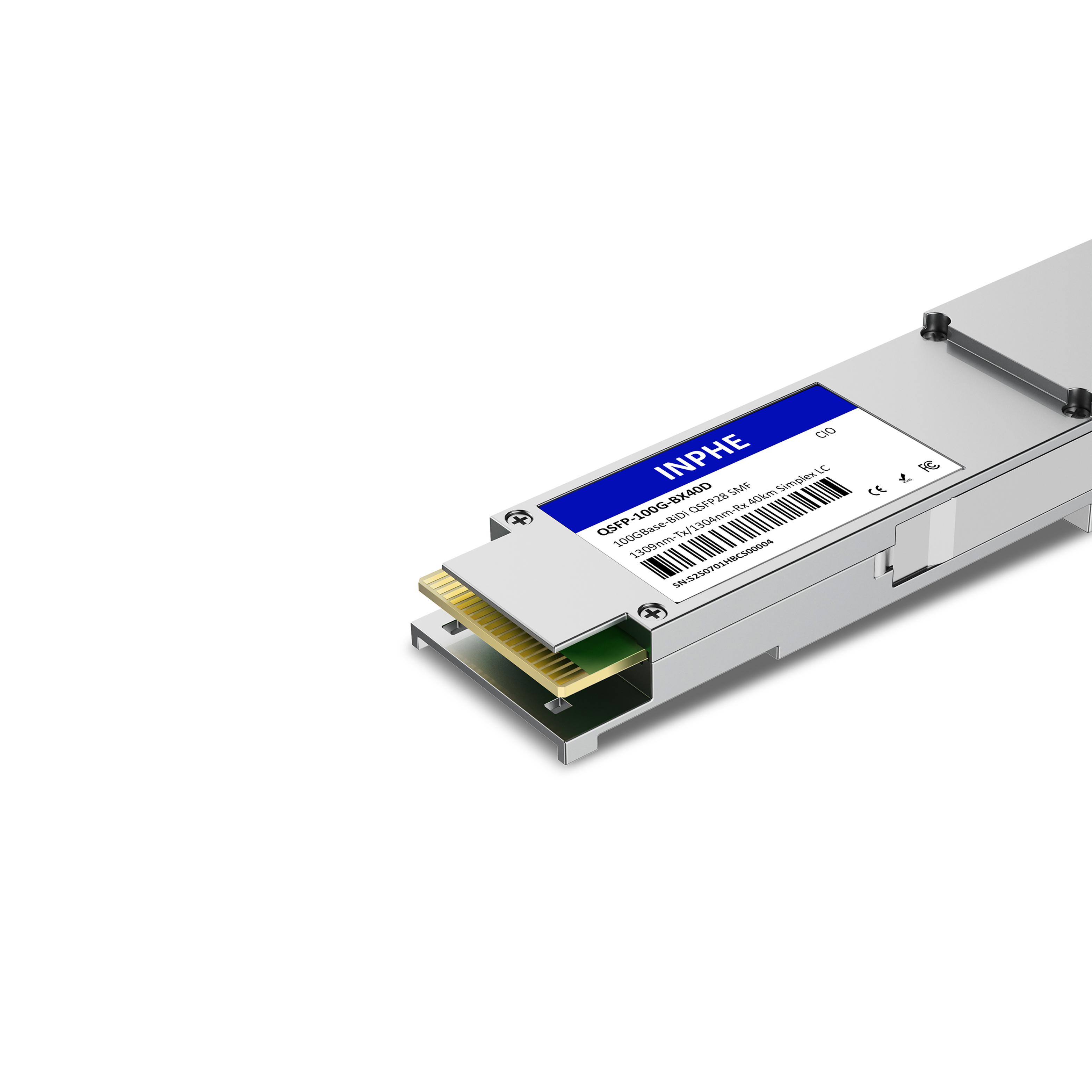

Huawei OSN010N11 Compatible QSFP28 100G BiDi 1309.14nm-Tx/1304.58nm-Rx 40km SMF Simplex LC With Dual CDR DDM/DOM Optics Transceiver

Name: Huawei OSN010N11 Compatible QSFP28 100G BiDi 1309.14nm-Tx/1304.58nm-Rx 40km SMF Simplex LC With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 707003901056
Price: 599 USD
Availability: InStock

#707003901056

US$599.00

INPHE: OSN010N11

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista Huawei HPE (Aruba) Edge CorE Nokia Coherent (Finisar) Extreme Celestica Drivenets More +

Compatible Models:

OSN010N11 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-100G-BX40D
Form Factor	QSFP28	Max Data Rate	106.25Gb/s
Wavelength	1309.14nm-Tx/1304.58nm-Rx	Max Distance	40km
Connector	Simplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	APD
Transmitter Power	+1.7 ~ +7.1dBm	Receiver Sensitivity	< -13.8dBm
Protocols	QSFP28 MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
