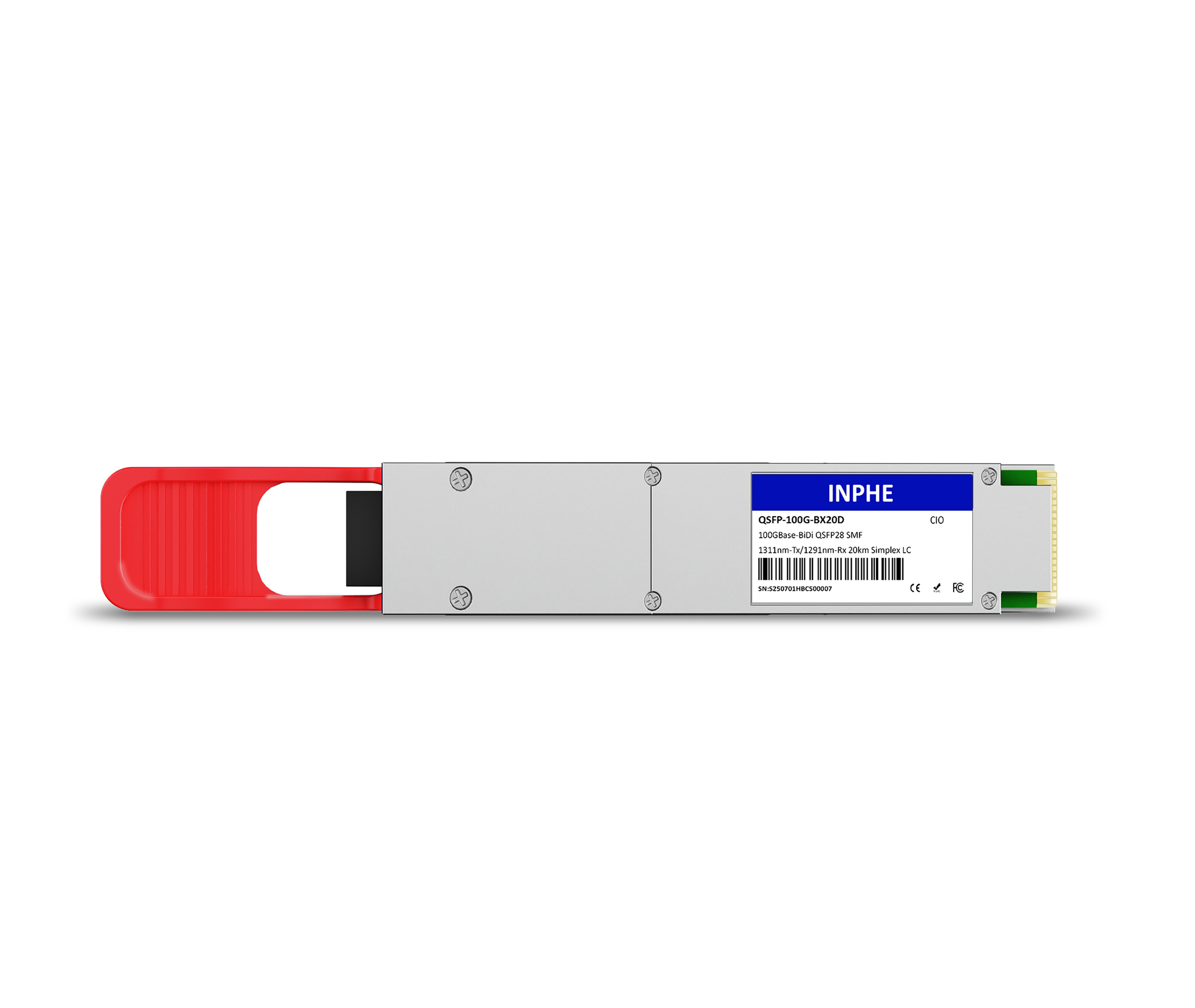

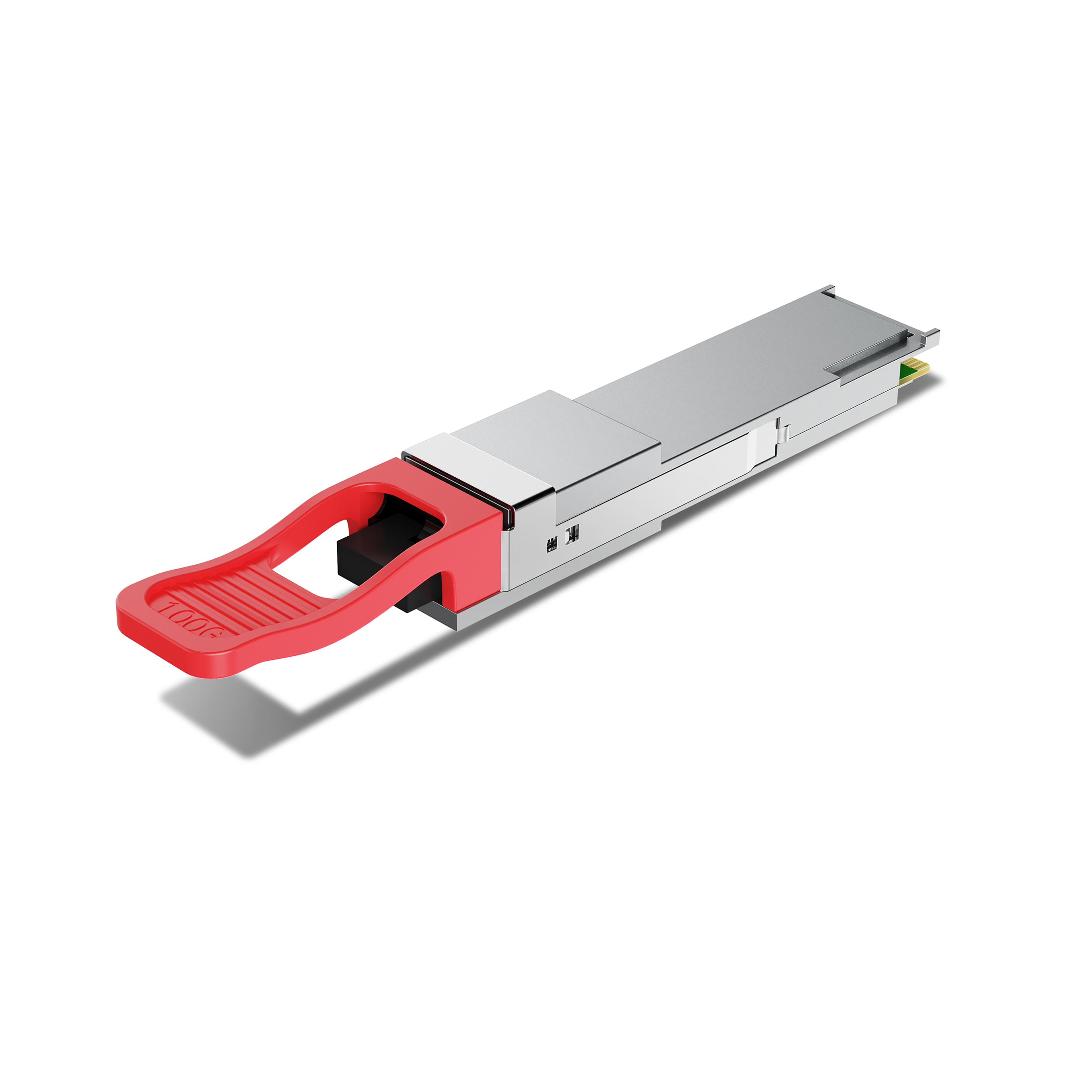

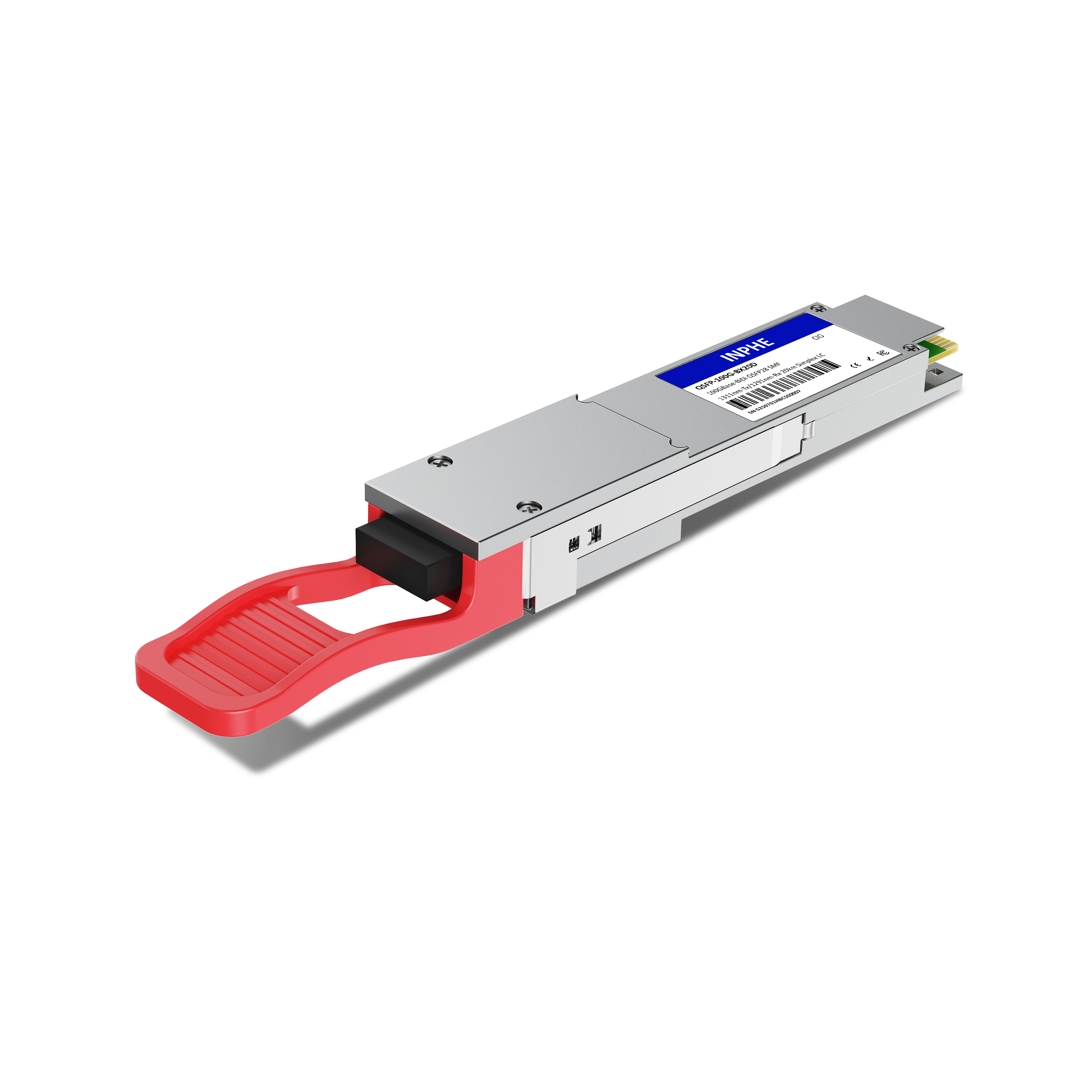

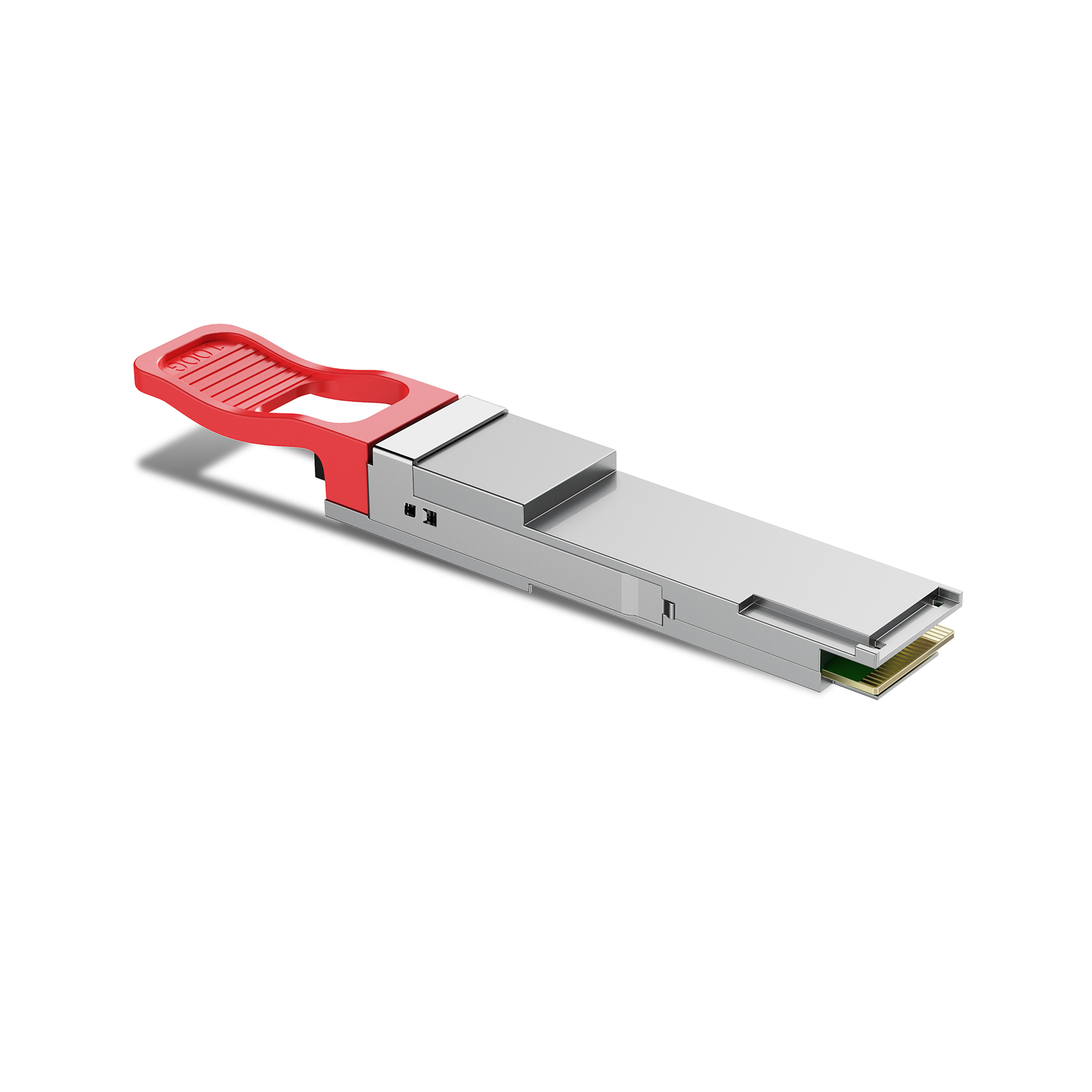

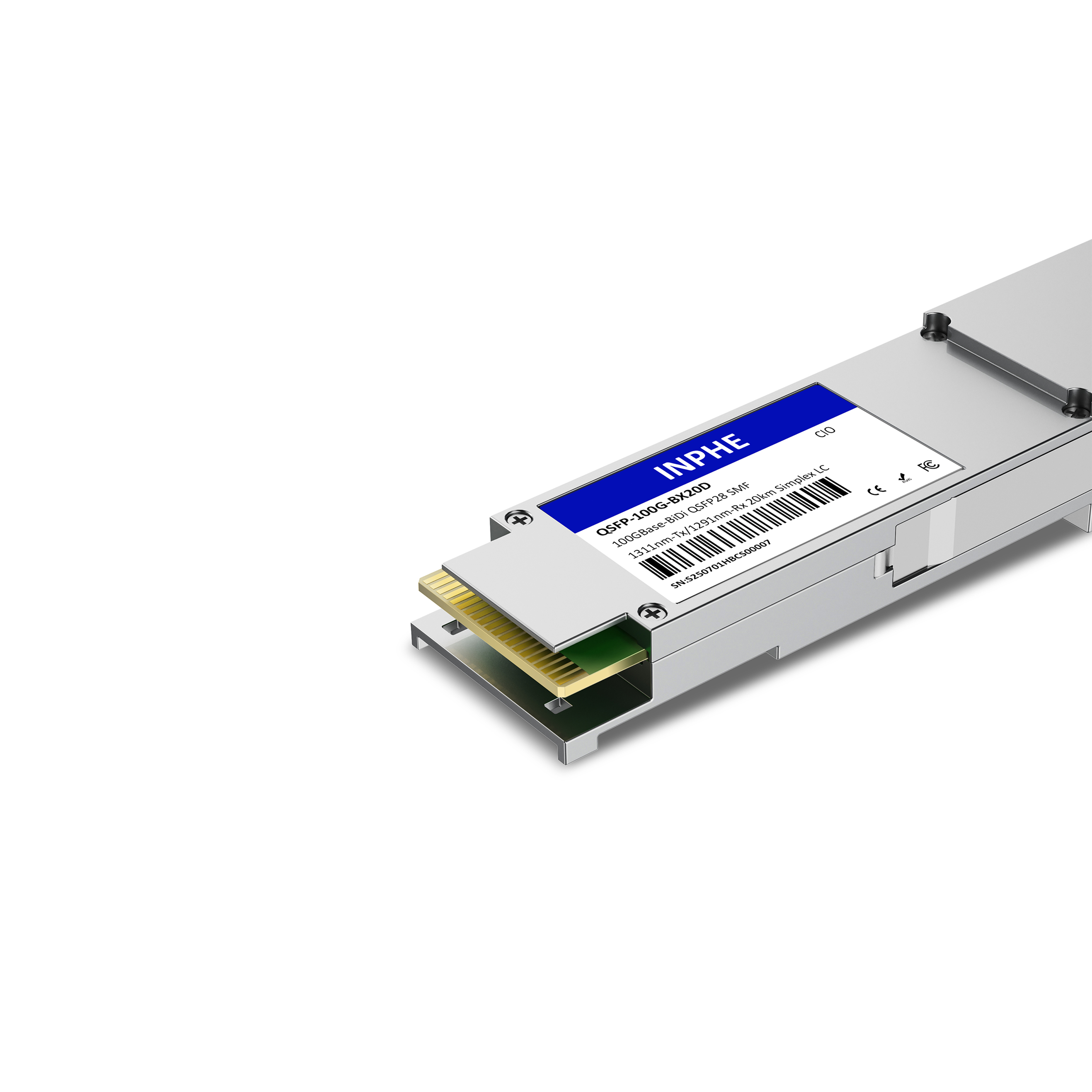

Juniper QSFP-100G-LR20BD-D Compatible QSFP28 100G BiDi 1311nm-Tx/1291nm-Rx 20km SMF Simplex LC DDM/DOM Optics Transceiver

The Juniper QSFP-100G-LR20BD-D compatible QSFP28 100G-BX20D Optics is specifically designed for long-distance (20km) single-mode singe-fiber links.

The Tx of INPHE's 100G-BX20D uses EML (External Modulation Laser); the Rx uses PIN. While ensuring excellent performance, it also guarantees high stability.

Operating at a wavelength of Tx 1311nm/Rx 1291nm and employing a Singe LC/UPC single-mode connector, it provides point-to-point connectivity over link distances of up to 20km (OS2 SMF fiber).

100G LR1 BiDi 20km optics utilize a single strand of single-mode fiber, enabling users to achieve double the bandwidth while utilizing the same quantity of dark fiber. This helps telecommunications operators(ISP) and data center users realize significant savings on dark fiber costs and simplifies cabling infrastructure.

It supports DDM/DOM (Digital Optical Monitoring).
