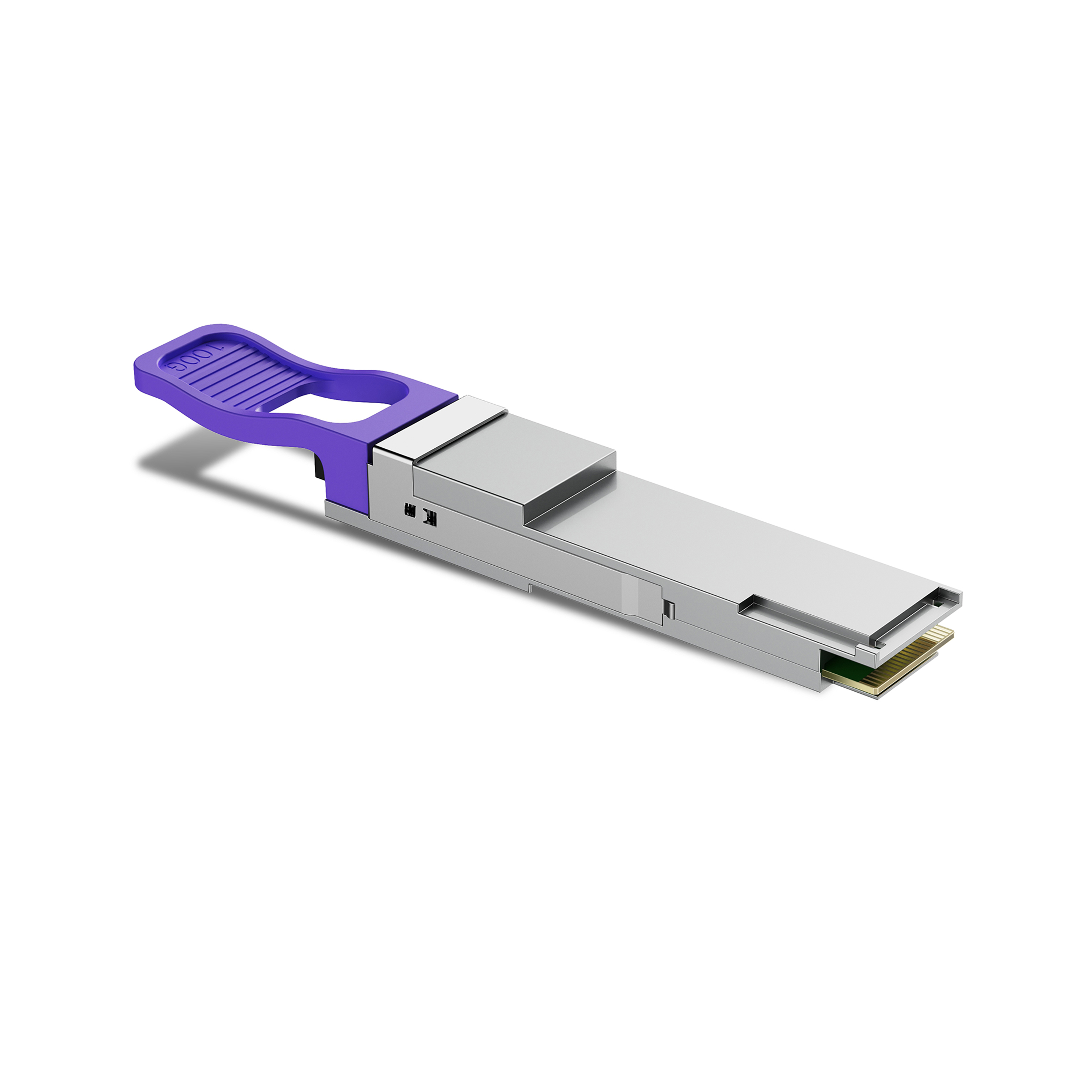

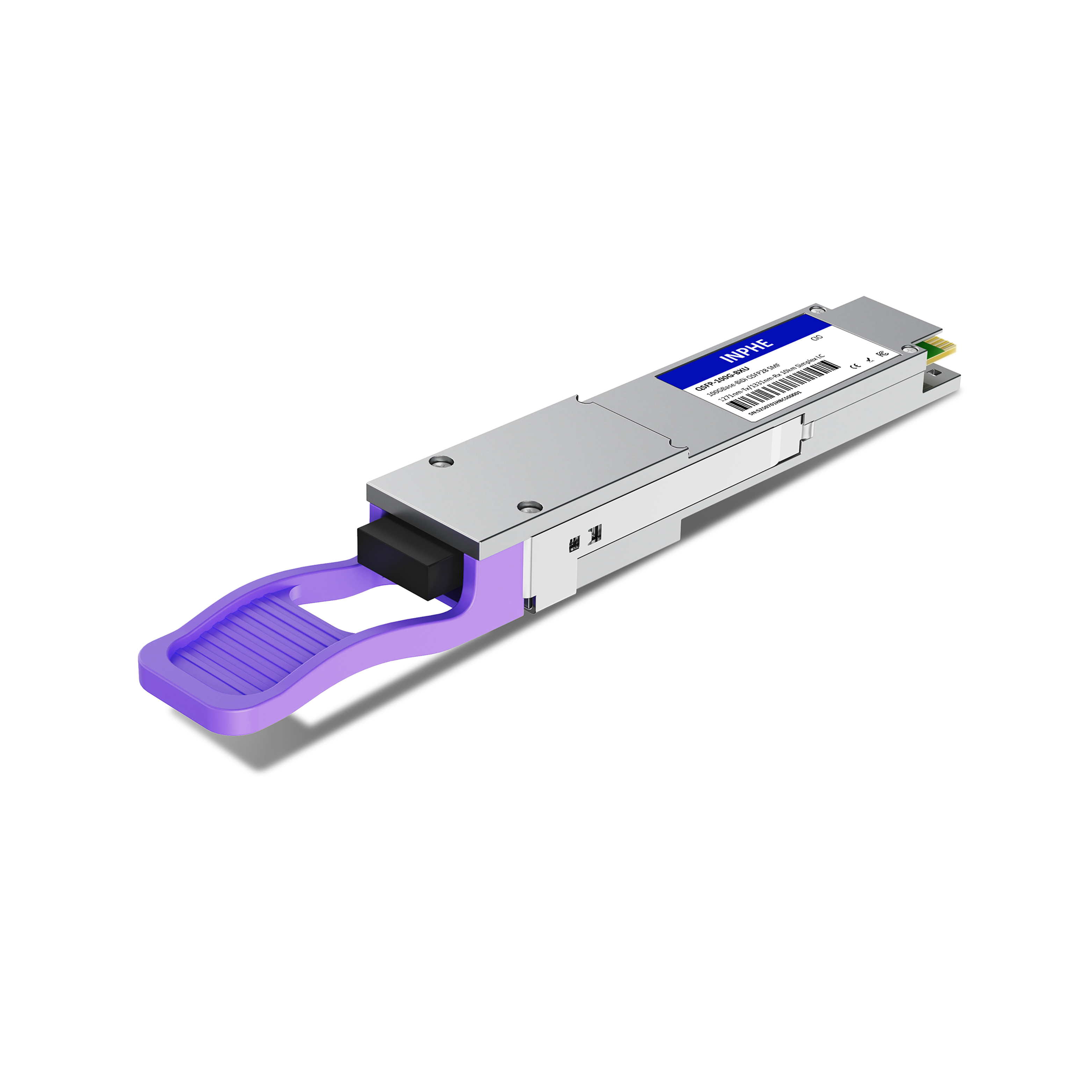

Palo Alto Networks PAN-QSFP28-100GBASE-LR4 Compatible QSFP28 100G BiDi 1271nm-Tx/1331nm-Rx 10km SMF Simplex LC With Dual CDR DDM/DOM Optics Transceiver

Name: Palo Alto Networks PAN-QSFP28-100GBASE-LR4 Compatible QSFP28 100G BiDi 1271nm-Tx/1331nm-Rx 10km SMF Simplex LC With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 707003201090
Price: 299 USD
Availability: InStock

#707003201090

US$299.00

INPHE: PAN-QSFP28-100GBASE-LR4

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista Nokia Huawei Dell FS.COM Flexoptix Precision Coherent (Finisar) Fortinet More +

Compatible Models:

PAN-QSFP28-100GBASE-LR4 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-100G-BXU
Form Factor	QSFP28	Max Data Rate	106.25Gb/s
Wavelength	1271nm-Tx/1331nm-Rx	Max Distance	10km
Connector	Simplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-1.4 ~ +4.5dBm	Receiver Sensitivity	< -6.1dBm
Protocols	QSFP28 MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
