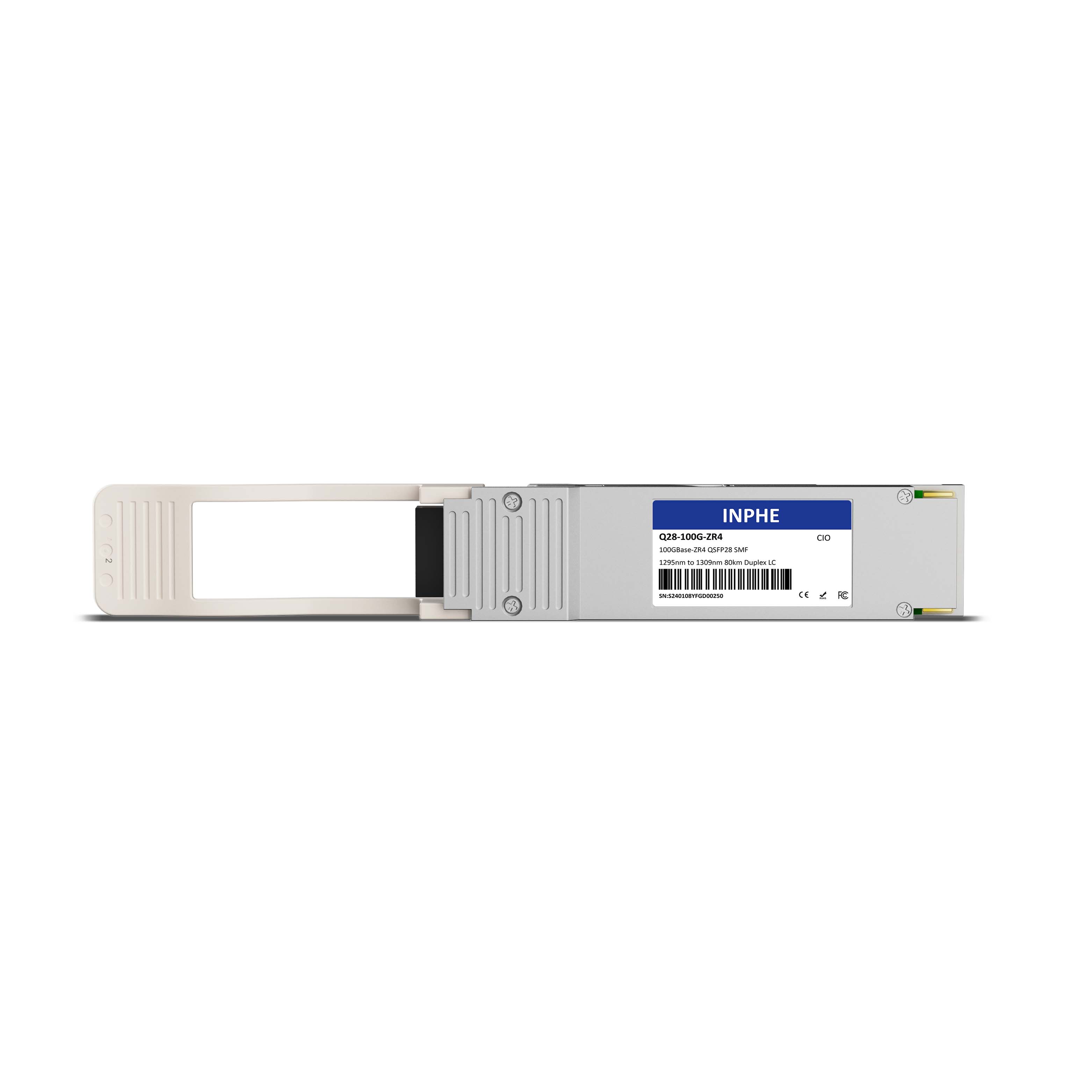

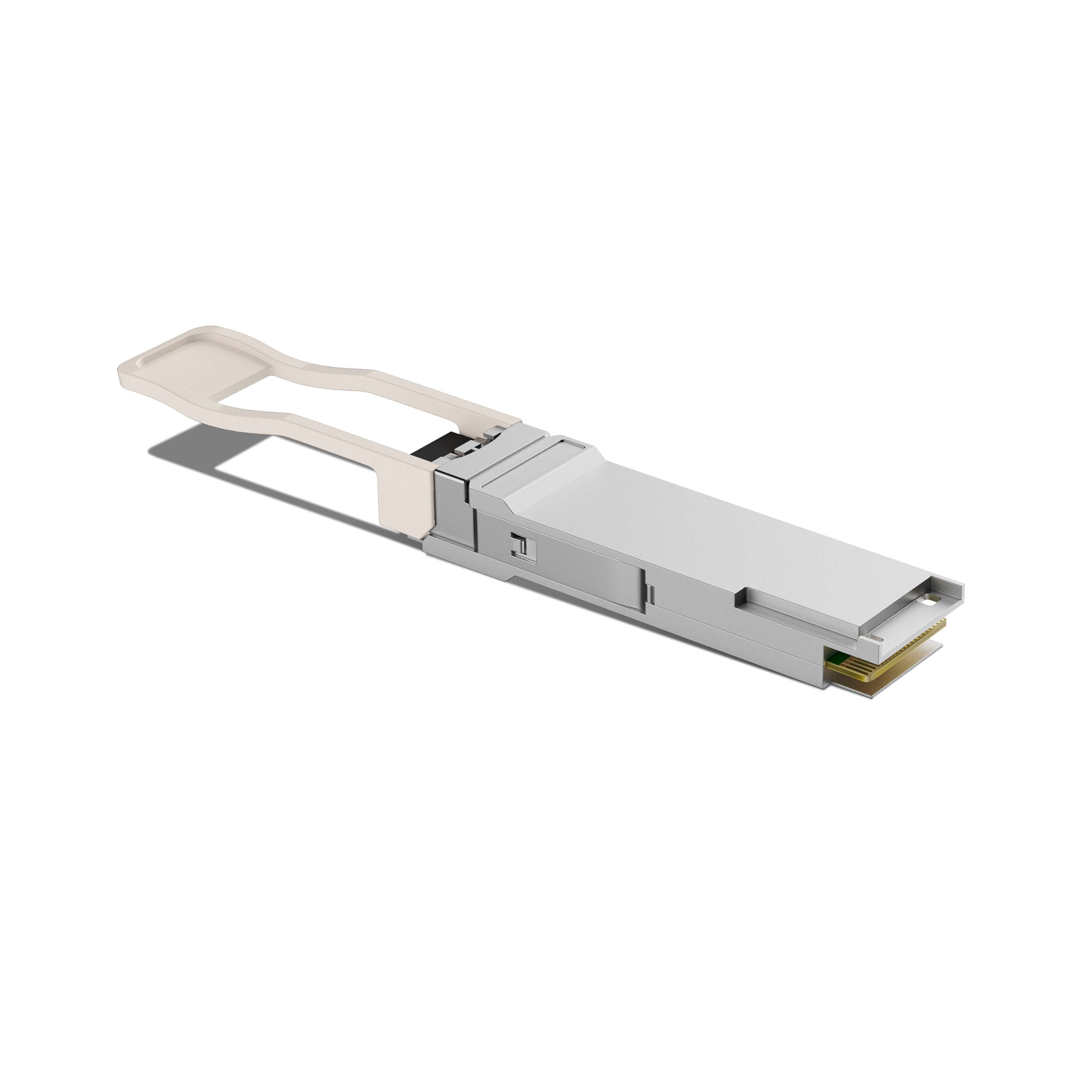

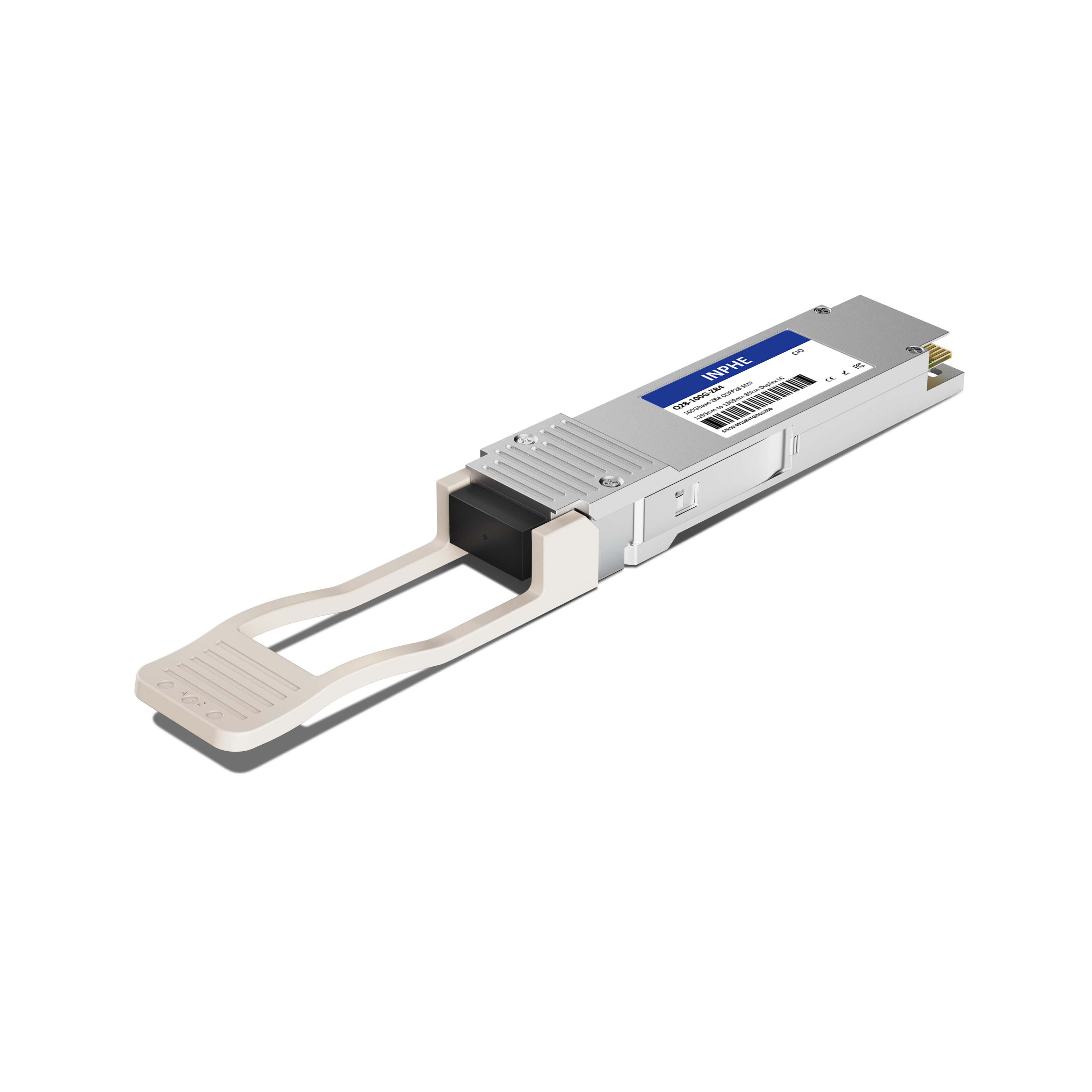

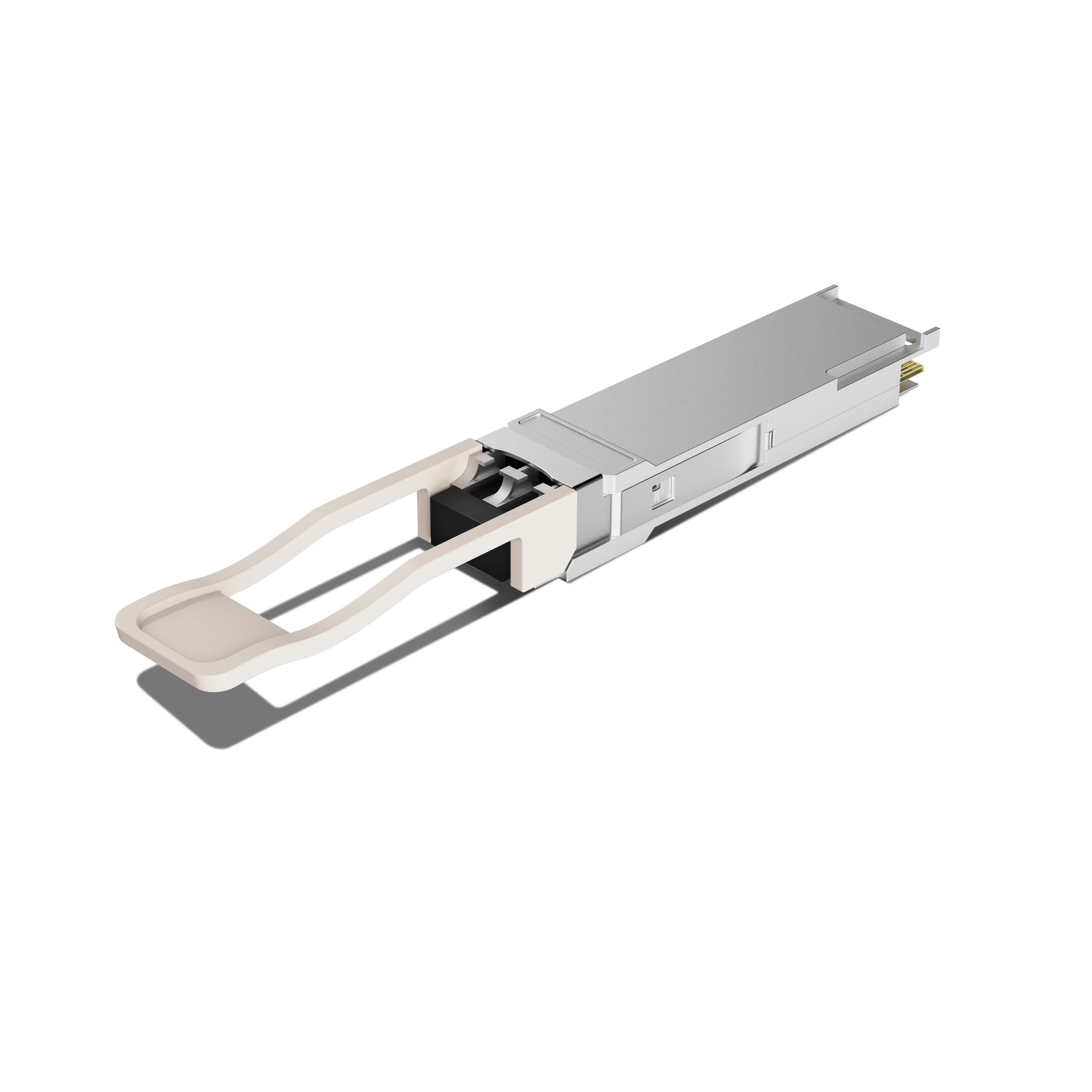

Huawei 02312NCX QSFP28-100G-1310nm-80km-SM-01 Compatible QSFP28 100GBASE ZR4 1295/1300/1304/1309nm 80km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver

Name: Huawei 02312NCX QSFP28-100G-1310nm-80km-SM-01 Compatible QSFP28 100GBASE ZR4 1295/1300/1304/1309nm 80km SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 707003105056
Price: 1179 USD
Availability: InStock

#707003105056

US$1,179.00

INPHE: 02312NCX

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista Nokia Huawei FS.COM Flexoptix Precision Coherent (Finisar) Extreme Edge Core More +

Compatible Models:

02314DBR

QSFP-100G-ZR4

02312NCX

34061960-80

QSFP28-100GB-ZR4-HW2 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-100G-ZR4
Form Factor	QSFP28	Max Data Rate	103.1Gbps and 112Gbps
Wavelength	1295.56/1300.05/1304.58/1309.14nm	Max Distance	With FEC 80km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	SOA+PIN
Transmitter Power	+2.0 ~ +6.5dBm	Receiver Sensitivity	< -28.0dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
