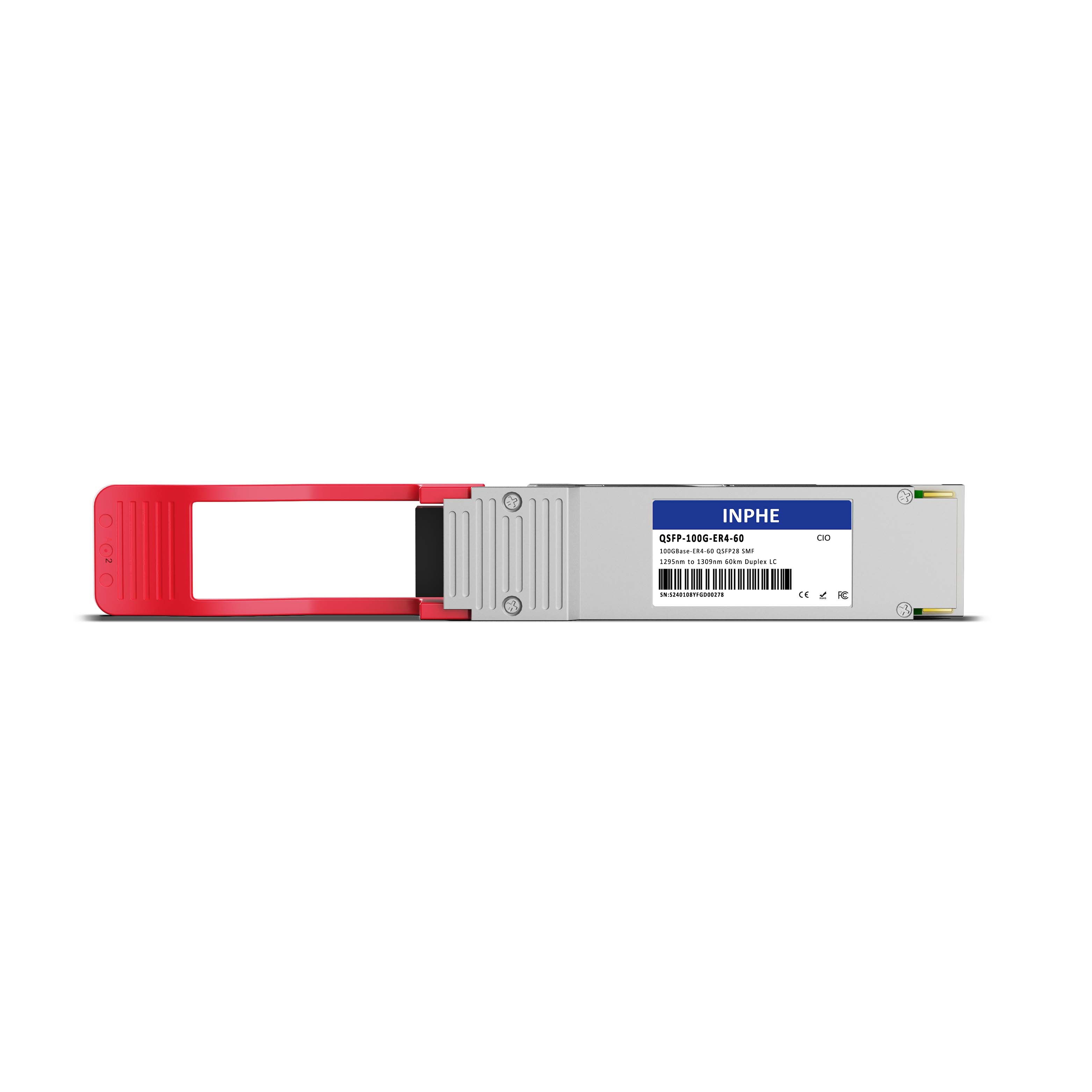

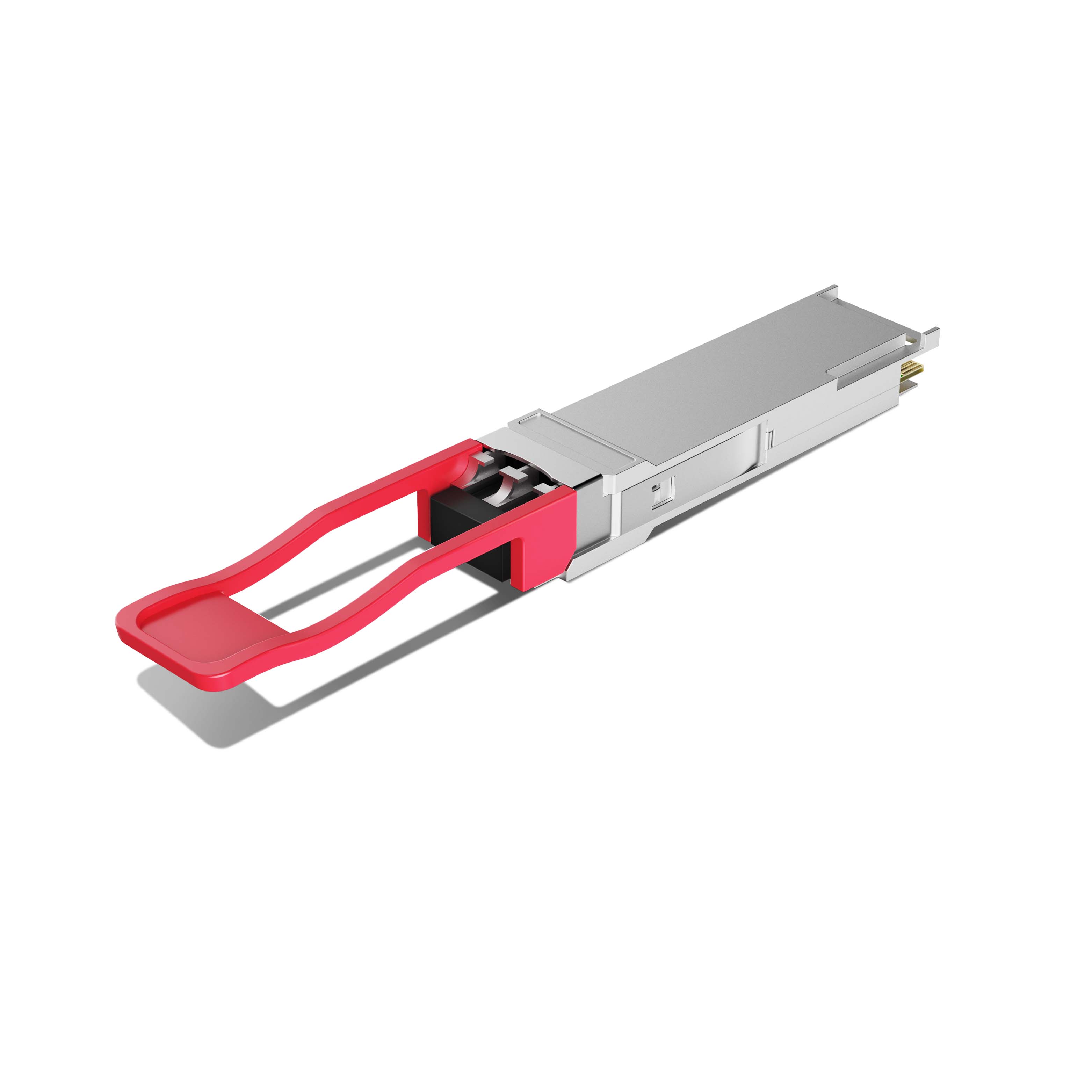

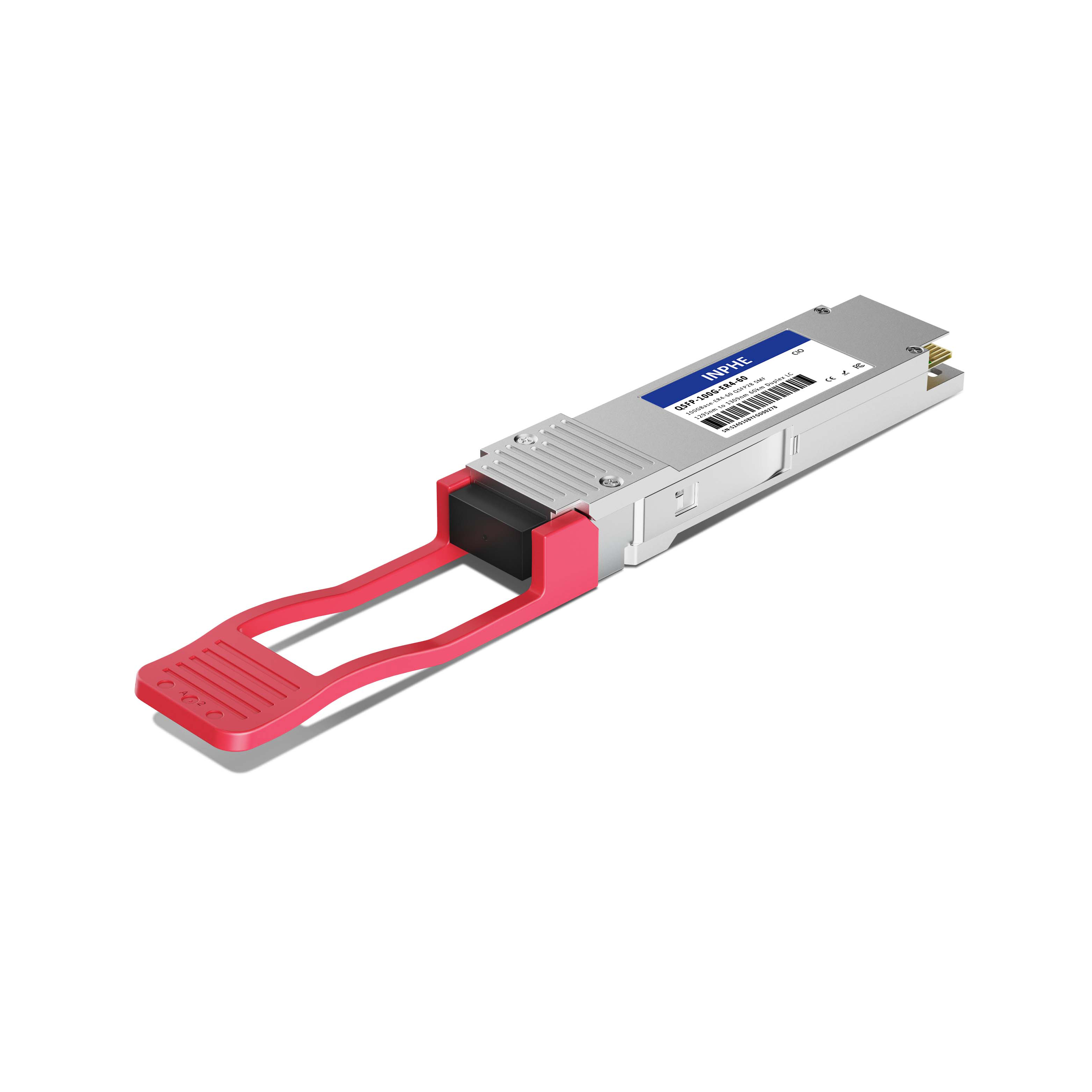

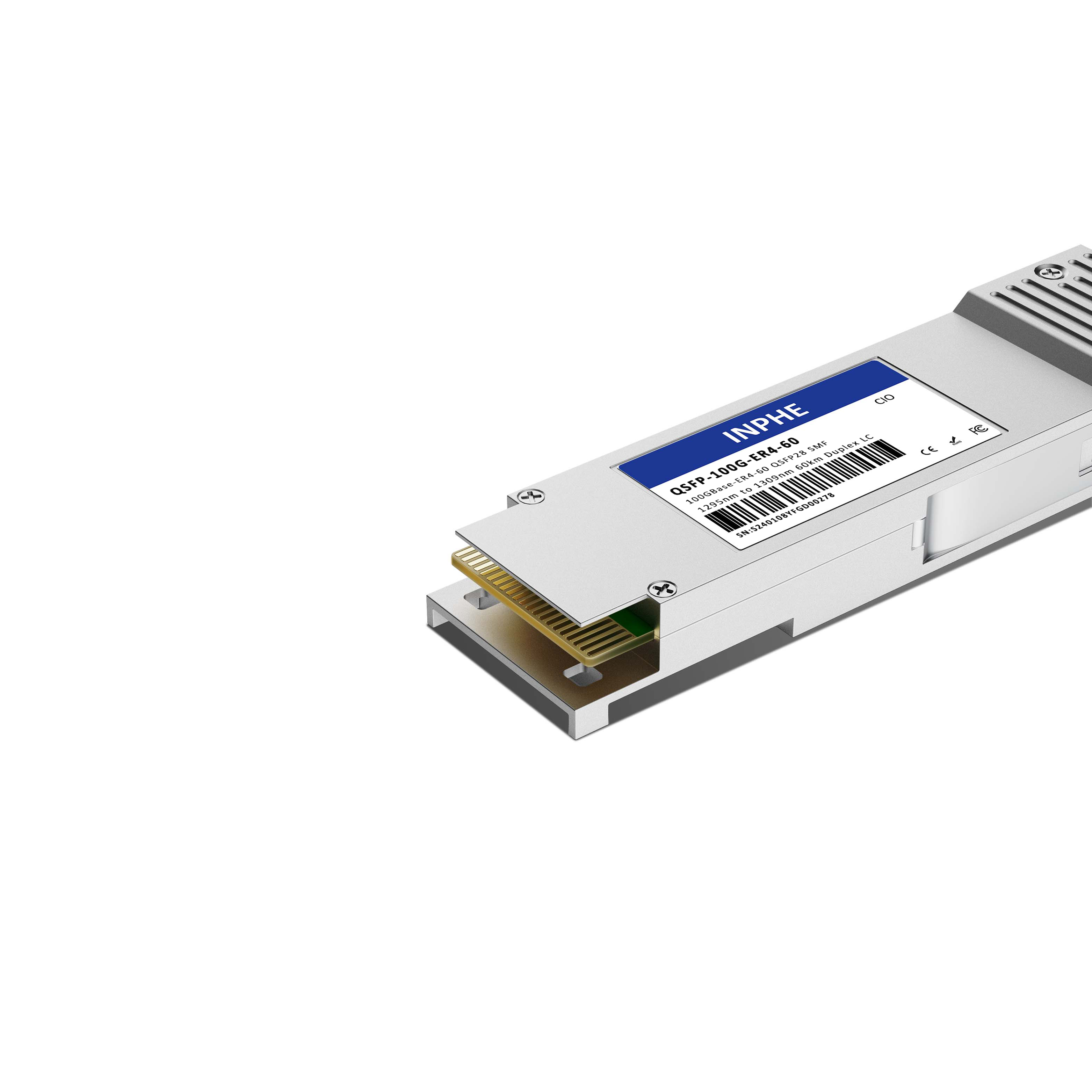

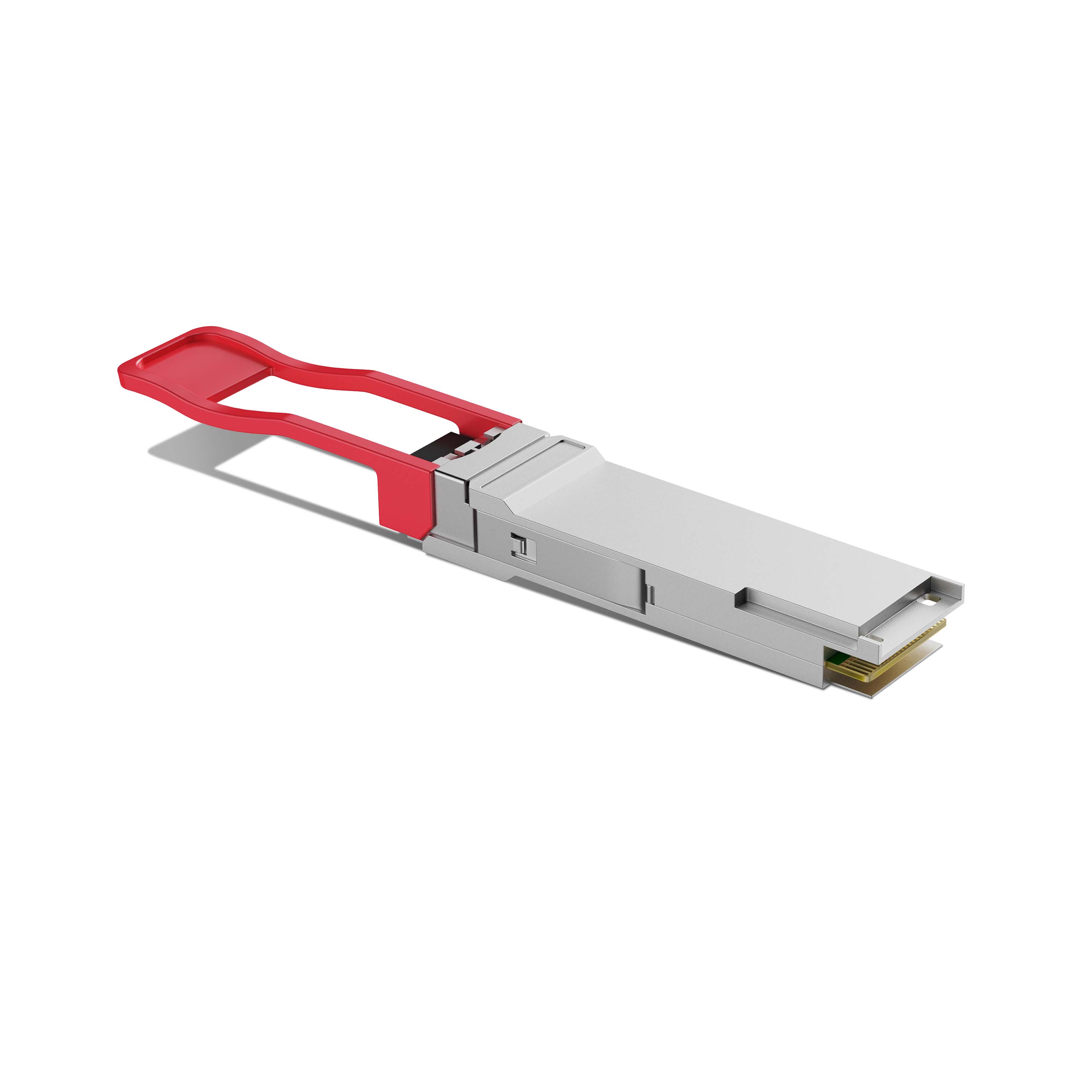

Cisco Compatible QSFP28 100GBASE ER4-60 1295/1300/1304/1309nm 60km SMF Duplex LC DDM/DOM Optics Transceiver

The Cisco compatible QSFP28 100G-ER4-60 Optics is specifically designed for long-distance (60km) single-mode links.

The Tx of INPHE's 100G-ER4-60 uses EML (External Modulation Laser) and Box packaging; the Rx uses SOA+PIN (Semiconductor Optical Amplifiers+PIN) and Box packaging. While ensuring excellent performance, it also guarantees high stability.

Operating at a wavelength of 1310nm (LAN WDM4, 1295.56 nm/1300.05 nm/1304.58 nm/1309.14 nm) and employing a Duplex LC/UPC single-mode connector, it provides point-to-point connectivity over link distances of up to 60km (OS2 SMF fiber).

The reliable Tx/Rx BOX package not only meets the needs of conventional scenarios such as data centers and campus networks, but also meets the demanding environments of telecom operators.

It supports DDM/DOM (Digital Optical Monitoring).

Note: A full 60km distance requires FEC (Forward Error Correction) to be enabled on both the switch and router.
