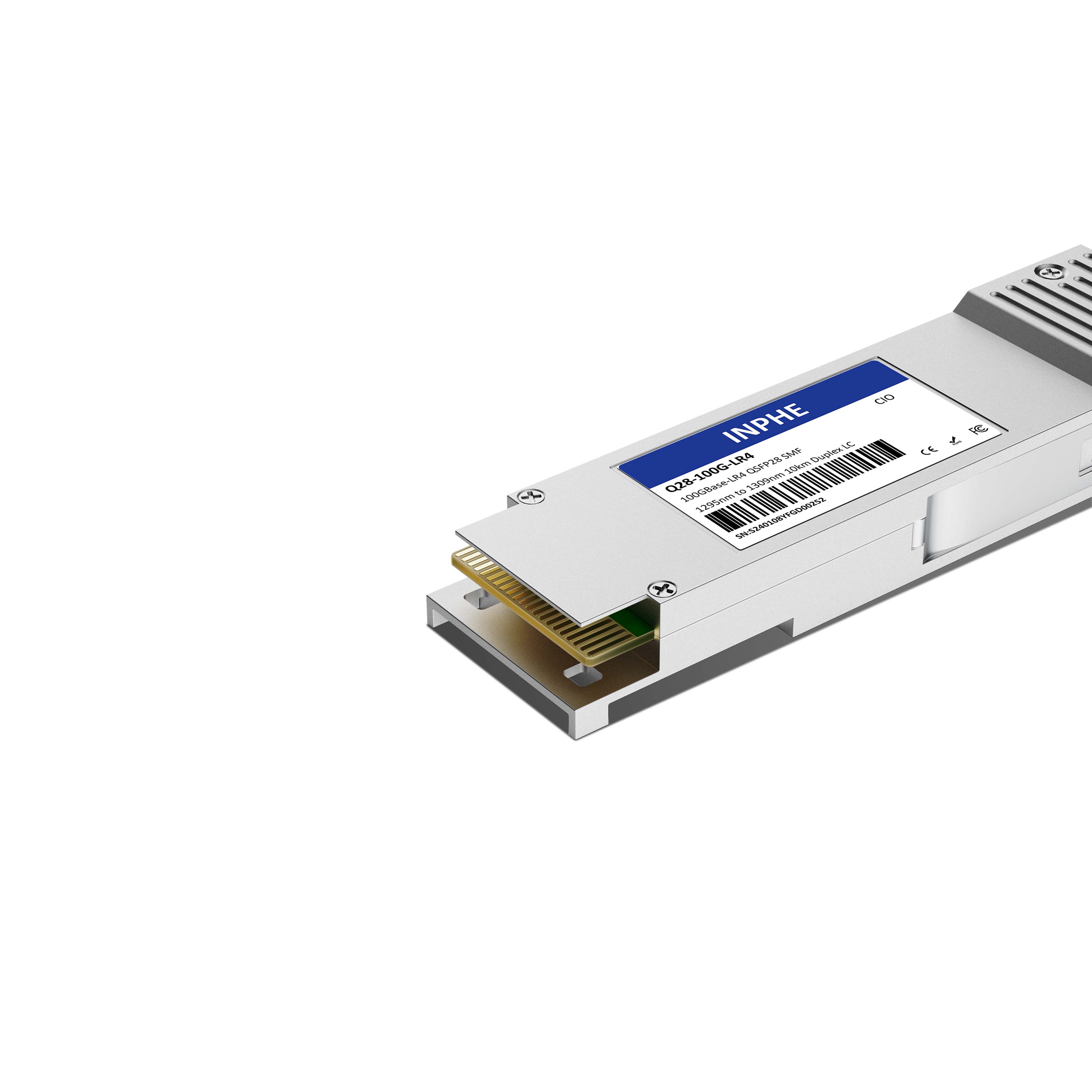

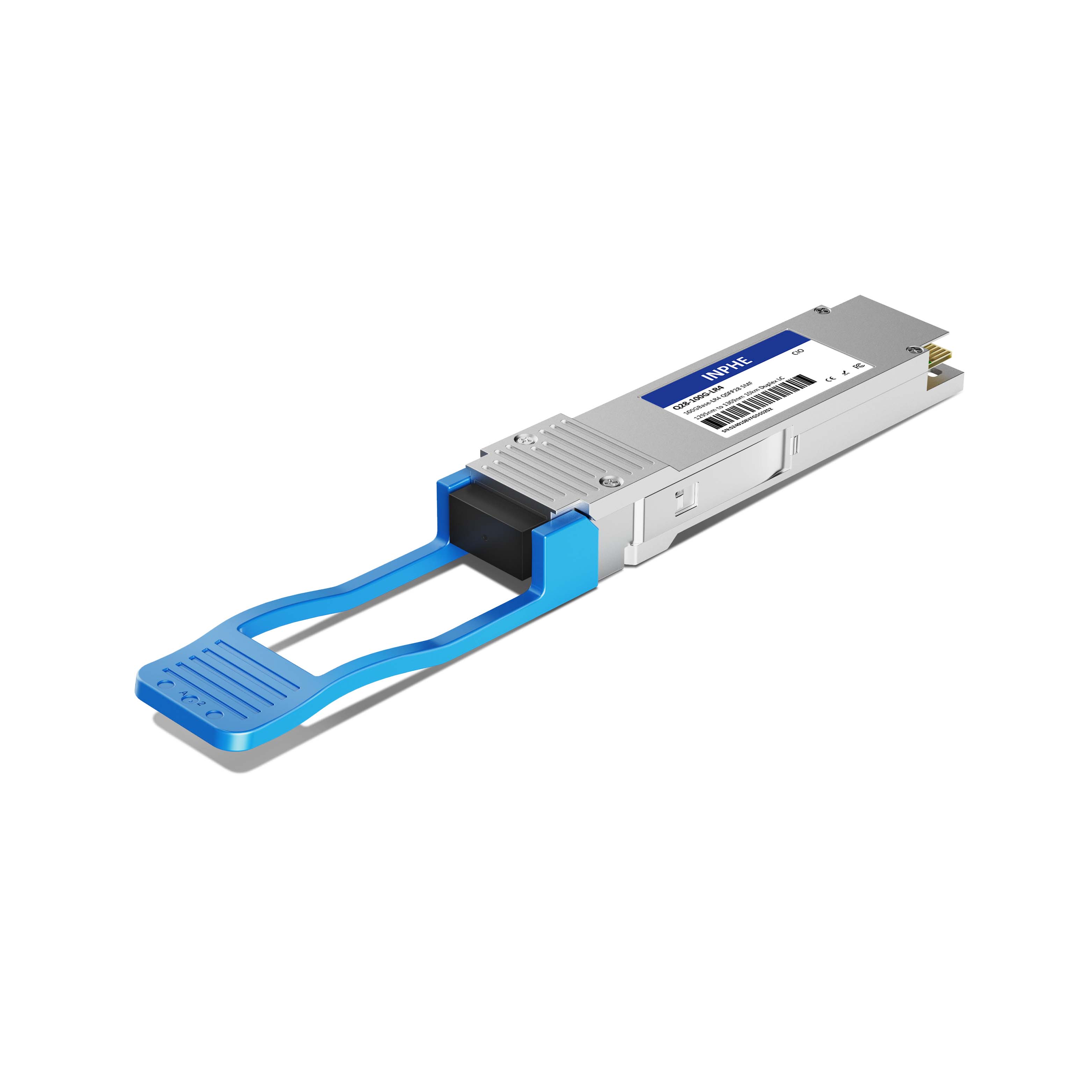

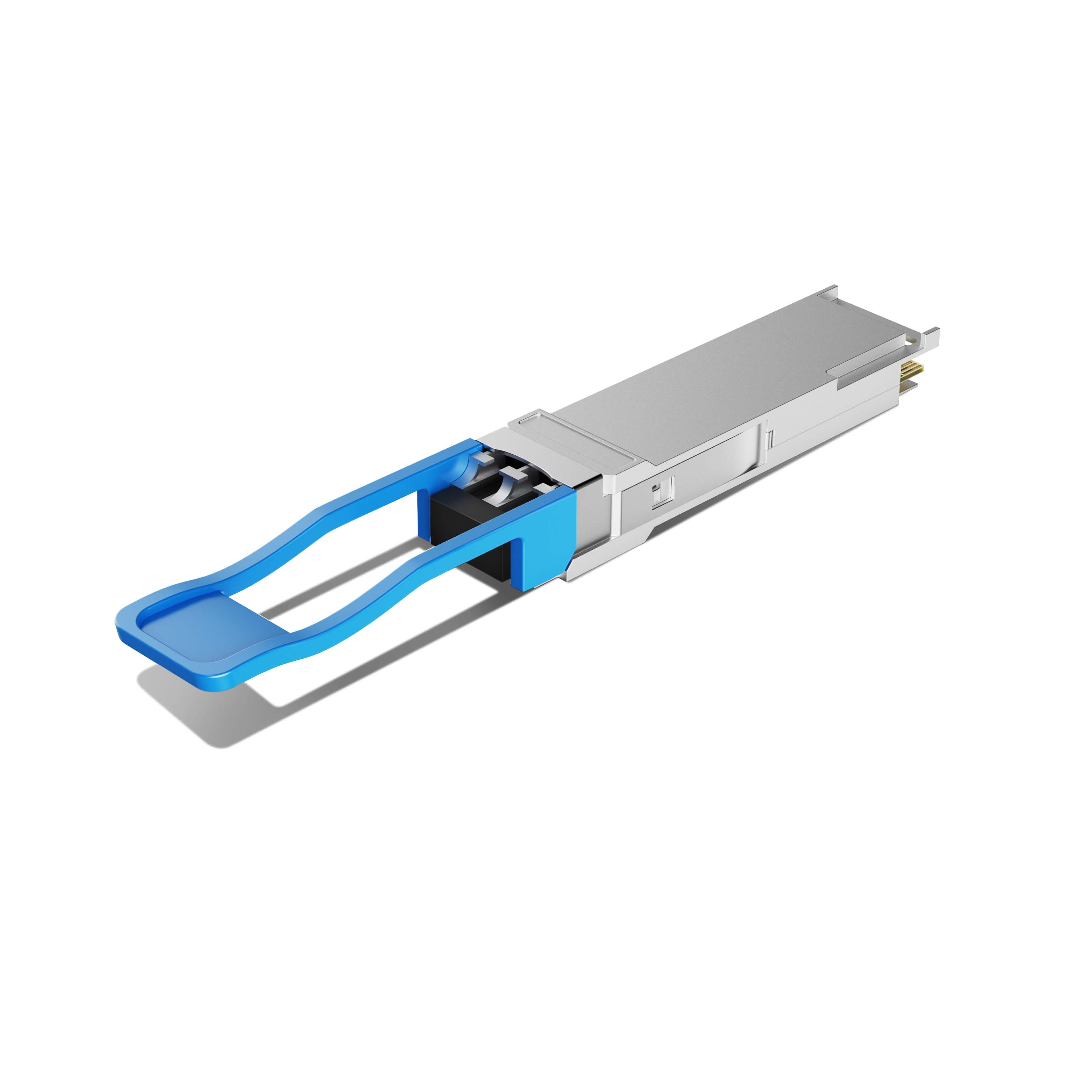

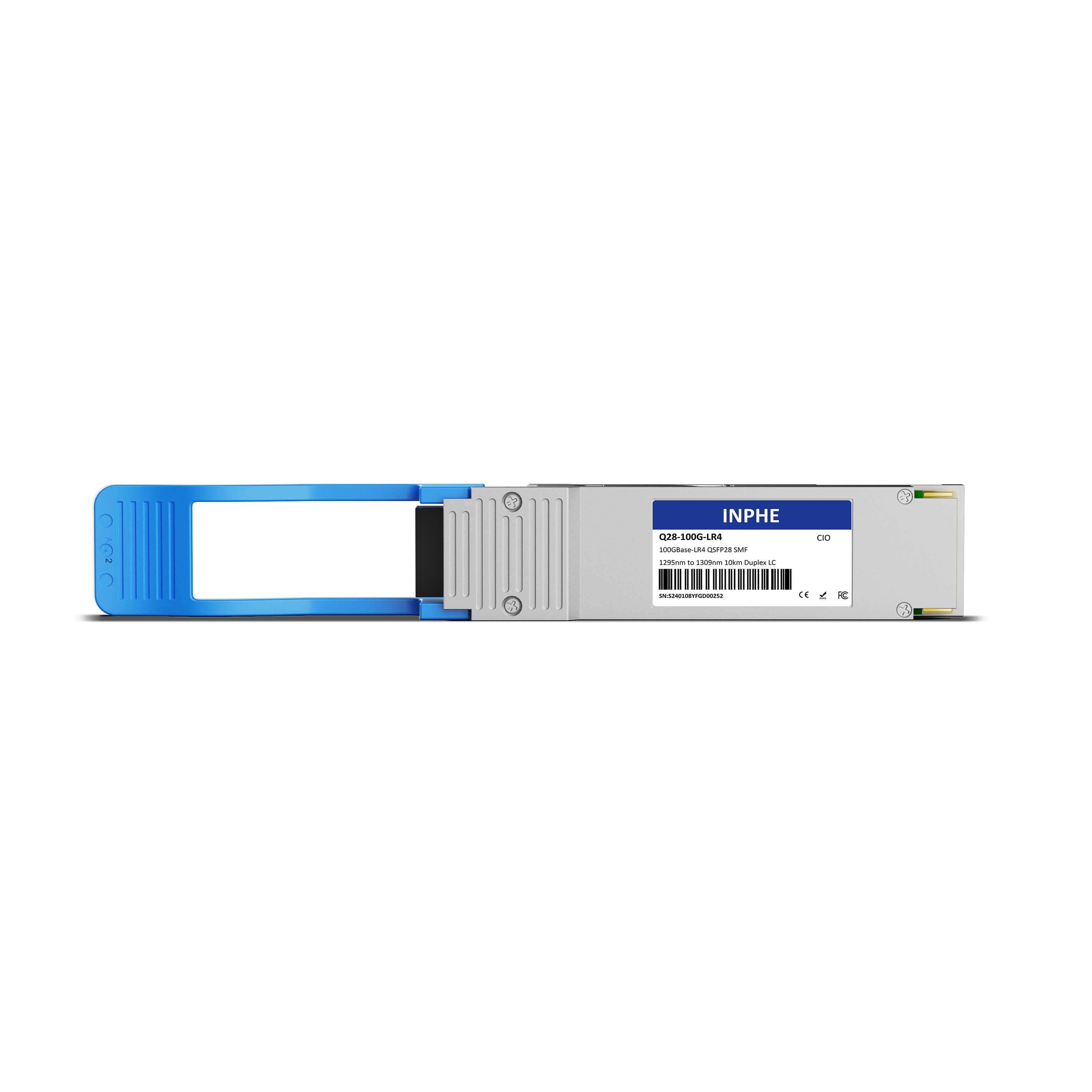

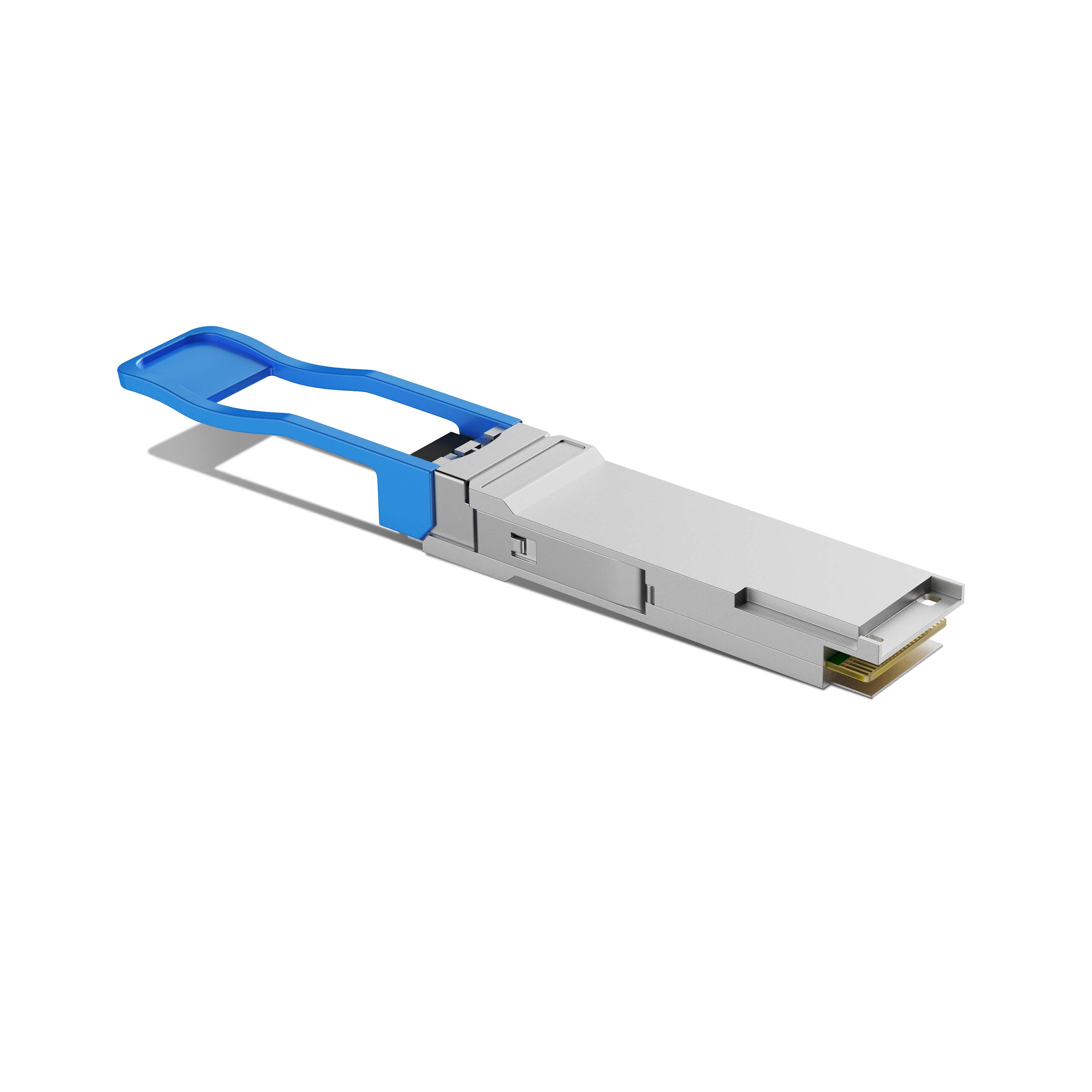

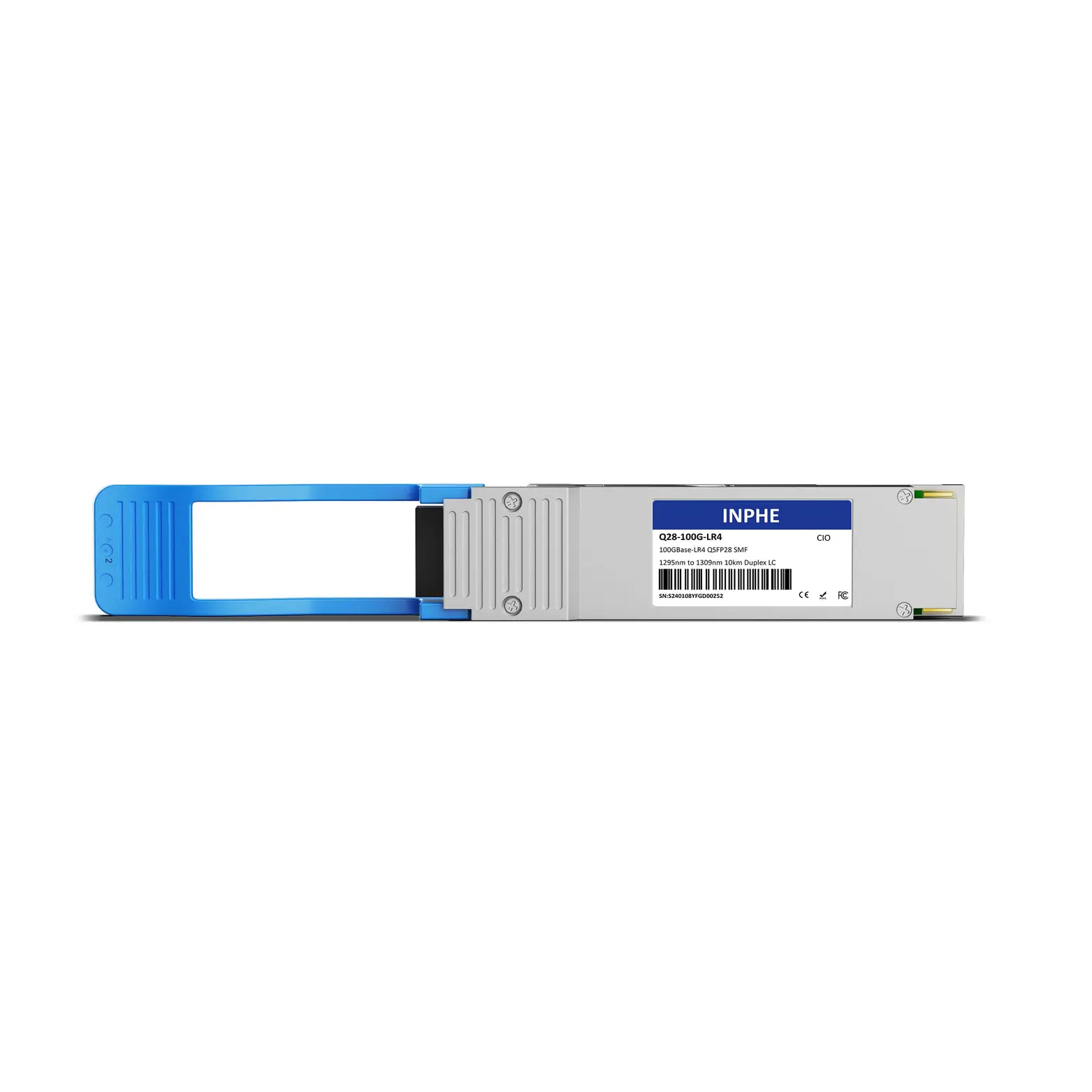

HP H3C JL275A Compatible QSFP28 100GBASE LR4 1295/1300/1304/1309nm 10km SMF Duplex LC DDM/DOM Optics Transceiver

Name: HP H3C JL275A Compatible QSFP28 100GBASE LR4 1295/1300/1304/1309nm 10km SMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 707002001055
Price: 199 USD
Availability: InStock

#707002001055

US$199.00

INPHE: JL275A

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei Dell HPE (Aruba) FS.COM Flexoptix Precision More +

Compatible Models:

JL275A Customized

QTY:

Specifications

The HP H3C JL275A compatible QSFP28 100G-LR4 Optics is specifically designed for long-distance (10km) single-mode links.

Because the 100G-LR4 Optics is widely used in telecommunications networks, data centers, high-performance computing, campus networks, and school networks, reliability is of paramount importance.

INPHE's 100G-LR4 uses EML (External Modulation Laser) for its Tx component and Box packaging; its Rx component employs advanced silicon photonics. This ensures both excellent performance and high stability.

Operating at a wavelength of 1310nm (LAN WDM4, 1295.56 nm/1300.05 nm/1304.58 nm/1309.14 nm) and employing a Duplex LC/UPC single-mode connector, it provides point-to-point connectivity over link distances of up to 10km (OS2 SMF fiber).

It supports DDM/DOM (Digital Optical Monitoring).

Vendor Name	INPHE	Part Number	QSFP-100G-LR4
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1295.56/1300.05/1304.58/1309.14nm	Max Distance	10km
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	Silicon Photonics
Transmitter Power	-4.3 ~ +4.5dBm	Receiver Sensitivity	< -8.6dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	10 Years
