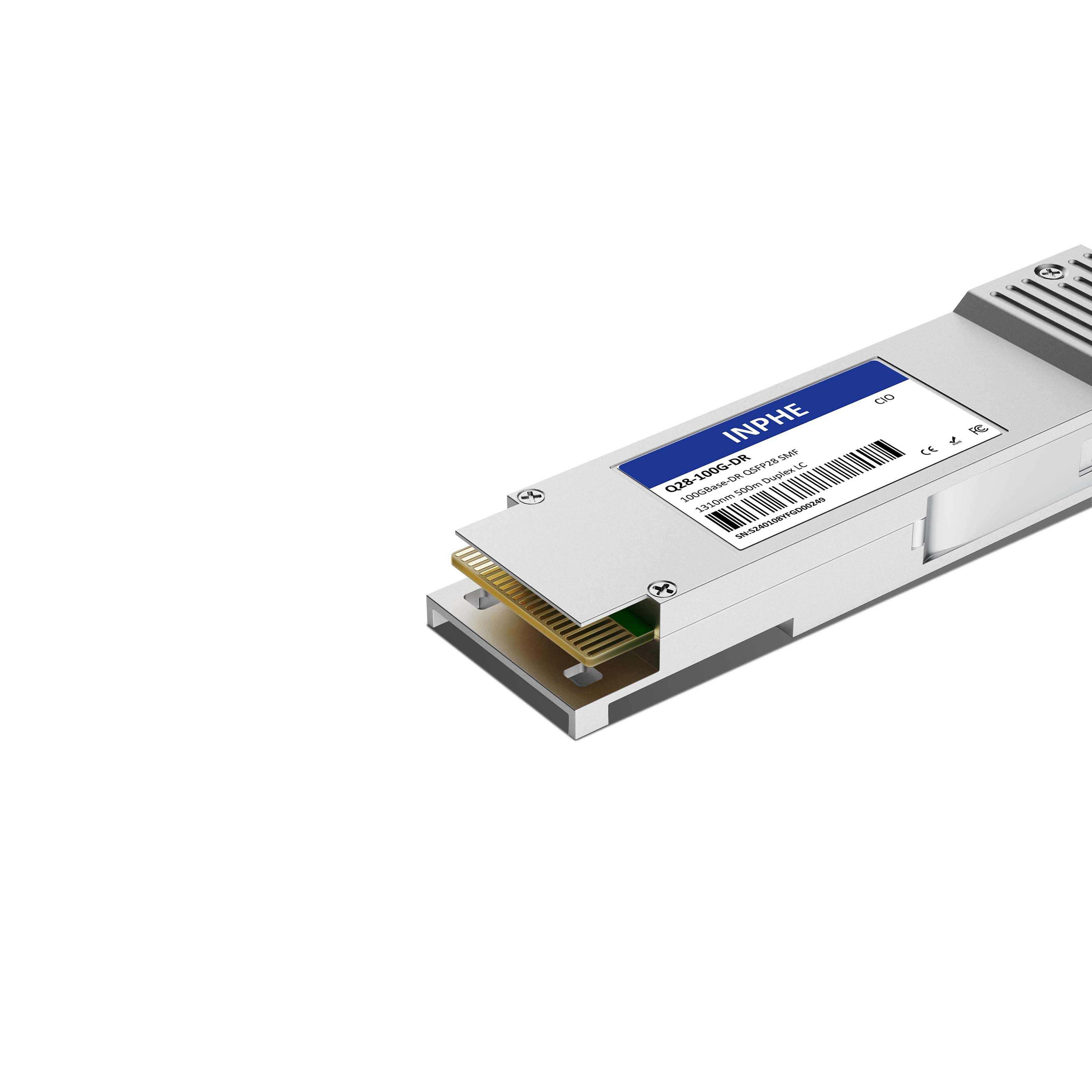

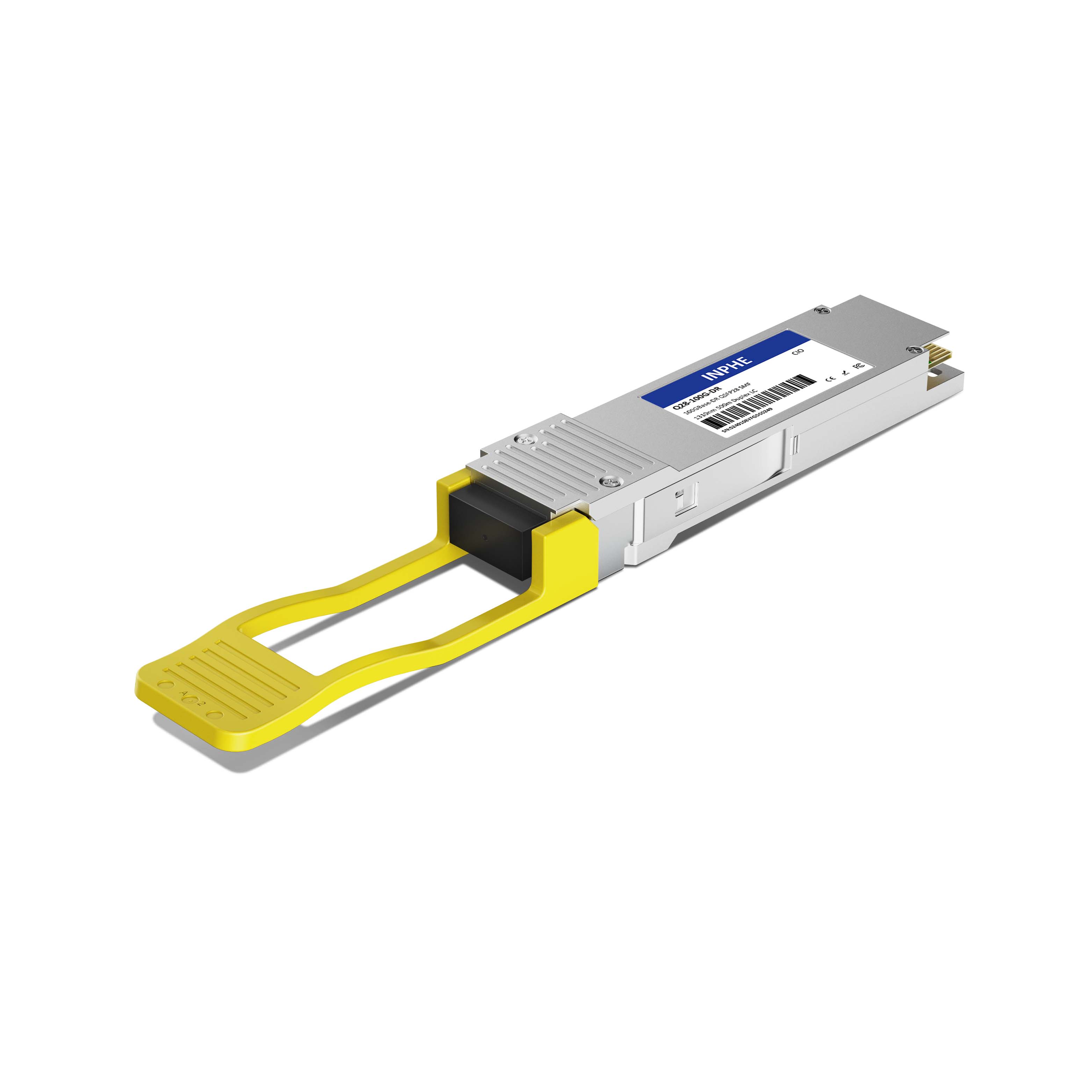

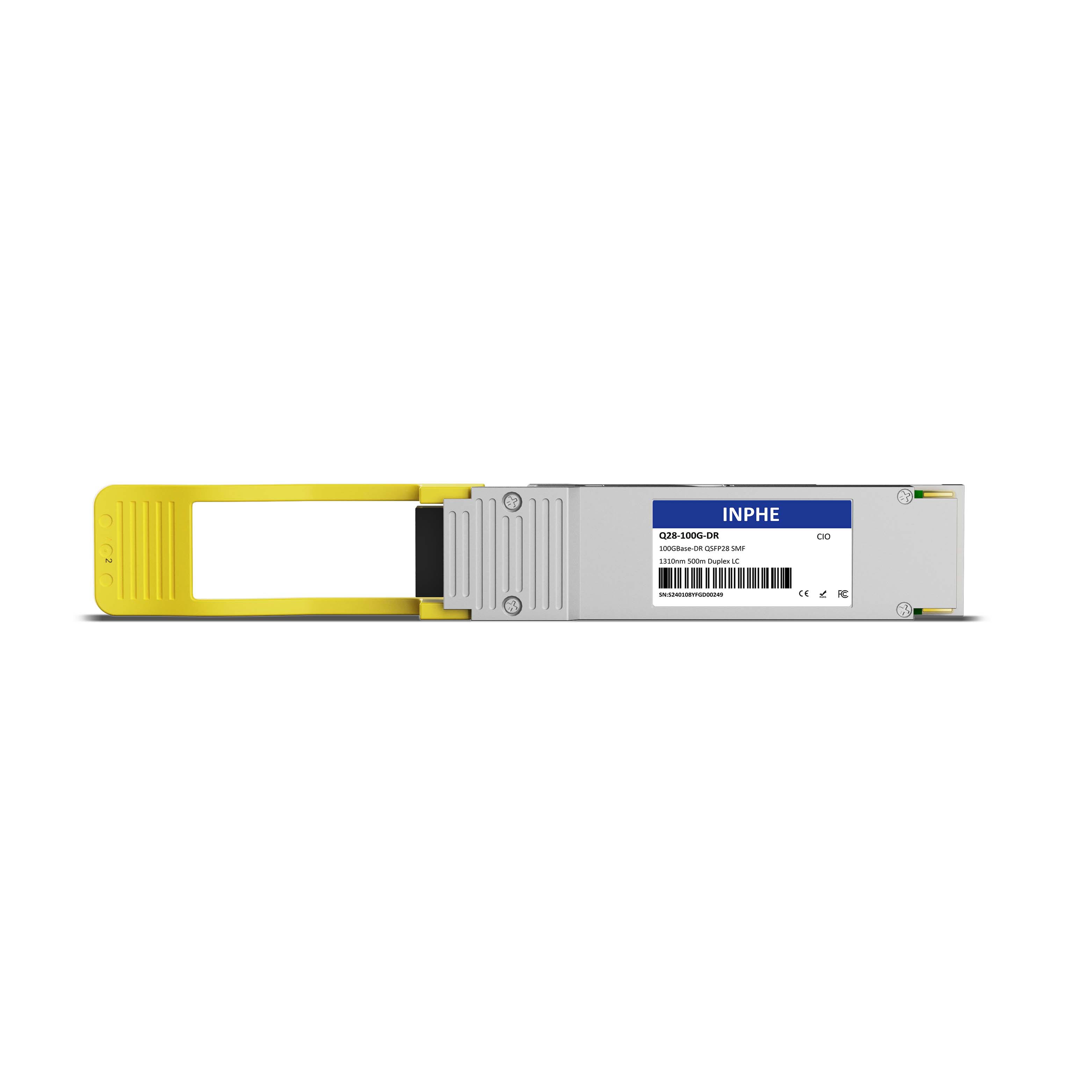

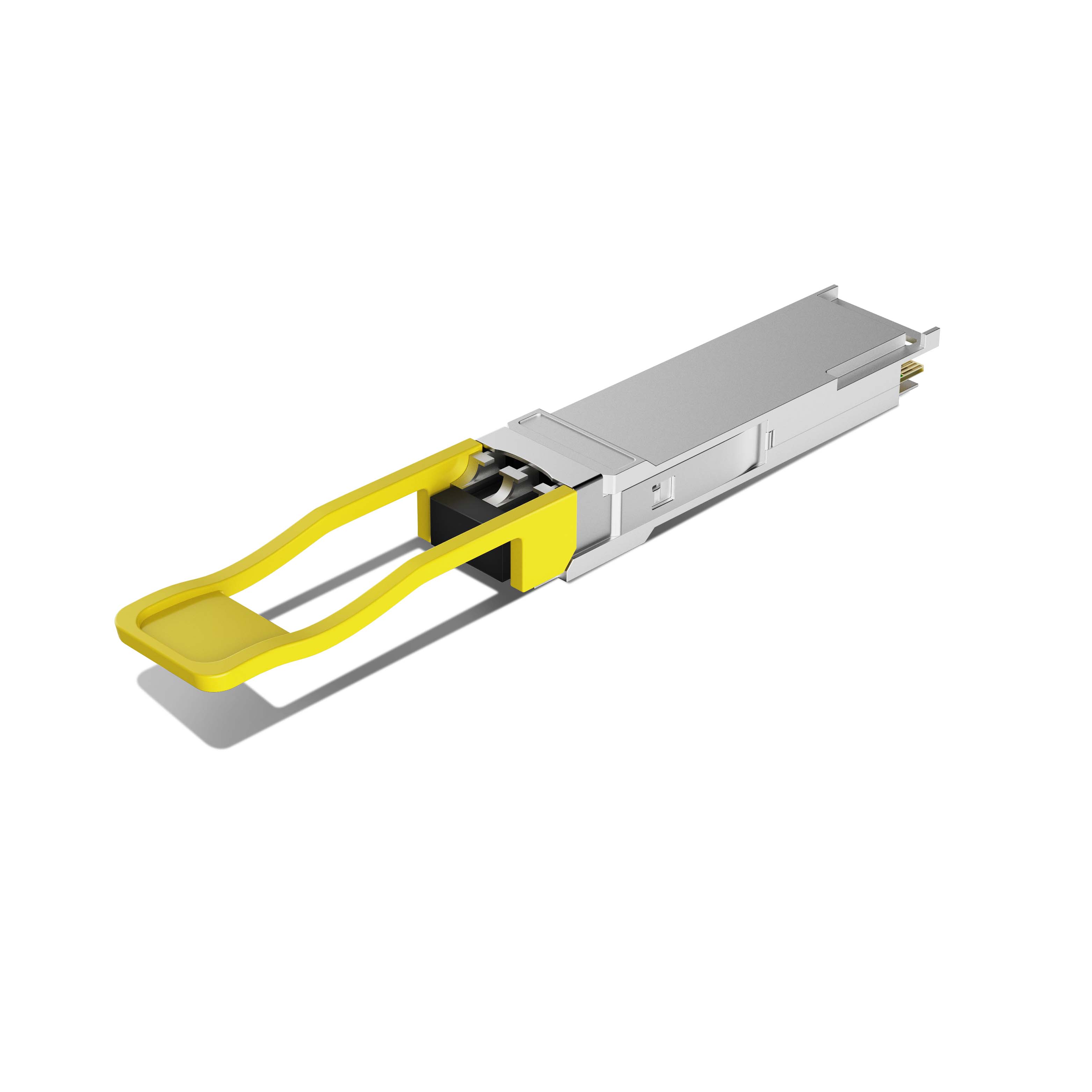

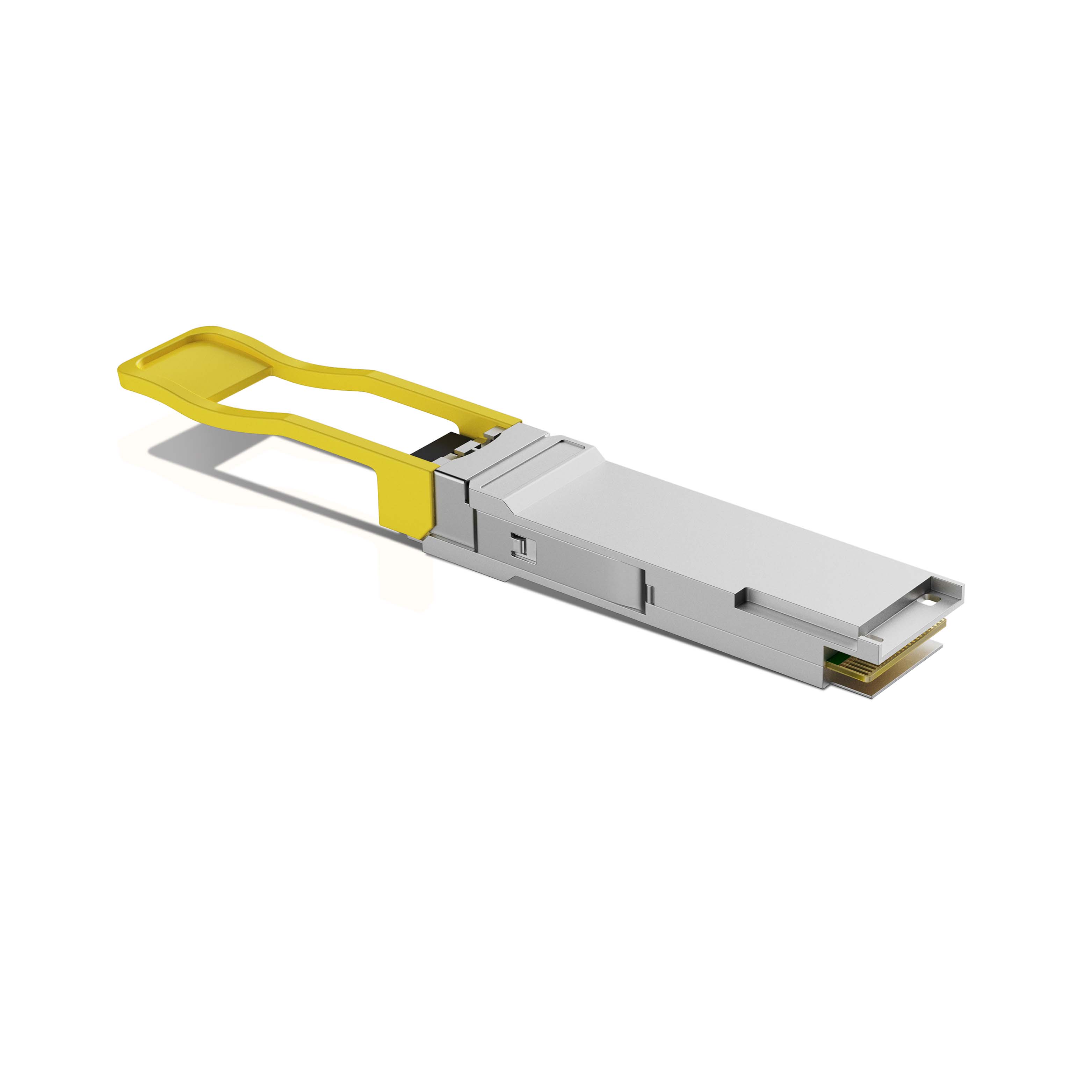

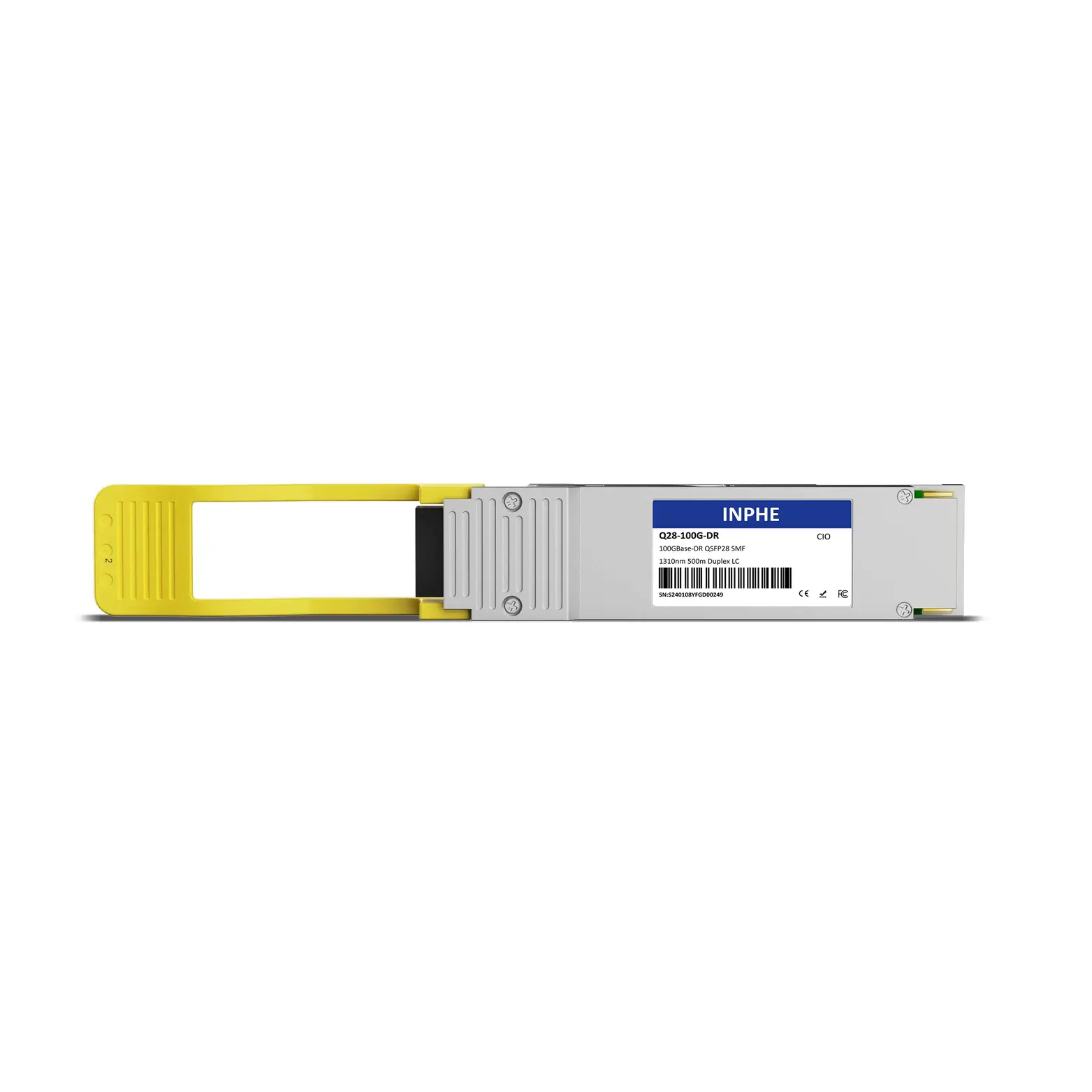

Arista QSFP-100G-DR XVR-10222-21 Compatible QSFP28 100GBASE DR1 1310nm 500m SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver

Name: Arista QSFP-100G-DR XVR-10222-21 Compatible QSFP28 100GBASE DR1 1310nm 500m SMF Duplex LC With Dual CDR DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 707000501013
Price: 149 USD
Availability: InStock

#707000501013

US$149.00

INPHE: QSFP-100G-DR1

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista NVIDIA (Mellanox) Nokia Huawei FS.COM Flexoptix Precision Coherent (Finisar) Edge CorE More +

Compatible Models:

QSFP-100G-DR Customized

QTY:

Specifications

This Arista QSFP-100G-DR (XVR-10222-21) Compatible 100G DR1 single-mode optical transceiver uses 4x25G NRZ modulation technology at the electrical layer and QSFP28 100G PAM4 Single Lambda technology at the optical layer, with a 1310nm wavelength and a Duplex LC interface.

This transceiver has two main application scenarios:
1. Filling the gap in the 100m-2km range of conventional QSFP28 100G transceivers.
2. In conjunction with a QSFP-DD 400G DR4 500m transceiver and single-mode MTP/MPO-8 to 4xLC fiber optic patch cords, forming a 4x 100G breakout application.

Vendor Name	INPHE	Part Number	QSFP-100G-DR1
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1310nm	Max Distance	500m
Connector	Duplex LC	Transmitter Type	EML
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-2.9 ~ +4.0dBm	Receiver Sensitivity	< -3.9dBm
Protocols	100G Ethernet, MSA Compliant, 100GBASE-DR	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
