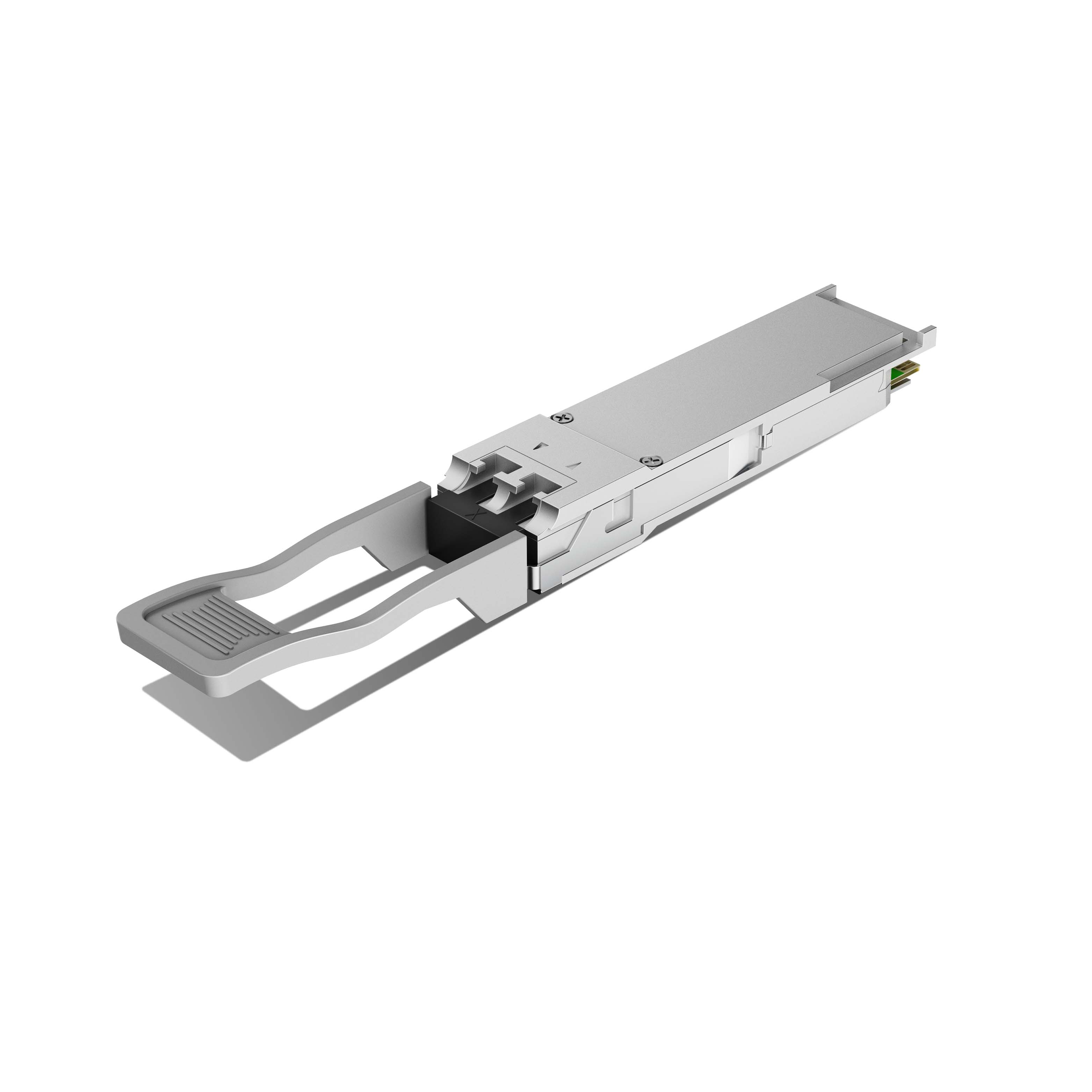

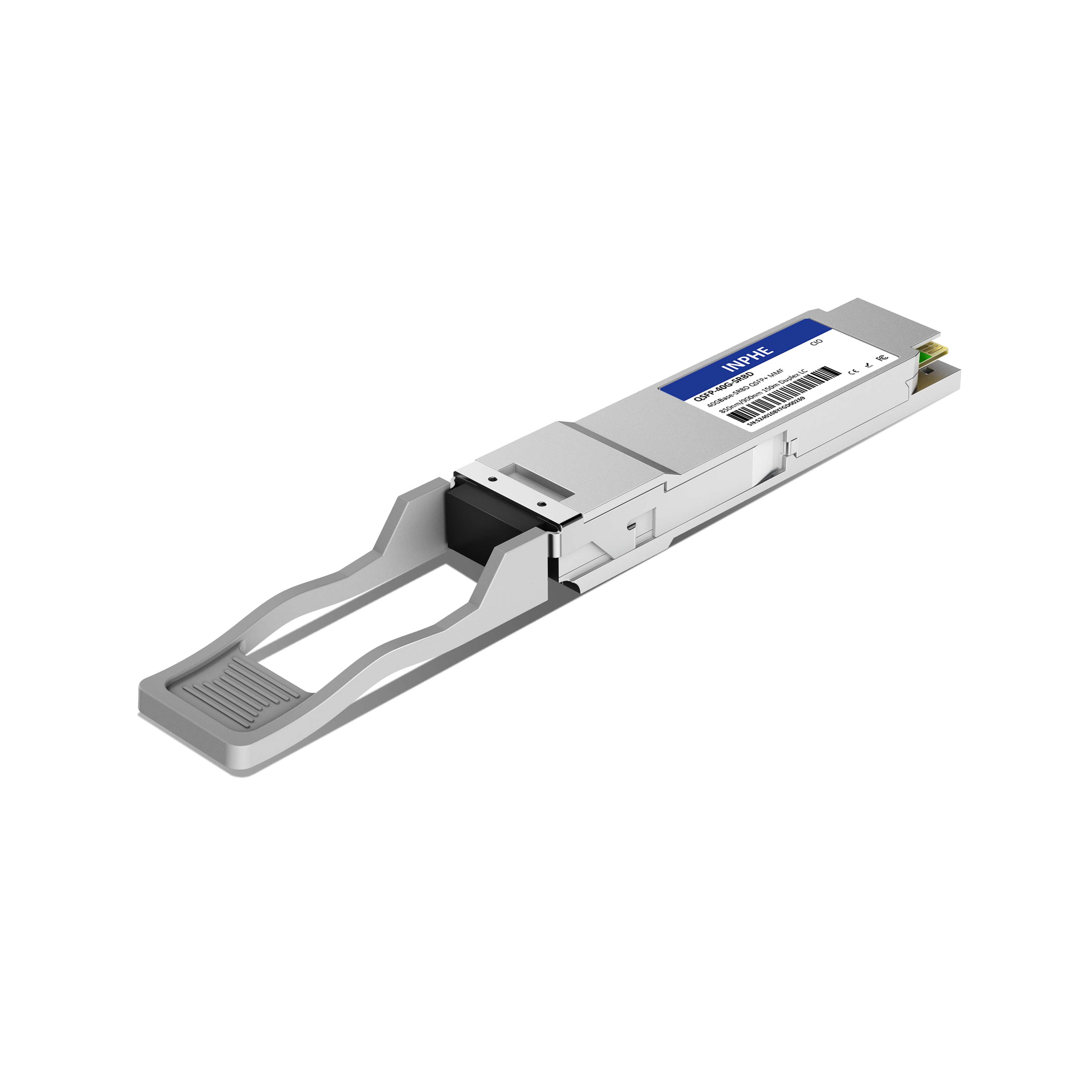

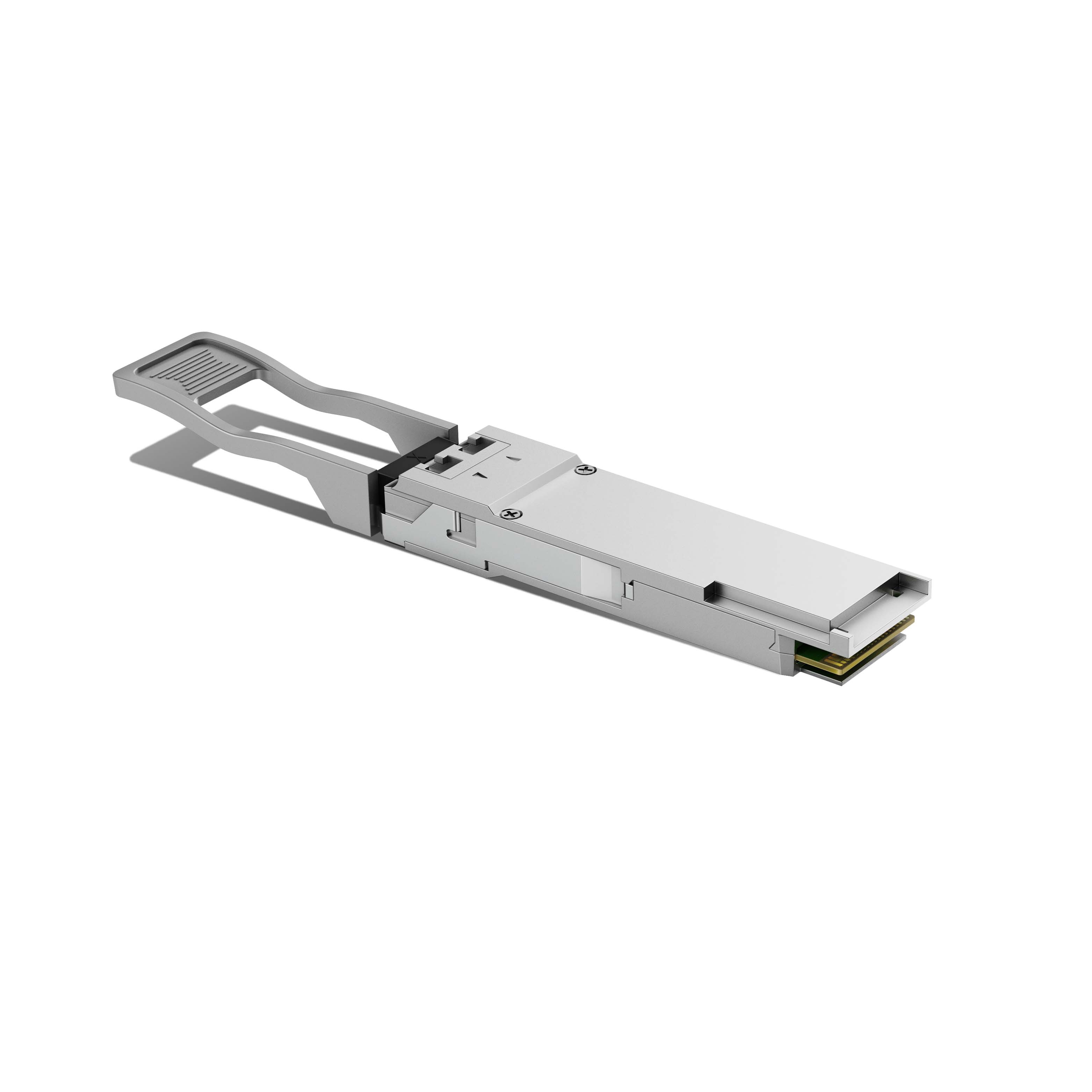

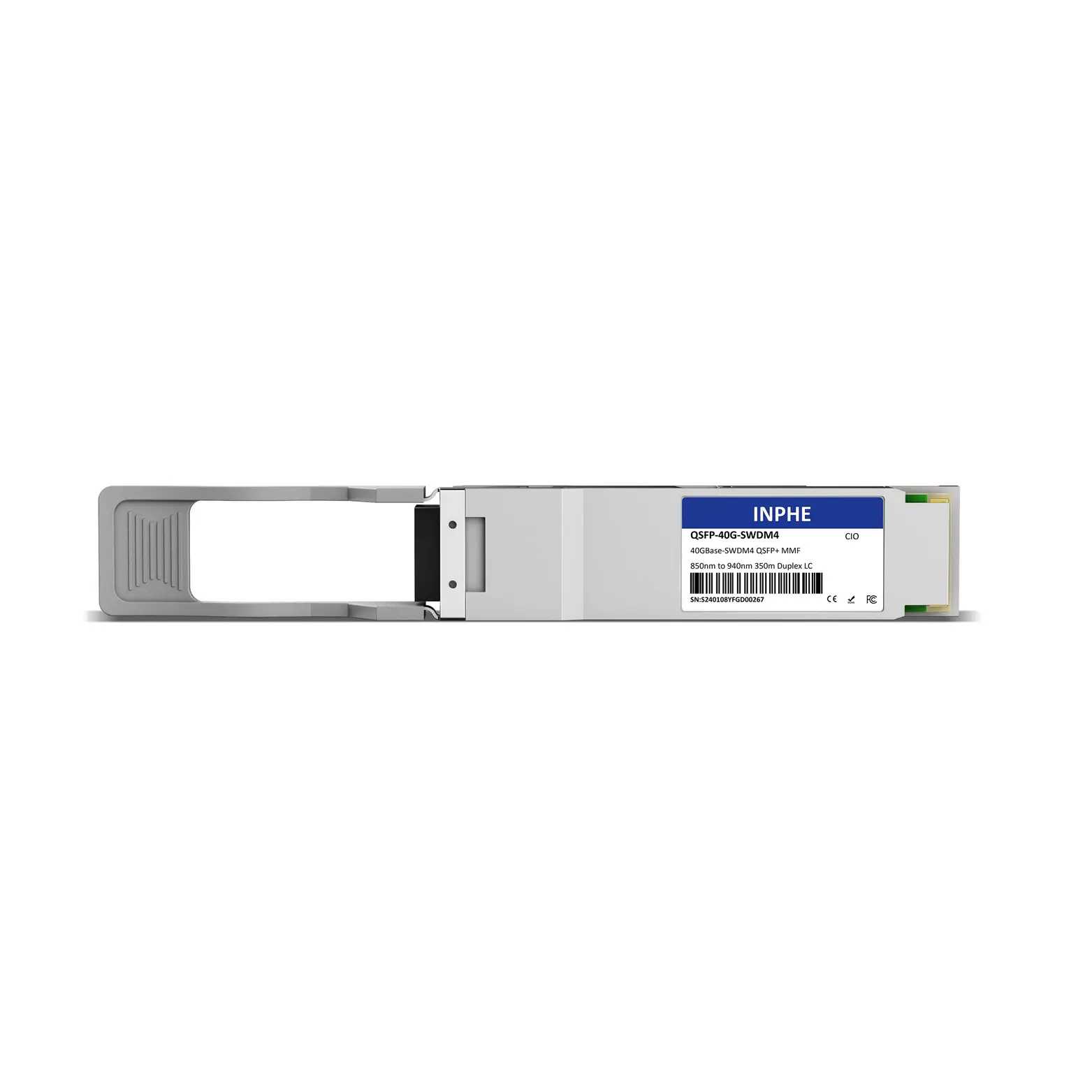

Huawei 02312ELH Compatible QSFP+ 40GBASE SWDM4 850/880/910/940nm 350m MMF Duplex LC DDM/DOM Optics Transceiver

Name: Huawei 02312ELH Compatible QSFP+ 40GBASE SWDM4 850/880/910/940nm 350m MMF Duplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 706000402056
Price: 109 USD
Availability: InStock

#706000402056

US$109.00

INPHE: 02312ELH

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Arista Huawei FS.COM Precision Coherent (Finisar)

Compatible Models:

02311PUU

02312ELH Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	QSFP-40G-SWDM4
Form Factor	QSFP+	Max Data Rate	40Gbps
Wavelength	850/880/910/940nm	Max Distance	OM4 350m / OM3 240m
Connector	Duplex LC	Transmitter Type	VCSEL
Cable Type	MMF	Receiver Type	PIN
Transmitter Power	-7.5 ~ +3.0dBm	Receiver Sensitivity	< -9.1dBm
Protocols	40G Ethernet, IEEE 802.3ba, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
