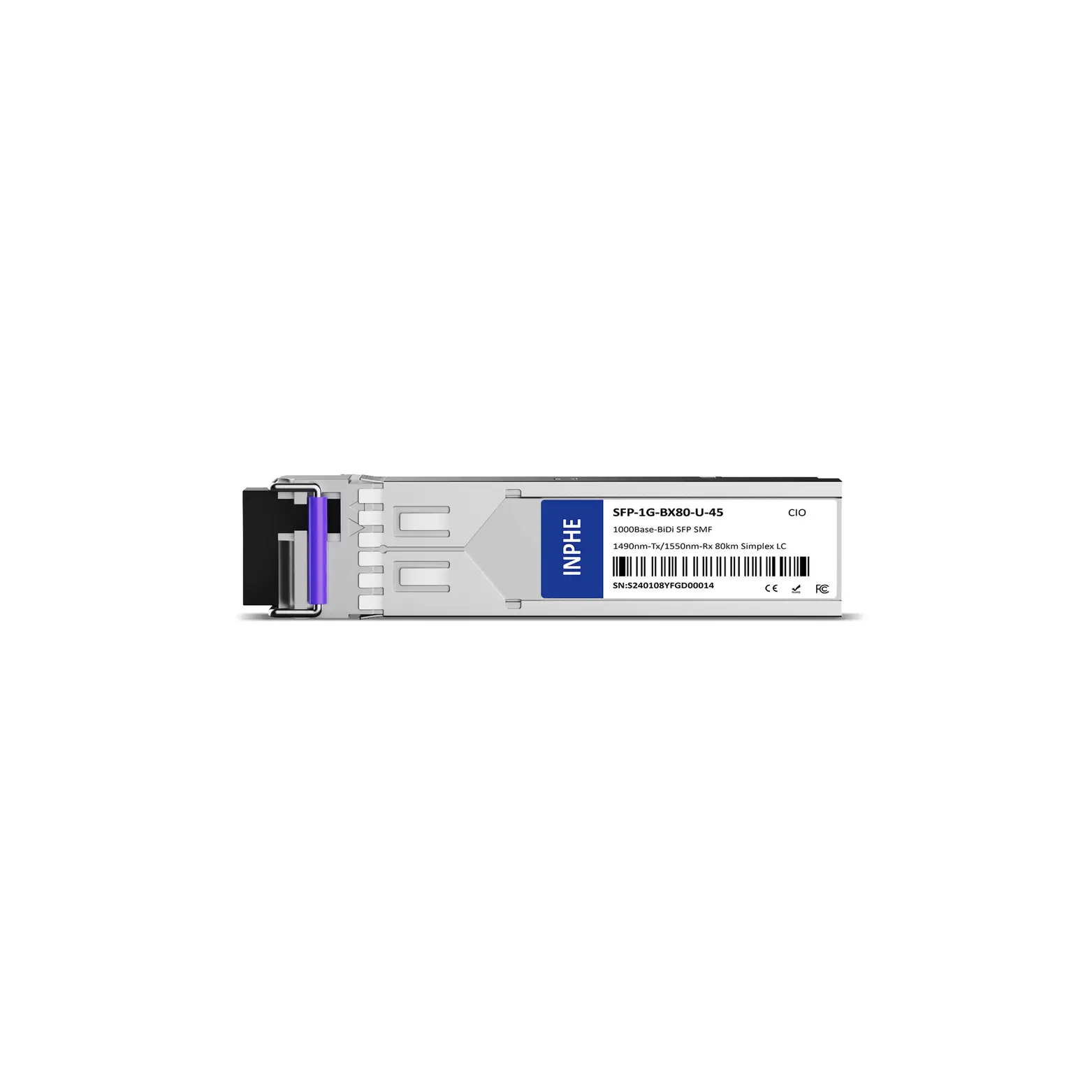

Ciena XCVR-080U49 Compatible SFP 1.25GBASE BiDi 1490nm-Tx/1550nm-Rx 80km SMF Simplex LC DDM/DOM Optics Transceiver

Name: Ciena XCVR-080U49 Compatible SFP 1.25GBASE BiDi 1490nm-Tx/1550nm-Rx 80km SMF Simplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 702003401026
Price: 21.99 USD
Availability: InStock

#702003401026

US$21.99

INPHE: XCVR-080U49

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Ciena Brocade Aruba Networks Advantech ADTRAN Accedian Networks Nexans Net Insight Moxa Huawei More +

Compatible Models:

XCVR-080U49 Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	SFP-1G-BX80U45
Form Factor	SFP	Max Data Rate	1.25Gbps
Wavelength	1490nm-Tx/1550nm-Rx	Max Distance	80km
Connector	Simplex LC	Transmitter Type	DFB
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-2.0~ +5.0dbm	Receiver Sensitivity	< -26.0dBm
Protocols	Gigabit? Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
