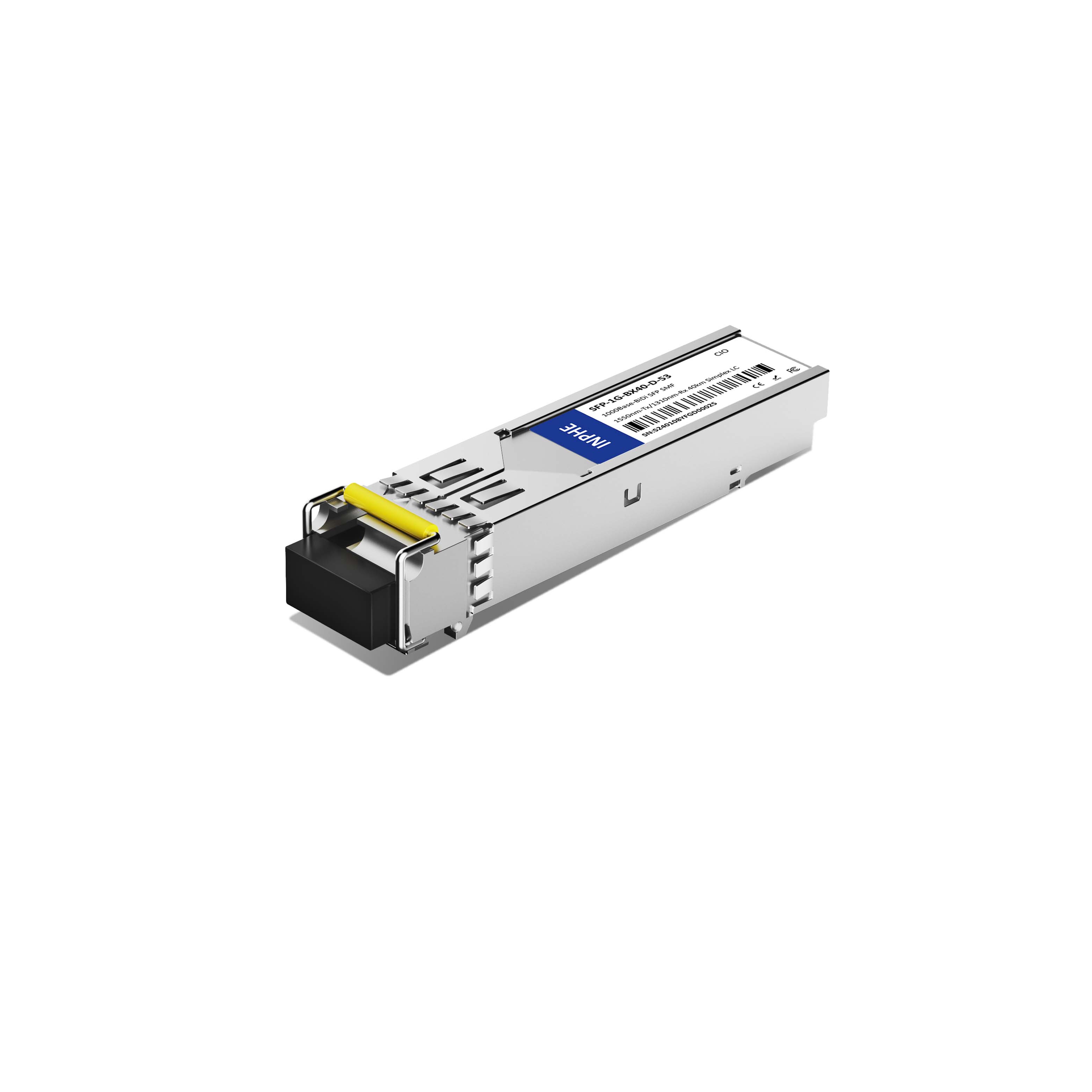

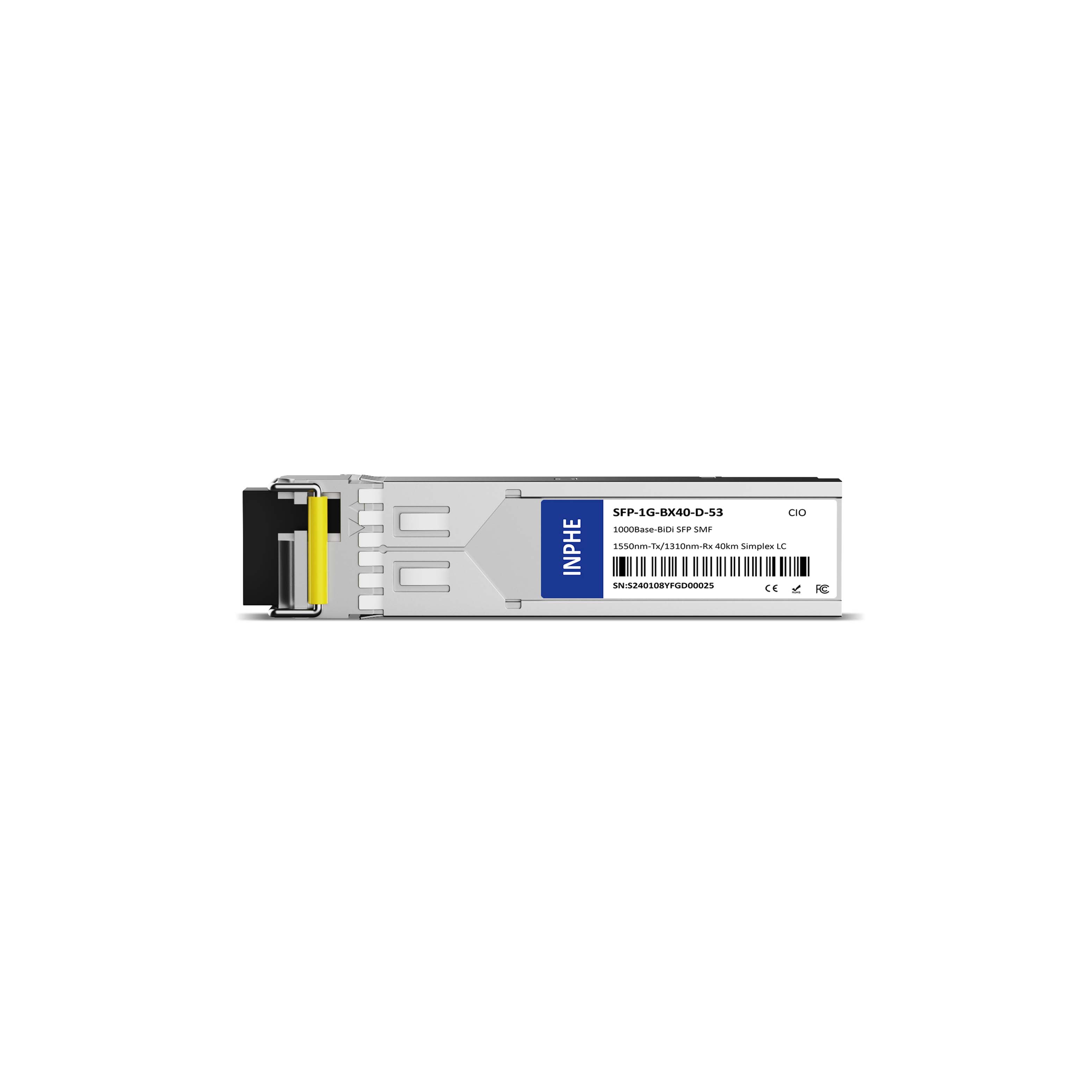

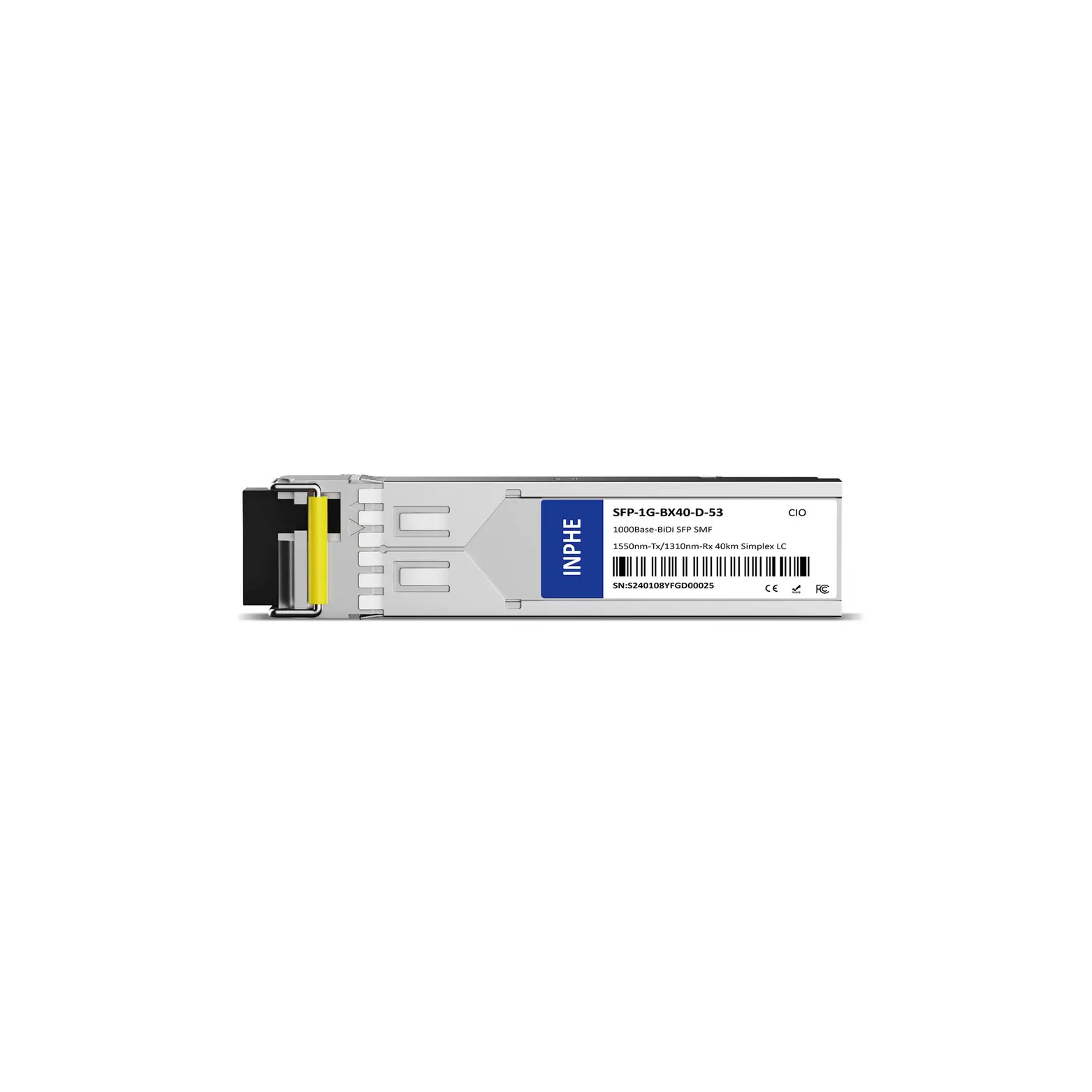

Brocade / Ruckus E1MG-BXD Compatible SFP 1.25GBASE BiDi 1550nm-Tx/1310nm-Rx 40km SMF Simplex LC DDM/DOM Optics Transceiver

Name: Brocade / Ruckus E1MG-BXD Compatible SFP 1.25GBASE BiDi 1550nm-Tx/1310nm-Rx 40km SMF Simplex LC DDM/DOM Optics Transceiver
Brand: INPHE.COM - Optics | Fiber | Networks
SKU: 702002701020
Price: 10.99 USD
Availability: InStock

#702002701020

US$10.99

INPHE: E1MG-BXD

Received successfully

Coupon Code

CONTINUE SHOPPING

Compatible Brands:

Cisco Juniper Brocade Aruba Networks Allied Telesis Advantech ADVA ADTRAN Hirschmann Fortinet FibroLAN More +

Compatible Models:

E1MG-BXD Customized

QTY:

Specifications

Vendor Name	INPHE	Part Number	SFP-1G-BX40D53
Form Factor	SFP	Max Data Rate	1.25Gbps
Wavelength	1550nm-Tx/1310nm-Rx	Max Distance	40km
Connector	Simplex LC	Transmitter Type	DFB
Cable Type	SMF	Receiver Type	PIN
Transmitter Power	-5.0 ~ 0dbm	Receiver Sensitivity	< -24.0dBm
Protocols	Gigabit? Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)
DDM/DOM	Supported	Warranty	3 Years
