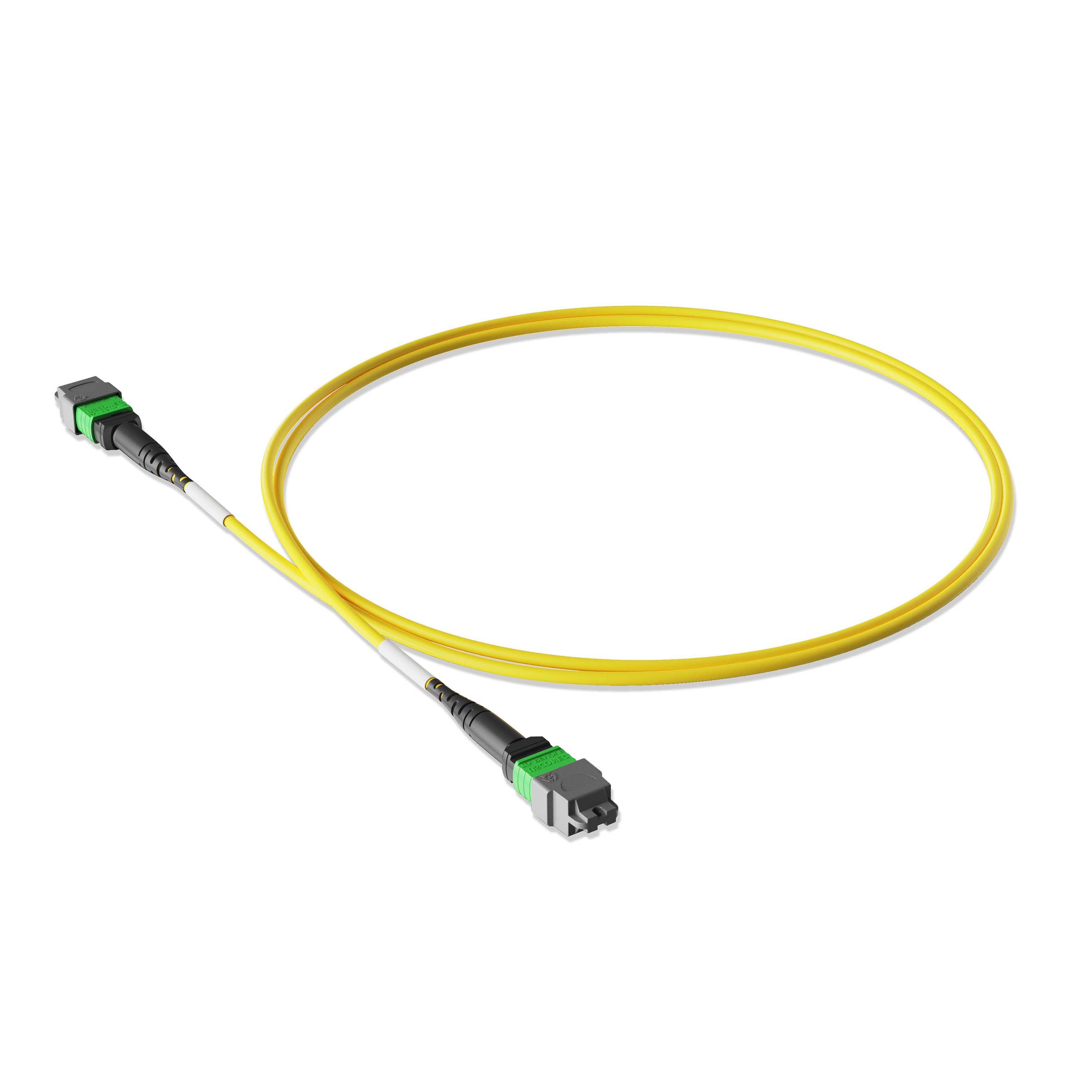

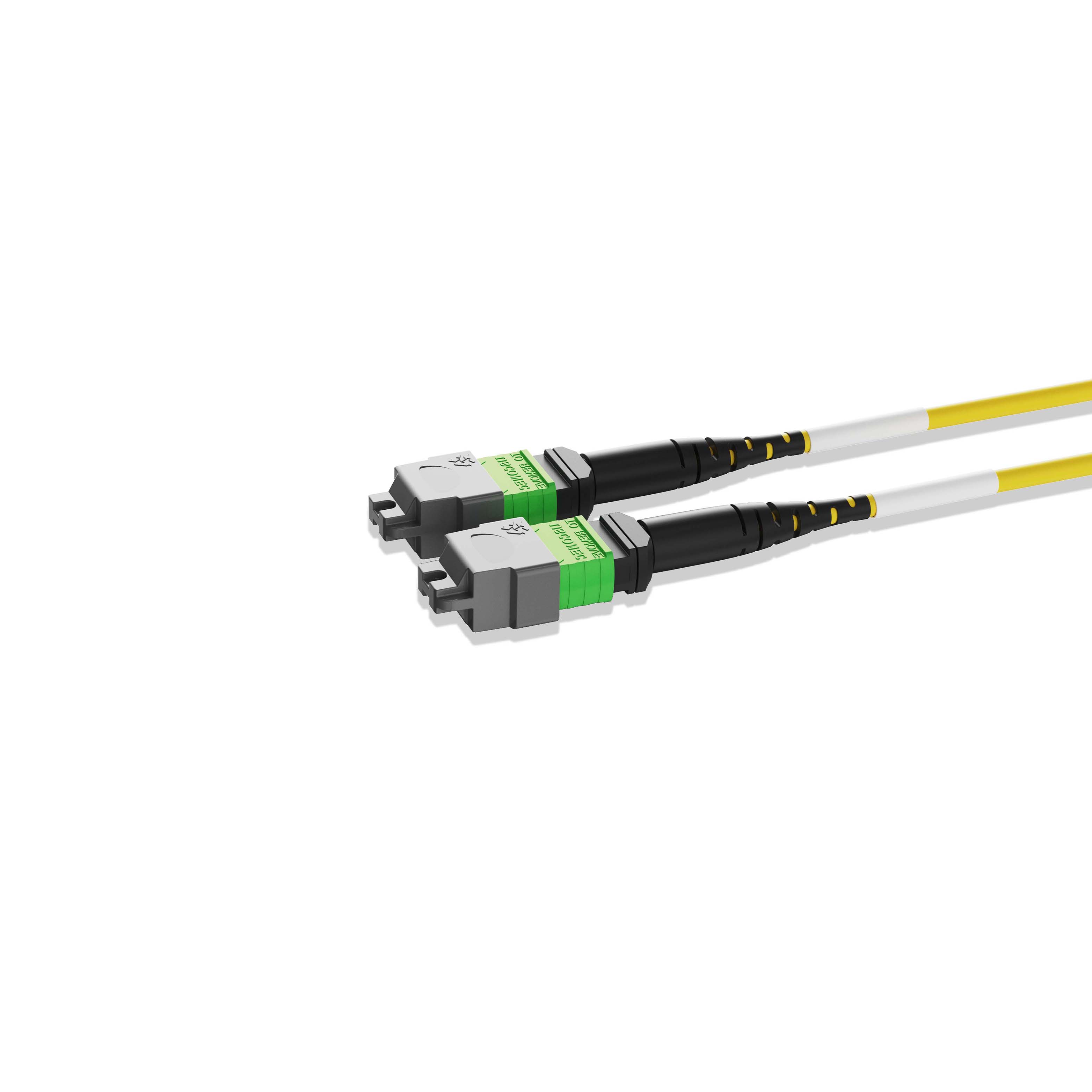

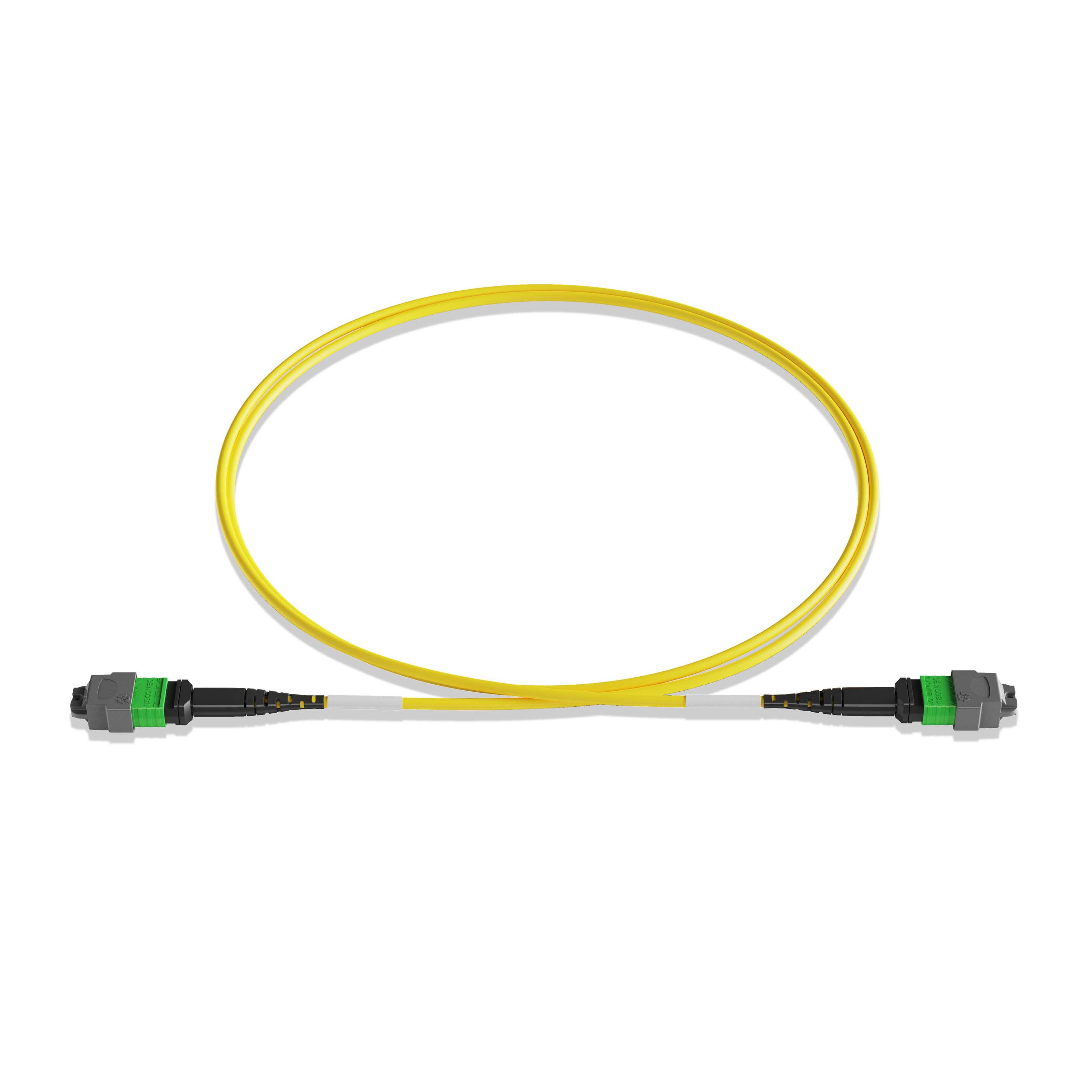

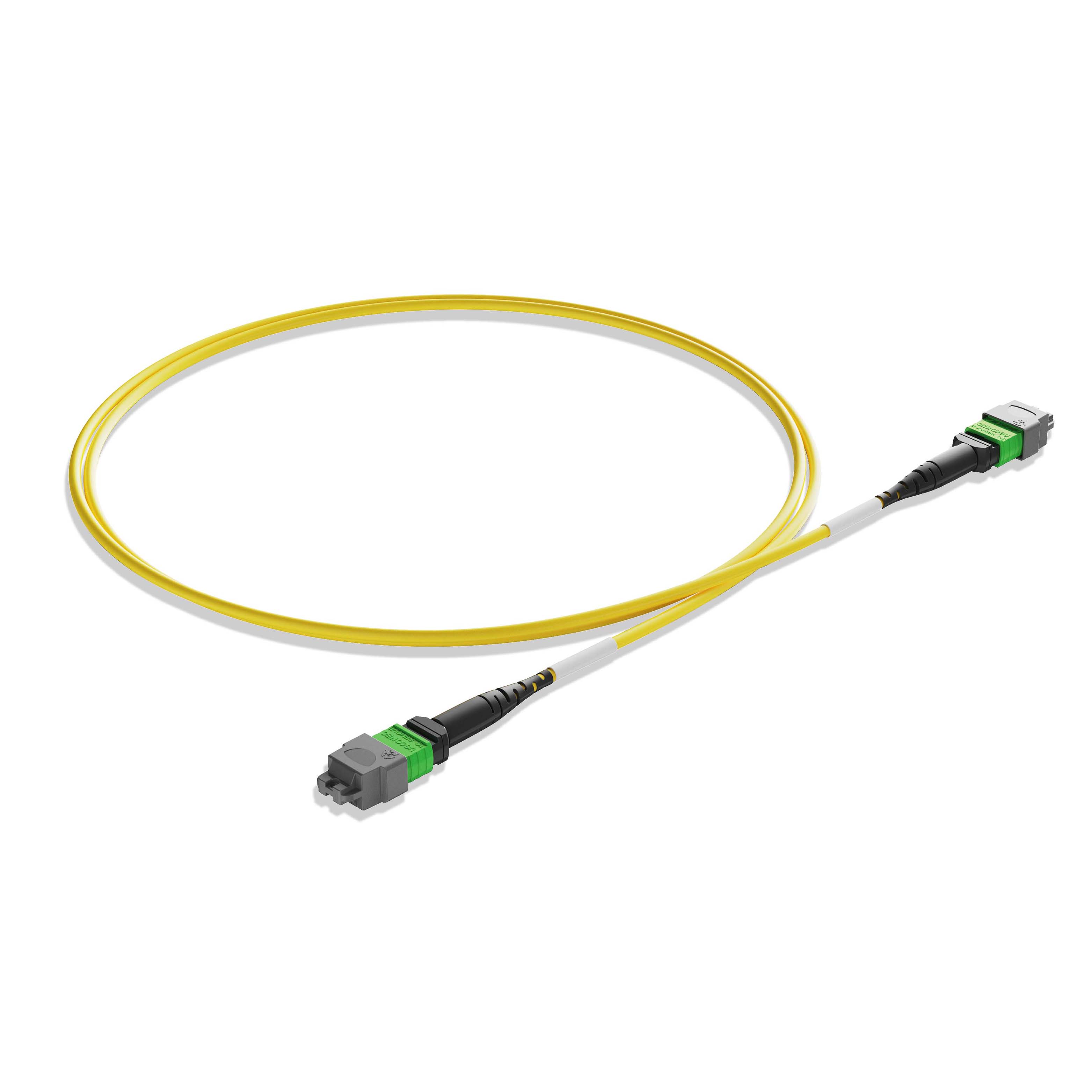

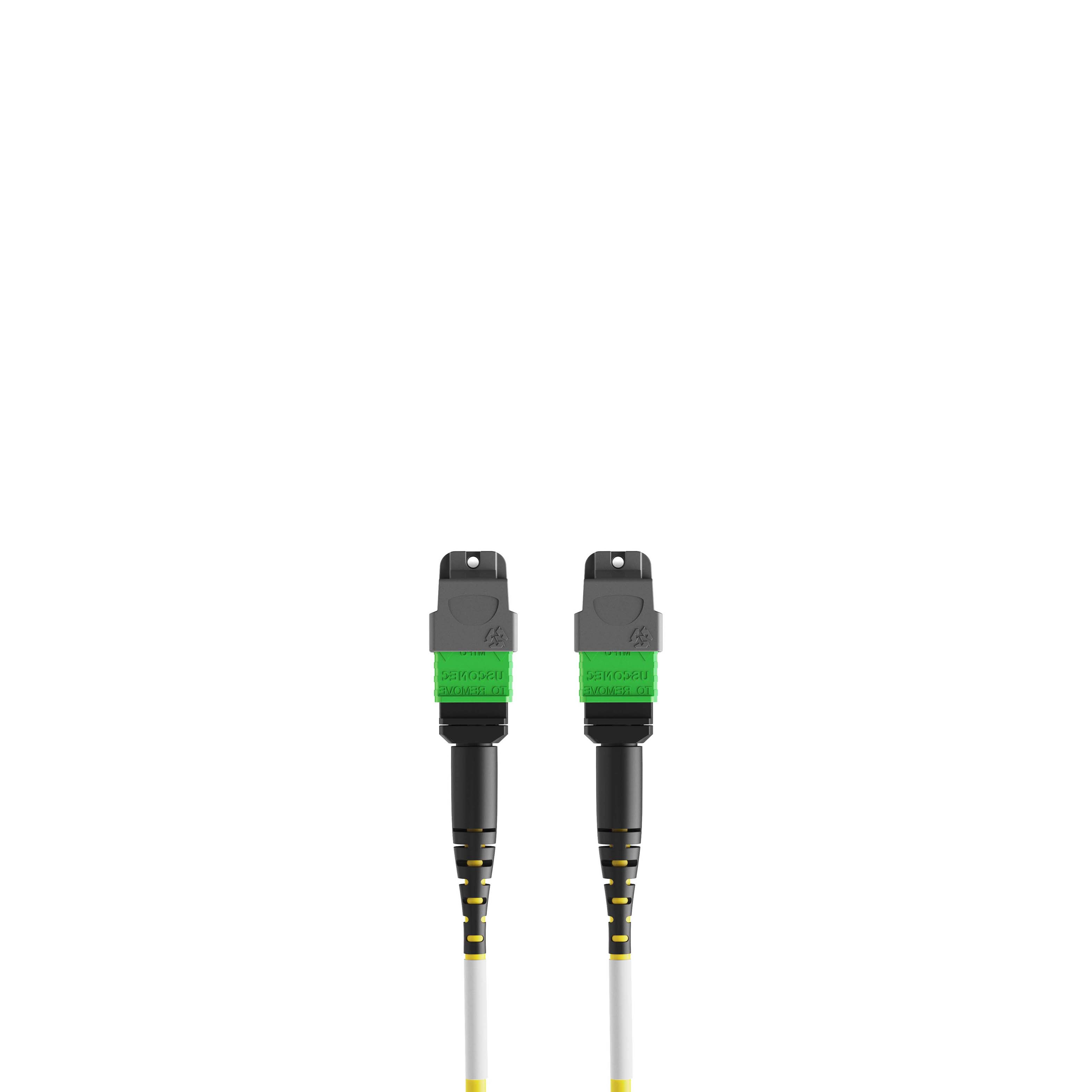

50m 164ft MTP Jumper 12 Fibers MTP-12 APC Female to MTP-12 APC Female Singlemode OS2 Plenum OFNP 0.35dB Max Type A 3.0mm Yellow

Name: 50m 164ft MTP Jumper 12 Fibers MTP-12 APC Female to MTP-12 APC Female Singlemode OS2 Plenum OFNP 0.35dB Max Type A 3.0mm Yellow
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 9152050XXX
Price: 53.99 USD
Availability: InStock

#9152050XXX

US$53.99

INPHE: PA12PASM050AMXX

Received successfully

Coupon Code

CONTINUE SHOPPING

Length:

1m (3ft) 2m (7ft) 3m (10ft) 4m (13ft) 5m (16ft) 7m (23ft) 10m (33ft) 12m (39ft) 15m (49ft) 20m (66ft) 25m (82ft) 30m (98ft) 50m (164ft) Customized

QTY:

Specifications

Connector A	US Conec MTP-12 APC	Connector B	US Conec MTP-12 APC
Fiber Count	12 Fibers	Polarity	Type A
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Cable Jacket	Plenum (OFNP)	Cable Outside Diameter (OD)	3.0mm
Min. Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	500 times	Tensile Strength (Long/Short Term)	80/240N
Insertion Loss	0.35dB Max (0.15dB Typ.)	Return Loss	≥60dB
Attenuation at 1310nm	≤0.32dB/km	Attenuation at 1550nm	≤0.18dB/km
Operating Temperature	-10 to 60°C (14 to 140°F)	Storage Temperature	-10 to 70°C (14 to 158°F)
