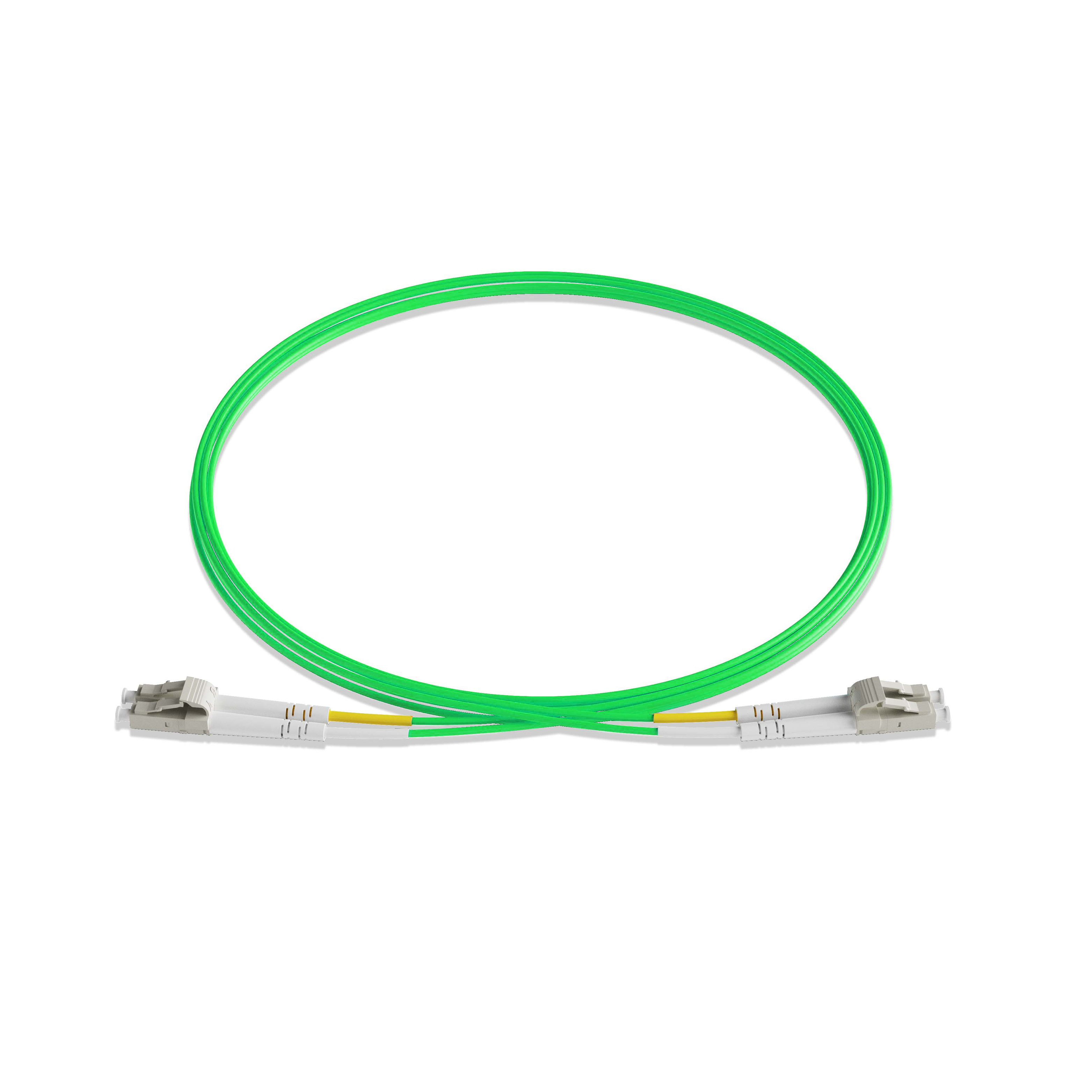

20m 66ft Fiber Patch Cable 2 Fibers LC UPC Duplex to LC UPC Duplex Multimode OM5 Riser OFNR 2.0mm Lime Green

Name: 20m 66ft Fiber Patch Cable 2 Fibers LC UPC Duplex to LC UPC Duplex Multimode OM5 Riser OFNR 2.0mm Lime Green
Brand: INPHE.COM - DCI | HPC | Enterprise Network
SKU: 9105020XXX
Price: 14.99 USD
Availability: InStock

#9105020XXX

US$14.99

INPHE: LCU2LCUMM020M5X

Received successfully

Coupon Code

CONTINUE SHOPPING

Length:

1m (3ft) 2m (7ft) 3m (10ft) 4m (13ft) 5m (16ft) 7m (23ft) 10m (33ft) 12m (39ft) 15m (49ft) 20m (66ft) 25m (82ft) 30m (98ft) 50m (164ft) Customized

QTY:

Specifications

Connector A	LC UPC Duplex	Connector B	LC UPC Duplex
Fiber Count	2 Fibers	Fiber Grade	Bend Insensitive
Fiber Mode	OM5 50/125μm	Wavelength	850/1300nm
Flame Rating	Riser (OFNR)	Cable Outside Diameter (OD)	2.0mm
Min. Bend Radius (Optical Fiber)	7.5mm	Min. Bend Radius (Fiber Cable)	20/10D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength (Long/Short Term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation at 850nm	3.5dB/km	Attenuation at 1300nm	1.5dB/km
Operating Temperature	-10 to 70°C (14 to 158°F)	Storage Temperature	-20 to 70°C (-4 to 158°F)
